RS PRO RF AttenuatorStraight 20 dBMaleFemale
- N° de stock RS:
- 282-3264
- Fabricant:
- RS PRO
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
92,30 €
(TVA exclue)
111,68 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 82 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 92,30 € |
| 10 + | 76,97 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 282-3264
- Fabricant:
- RS PRO
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | RS PRO | |
| Interface Type | SMA Plug to Socket | |
| Product Type | RF Attenuator | |
| Impedance | 50Ω | |
| Maximum Frequency | 18GHz | |
| Body Plating | Passivated Stainless Steel | |
| Contact Plating | Gold | |
| Contact Material | Beryllium Copper Alloy | |
| Low Power | Yes | |
| Connector Type | SMA | |
| Minimum Frequency | 0GHz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Attenuation | 20dB | |
| Orientation | Straight | |
| Maximum Operating Temperature | 85°C | |
| Connector Gender A | Male | |
| Standards/Approvals | CE, RoHS | |
| Connector Gender B | Female | |
| Series | LX | |
| Sélectionner tout | ||
|---|---|---|
Marque RS PRO | ||
Interface Type SMA Plug to Socket | ||
Product Type RF Attenuator | ||
Impedance 50Ω | ||
Maximum Frequency 18GHz | ||
Body Plating Passivated Stainless Steel | ||
Contact Plating Gold | ||
Contact Material Beryllium Copper Alloy | ||
Low Power Yes | ||
Connector Type SMA | ||
Minimum Frequency 0GHz | ||
Minimum Operating Temperature -40°C | ||
Maximum Attenuation 20dB | ||
Orientation Straight | ||
Maximum Operating Temperature 85°C | ||
Connector Gender A Male | ||
Standards/Approvals CE, RoHS | ||
Connector Gender B Female | ||
Series LX | ||
- Pays d'origine :
- CN

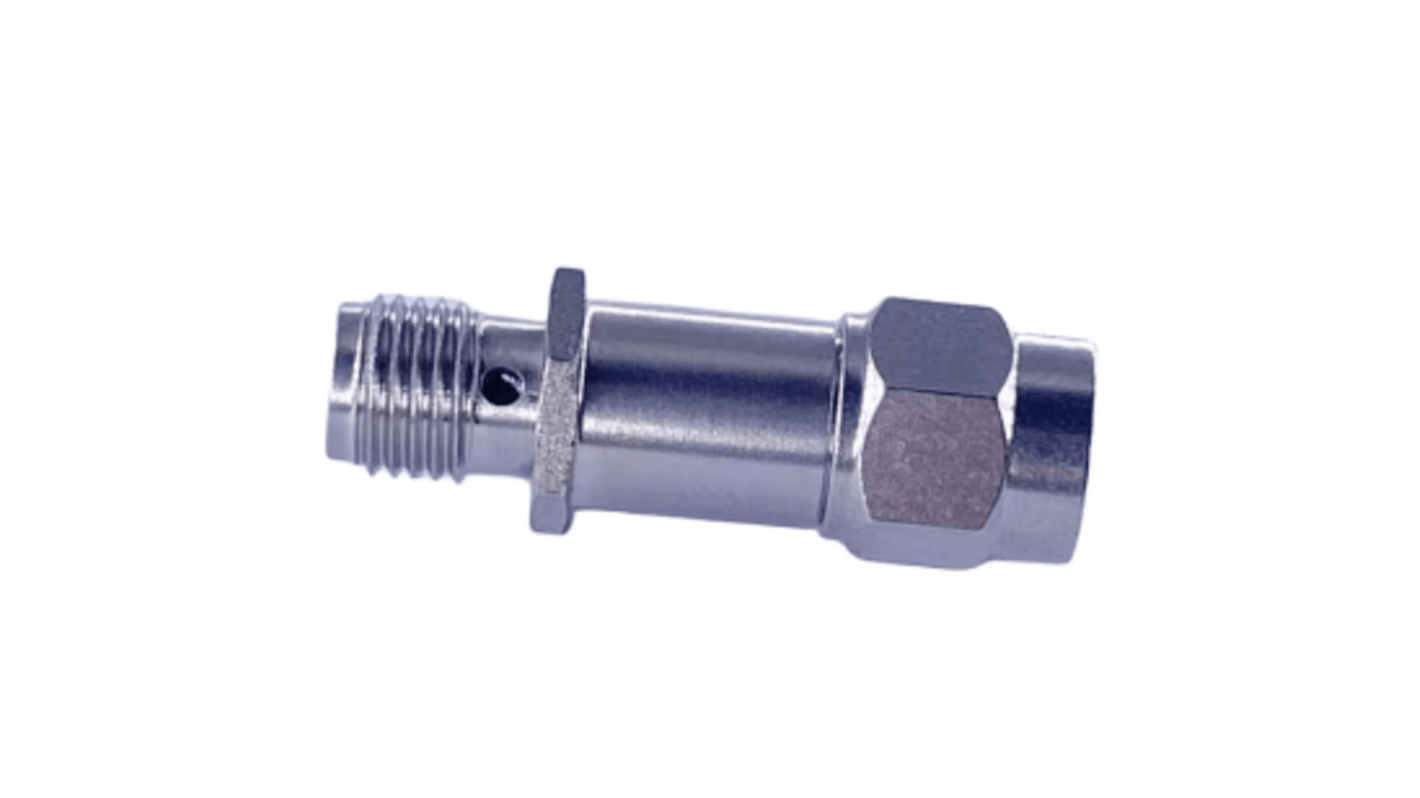

RS PRO 50 Ω Cable Mount SMA Attenuator Connector, 18 GHz
A straight angle cable mount SMA (subminiature version A) RF attenuator connector suitable for use in a wide range of applications including broadcasting systems, test equipment and communication systems. ;The versatile attenuator is well suited for use with cable TV systems for control of output level, amplifier input or branch and designed to enable a fit with a N type connector.;Constructed from hardwearing and corrosion resistant passivated Stainless Steel 303 the SMA connector features PTFE insulation with Gold plated Beryllium Copper contacts for maximum repeated efficiency.
Features and Benefits
20dB RF Attenuator;0 to 18GHz Frequency;2W power;SMA to SMA;Cable mount;Fits with a N connector;Stainless Steel body;Gold plated Copper contacts;25mm in length;Operating temperature range of -40°C to +85°C
Standards and Approvals: IEC61169-15, CE, ROHS
