RS PRO RF AttenuatorStraight 3 dBMaleFemale
- N° de stock RS:
- 282-3257
- Fabricant:
- RS PRO
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
38,54 €
(TVA exclue)
46,63 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 120 unité(s) expédiée(s) à partir du 27 juillet 2026
- Plus 200 unité(s) expédiée(s) à partir du 05 avril 2027
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 38,54 € |
| 10 + | 28,86 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 282-3257
- Fabricant:
- RS PRO
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | RS PRO | |
| Interface Type | SMA Plug to Socket | |
| Product Type | RF Attenuator | |
| Impedance | 50Ω | |
| Maximum Frequency | 3GHz | |
| Body Plating | Nickel | |
| Contact Plating | Gold | |
| Contact Material | Bronze | |
| Connector Type | SMA | |
| Orientation | Straight | |
| Minimum Frequency | 3GHz | |
| Maximum Attenuation | 3dB | |
| Minimum Operating Temperature | -40°C | |
| Connector Gender A | Male | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Series | LX | |
| Connector Gender B | Female | |
| Sélectionner tout | ||
|---|---|---|
Marque RS PRO | ||
Interface Type SMA Plug to Socket | ||
Product Type RF Attenuator | ||
Impedance 50Ω | ||
Maximum Frequency 3GHz | ||
Body Plating Nickel | ||
Contact Plating Gold | ||
Contact Material Bronze | ||
Connector Type SMA | ||
Orientation Straight | ||
Minimum Frequency 3GHz | ||
Maximum Attenuation 3dB | ||
Minimum Operating Temperature -40°C | ||
Connector Gender A Male | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Series LX | ||
Connector Gender B Female | ||
- Pays d'origine :
- CN

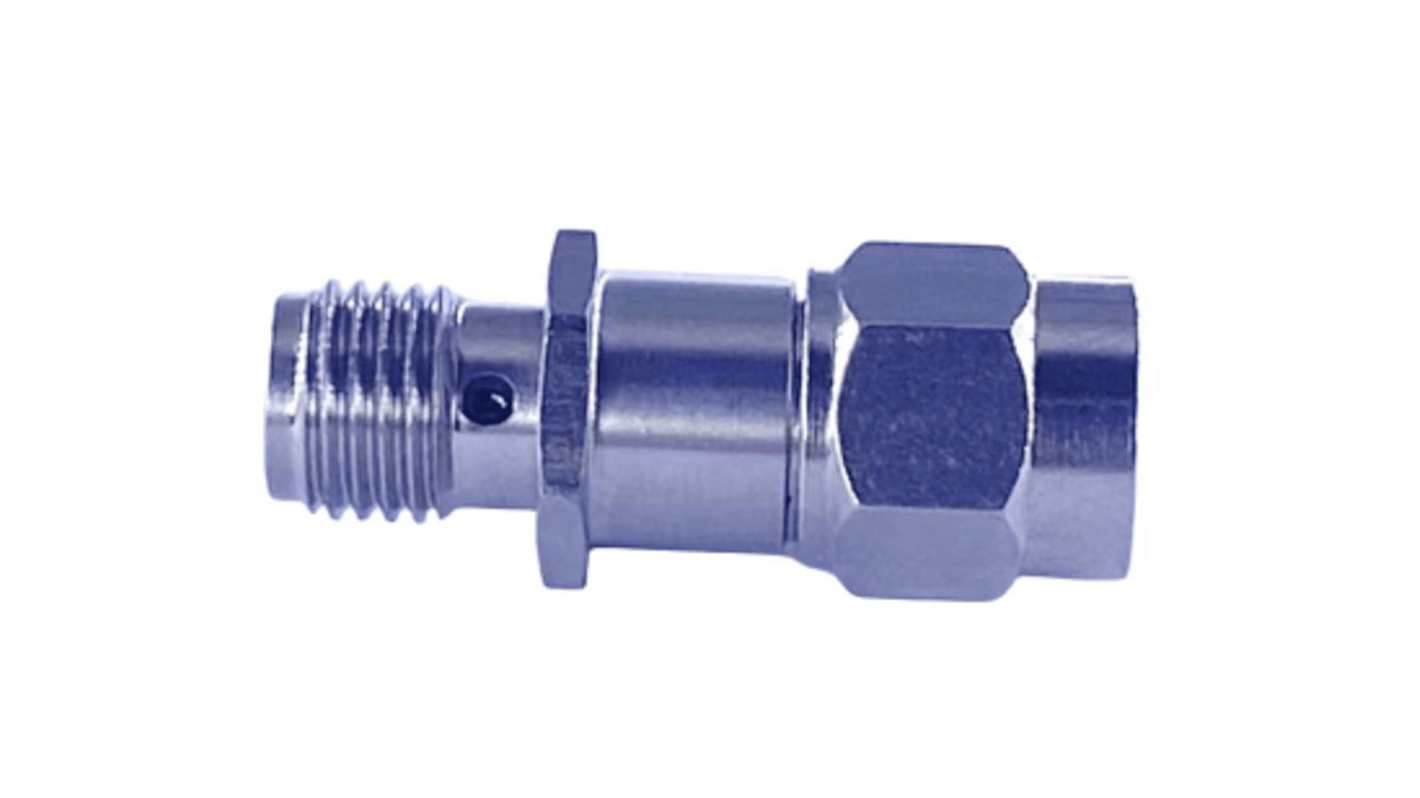

RS PRO 50 Ω Cable Mount SMA Attenuator Connector, 3 GHz
A straight angle cable mount SMA (subminiature version A) RF attenuator connector suitable for use in a wide range of applications including broadcasting systems, test equipment and communication systems. ;The versatile attenuator is well suited for use with cable TV systems for control of output level, amplifier input or branch and designed to enable a fit with a N type connector.;Constructed from hardwearing and corrosion resistant Nickel plated Copper the SMA connector features PTFE insulation with Gold plated Bronze Copper contacts for maximum repeated efficiency.
Features and Benefits
3dB RF Attenuator;0 to 3GHz Frequency;1W power;SMA to SMA;Cable mount;Fits with a N connector;Nickel plated Copper body;Gold plated Bronze Copper contacts;22mm in length;Operating temperature range of -40°C to +85°C
Standards and Approvals: IEC61169-15, CE, ROHS
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
