RS PRO RF AttenuatorStraight 30 dBMaleFemale
- N° de stock RS:
- 282-3254
- Fabricant:
- RS PRO
Offre groupée disponible
Sous-total (1 unité)*
46,40 €
(TVA exclue)
56,14 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- Plus 83 unité(s) expédiée(s) à partir du 23 mars 2026
- Plus 50 unité(s) expédiée(s) à partir du 16 novembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 46,40 € |
| 10 + | 37,76 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 282-3254
- Fabricant:
- RS PRO
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | RS PRO | |
| Interface Type | SMA Plug to Socket | |
| Product Type | RF Attenuator | |
| Impedance | 50Ω | |
| Maximum Frequency | 8GHz | |
| Body Plating | Nickel | |
| Contact Plating | Gold | |
| Contact Material | Bronze | |
| Low Power | Yes | |
| Minimum Operating Temperature | -40°C | |
| Connector Type | SMA | |
| Minimum Frequency | 0Hz | |
| Maximum Attenuation | 30dB | |
| Orientation | Straight | |
| Connector Gender A | Male | |
| Maximum Operating Temperature | 85°C | |
| Series | LX | |
| Connector Gender B | Female | |
| Standards/Approvals | RoHS, CE | |
| Sélectionner tout | ||
|---|---|---|
Marque RS PRO | ||
Interface Type SMA Plug to Socket | ||
Product Type RF Attenuator | ||
Impedance 50Ω | ||
Maximum Frequency 8GHz | ||
Body Plating Nickel | ||
Contact Plating Gold | ||
Contact Material Bronze | ||
Low Power Yes | ||
Minimum Operating Temperature -40°C | ||
Connector Type SMA | ||
Minimum Frequency 0Hz | ||
Maximum Attenuation 30dB | ||
Orientation Straight | ||
Connector Gender A Male | ||
Maximum Operating Temperature 85°C | ||
Series LX | ||
Connector Gender B Female | ||
Standards/Approvals RoHS, CE | ||
- Pays d'origine :
- CN

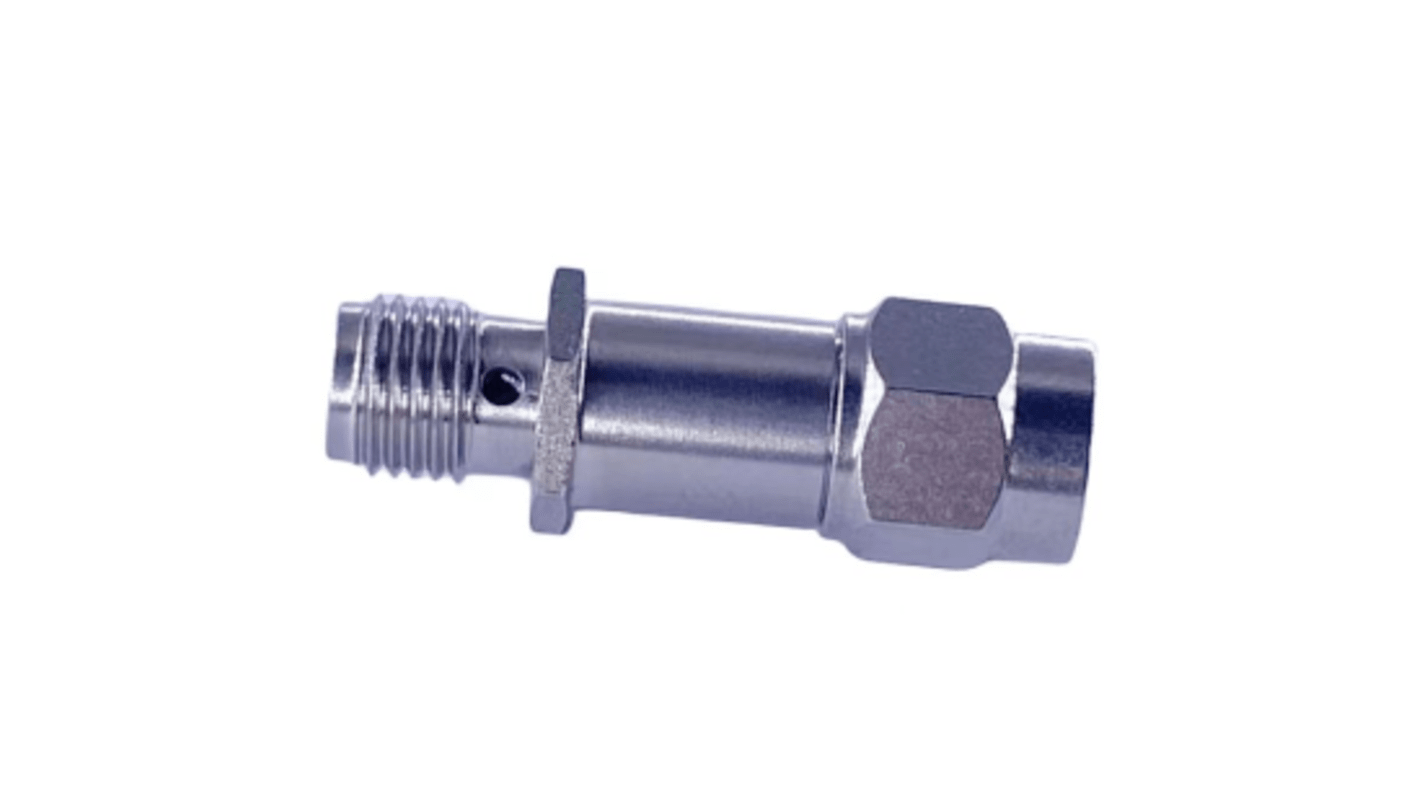

RS PRO 50 Ω Cable Mount SMA Attenuator Connector, 8 GHz
A straight angle cable mount SMA (subminiature version A) RF attenuator connector suitable for use in a wide range of applications including broadcasting systems, test equipment and communication systems.
The versatile attenuator is well suited for use with cable TV systems for control of output level, amplifier input or branch and designed to enable a fit with a N type connector.
Constructed from hardwearing and corrosion resistant Nickel plated Copper the SMA connector features PTFE insulation with Gold plated Bronze Copper contacts for maximum repeated efficiency.
Features and Benefits
30dB RF Attenuator;0 to 8GHz Frequency;2W power;SMA to SMA;Cable mount;Fits with a N connector;Nickel plated Copper body;Gold plated Bronze Copper contacts;25mm in length;Operating temperature range of -40°C to +85°C
Standards and Approvals: IEC61169-15, CE, ROHS
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
