RS PRO RF AttenuatorStraight 2 dBMaleFemale

Voir l’ensemble des RF Attenuators
Offre groupée disponible

Sous-total (1 unité)*

76,51 €

(TVA exclue)

92,58 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • Plus 51 unité(s) expédiée(s) à partir du 02 mars 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 - 976,51 €
10 +64,33 €

*Prix donné à titre indicatif

N° de stock RS:
282-3252
Fabricant:
RS PRO
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

RS PRO

Interface Type

SMA Plug to Socket

Product Type

RF Attenuator

Impedance

50Ω

Maximum Frequency

6GHz

Body Plating

Passivated Stainless Steel

Contact Plating

Gold

Contact Material

Beryllium Copper Alloy

Low Power

Yes

Minimum Operating Temperature

-40°C

Maximum Attenuation

2dB

Connector Type

SMA

Minimum Frequency

0GHz

Orientation

Straight

Connector Gender A

Male

Maximum Operating Temperature

85°C

Standards/Approvals

CE, RoHS

Series

LX

Connector Gender B

Female

Pays d'origine :
CN

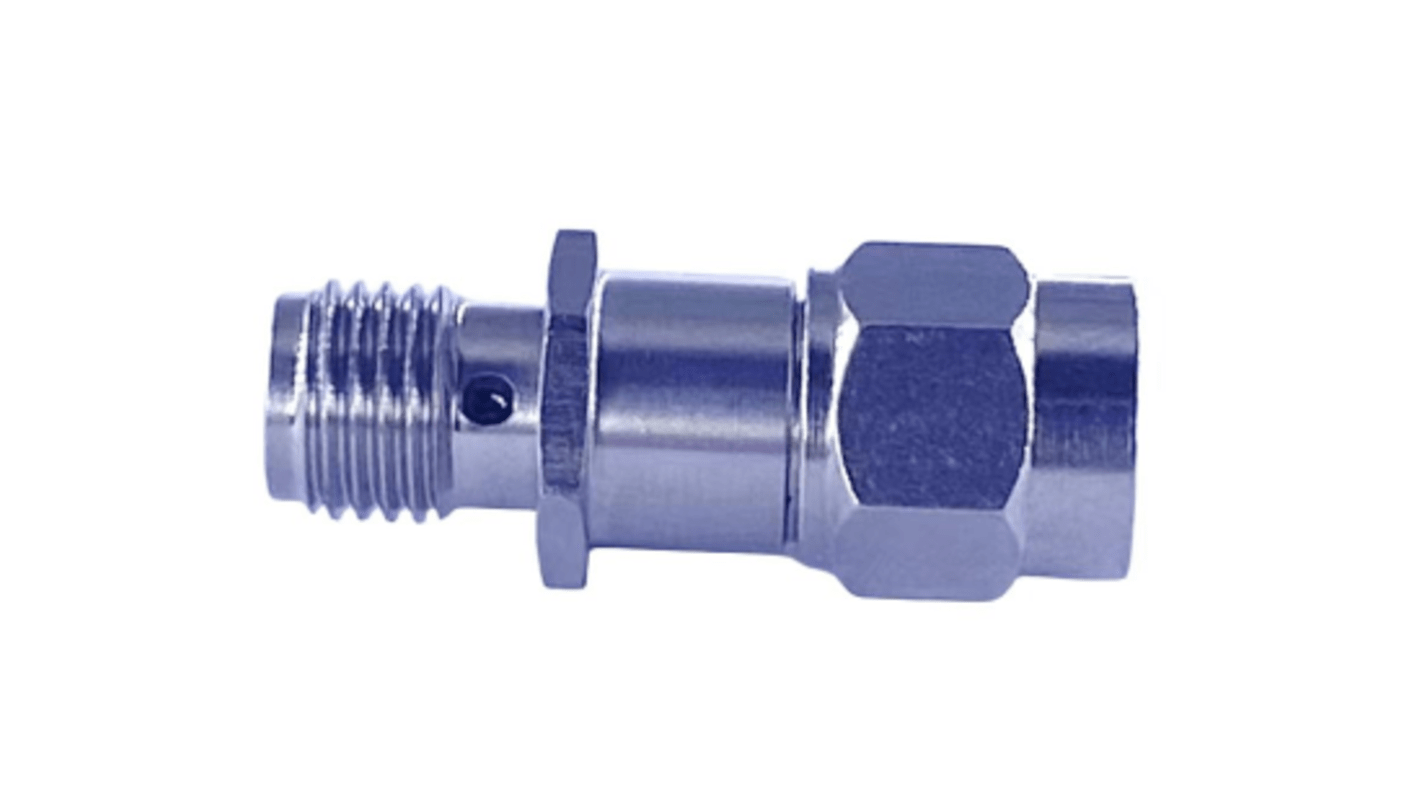

RS PRO 50 Ω Cable Mount SMA Attenuator Connector, 6 GHz


A straight angle cable mount SMA (subminiature version A) RF attenuator connector suitable for use in a wide range of applications including broadcasting systems, test equipment and communication systems. ;The versatile attenuator is well suited for use with cable TV systems for control of output level, amplifier input or branch and designed to enable a fit with a N type connector.;Constructed from hardwearing and corrosion resistant passivated Stainless Steel 303 the SMA connector features PTFE insulation with Gold plated Beryllium Copper contacts for maximum repeated efficiency.

Features and Benefits


2dB RF Attenuator;0 to 6GHz Frequency;2W power;SMA to SMA;Cable mount;Fits with a N connector;Stainless Steel body;Gold plated Copper contacts;22mm in length;Operating temperature range of -40°C to +85°C

Standards and Approvals: IEC61169-15, CE, ROHS
