RS PRO RF AttenuatorStraight 6 dBMaleFemale
- N° de stock RS:
- 282-3262
- Fabricant:
- RS PRO
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
73,63 €
(TVA exclue)
89,09 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- 148 unité(s) expédiée(s) à partir du 16 novembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 73,63 € |
| 10 + | 67,11 € |
*Prix donné à titre indicatif
Produit de remplacement
Ce produit n'est pas disponible actuellement. Voici notre produit de remplacement:
la pièce
103,72 €
(TVA exclue)
125,50 €
(TVA incluse)
- N° de stock RS:
- 282-3262
- Fabricant:
- RS PRO
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | RS PRO | |
| Interface Type | SMA Plug to Socket | |
| Product Type | RF Attenuator | |
| Impedance | 50Ω | |
| Maximum Frequency | 18GHz | |
| Body Plating | Passivated Stainless Steel | |
| Contact Plating | Gold | |
| Contact Material | Beryllium Copper Alloy | |
| Low Power | Yes | |
| Connector Type | SMA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Attenuation | 6dB | |
| Minimum Frequency | 0Hz | |
| Orientation | Straight | |
| Connector Gender A | Male | |
| Maximum Operating Temperature | 85°C | |
| Connector Gender B | Female | |
| Standards/Approvals | RoHS | |
| Series | RS PRO | |
| Sélectionner tout | ||
|---|---|---|
Marque RS PRO | ||
Interface Type SMA Plug to Socket | ||
Product Type RF Attenuator | ||
Impedance 50Ω | ||
Maximum Frequency 18GHz | ||
Body Plating Passivated Stainless Steel | ||
Contact Plating Gold | ||
Contact Material Beryllium Copper Alloy | ||
Low Power Yes | ||
Connector Type SMA | ||
Minimum Operating Temperature -40°C | ||
Maximum Attenuation 6dB | ||
Minimum Frequency 0Hz | ||
Orientation Straight | ||
Connector Gender A Male | ||
Maximum Operating Temperature 85°C | ||
Connector Gender B Female | ||
Standards/Approvals RoHS | ||
Series RS PRO | ||
- Pays d'origine :
- CN

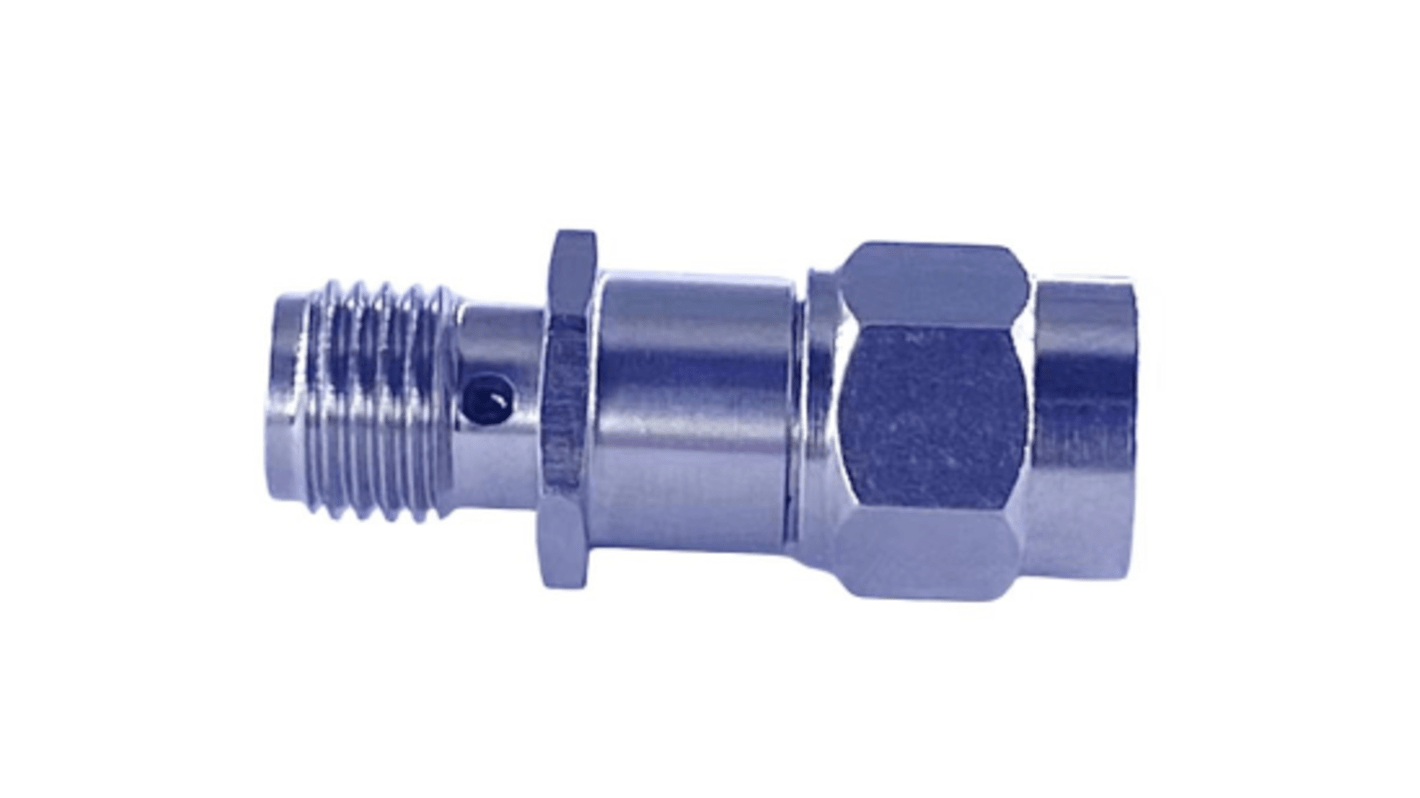

RS PRO 50 Ω Cable Mount SMA Attenuator Connector, 18 GHz
A straight angle cable mount SMA (subminiature version A) RF attenuator connector suitable for use in a wide range of applications including broadcasting systems, test equipment and communication systems. ;The versatile attenuator is well suited for use with cable TV systems for control of output level, amplifier input or branch and designed to enable a fit with a N type connector.;Constructed from hardwearing and corrosion resistant passivated Stainless Steel 303 the SMA connector features PTFE insulation with Gold plated Beryllium Copper contacts for maximum repeated efficiency.
Features and Benefits
6dB RF Attenuator;0 to 18GHz Frequency;2W power;SMA to SMA;Cable mount;Fits with a N connector;Stainless Steel body;Gold plated Copper contacts;22mm in length;Operating temperature range of -40°C to +85°C
Standards and Approvals: IEC61169-15, CE, ROHS
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
