RS PRO RF AttenuatorStraight 1 dBMaleFemale

Voir l’ensemble des RF Attenuators
Offre groupée disponible

Sous-total (1 unité)*

102,04 €

(TVA exclue)

123,47 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
Temporairement en rupture de stock
  • 50 unité(s) expédiée(s) à partir du 06 avril 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 - 9102,04 €
10 +95,75 €

*Prix donné à titre indicatif

N° de stock RS:
282-3249
Fabricant:
RS PRO
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

RS PRO

Product Type

RF Attenuator

Interface Type

SMA Plug to Socket

Impedance

50Ω

Maximum Frequency

18GHz

Body Plating

Passivated Stainless Steel

Contact Plating

Gold

Contact Material

Beryllium Copper Alloy

Low Power

Yes

Minimum Frequency

0GHz

Orientation

Straight

Maximum Attenuation

1dB

Connector Type

SMA

Minimum Operating Temperature

-40°C

Connector Gender A

Male

Maximum Operating Temperature

85°C

Standards/Approvals

CE, RoHS

Series

LX

Connector Gender B

Female

Pays d'origine :
CN

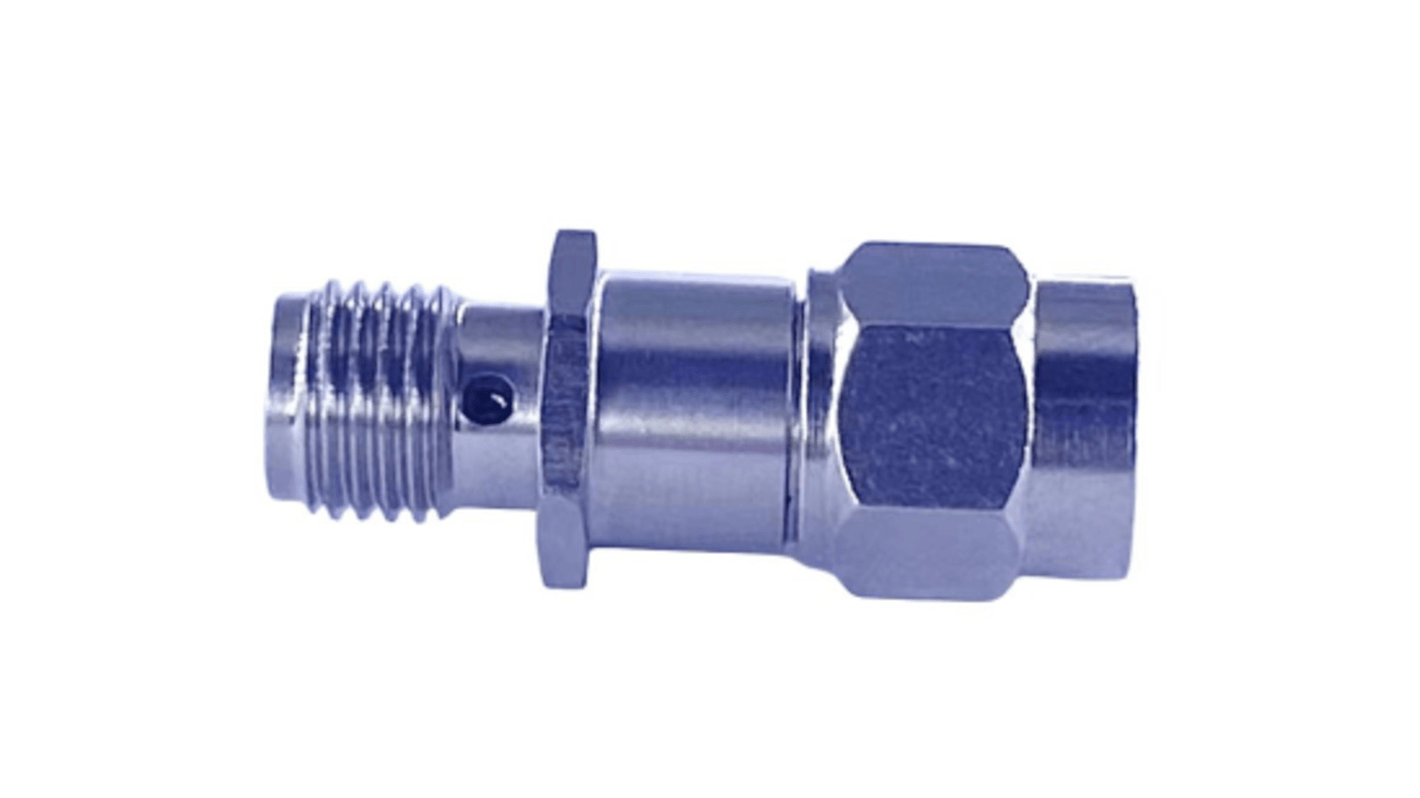

RS PRO 50 Ω Cable Mount SMA Attenuator Connector, 18 GHz


A straight angle cable mount SMA (subminiature version A) RF attenuator connector suitable for use in a wide range of applications including broadcasting systems, test equipment and communication systems. ;The versatile attenuator is well suited for use with cable TV systems for control of output level, amplifier input or branch and designed to enable a fit with a N type connector.;Constructed from hardwearing and corrosion resistant passivated Stainless Steel 303 the SMA connector features PTFE insulation with Gold plated Beryllium Copper contacts for maximum repeated efficiency.

Features and Benefits


1dB RF Attenuator;0 to 18GHz Frequency;2W power;SMA to SMA;Cable mount;Fits with a N connector;Stainless Steel body;Gold plated Copper contacts;22mm in length;Operating temperature range of -40°C to +85°C

Standards and Approvals: IEC61169-15, CE, ROHS
