RS PRO RF AttenuatorStraight 30 dBMaleFemale

Voir l’ensemble des RF Attenuators
Offre groupée disponible

Sous-total (1 unité)*

76,51 €

(TVA exclue)

92,58 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
Informations sur le stock actuellement non accessibles - Veuillez vérifier plus tard
Unité
Prix par unité
1 - 976,51 €
10 +64,33 €

*Prix donné à titre indicatif

N° de stock RS:
282-3250
Fabricant:
RS PRO
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

RS PRO

Interface Type

SMA Plug to Socket

Product Type

RF Attenuator

Impedance

50Ω

Maximum Frequency

6GHz

Body Plating

Passivated Stainless Steel

Contact Plating

Gold

Contact Material

Beryllium Copper Alloy

Low Power

Yes

Minimum Frequency

0GHz

Maximum Attenuation

30dB

Minimum Operating Temperature

-40°C

Orientation

Straight

Connector Type

SMA

Maximum Operating Temperature

85°C

Connector Gender A

Male

Series

LX

Standards/Approvals

CE, RoHS

Connector Gender B

Female

Pays d'origine :
CN

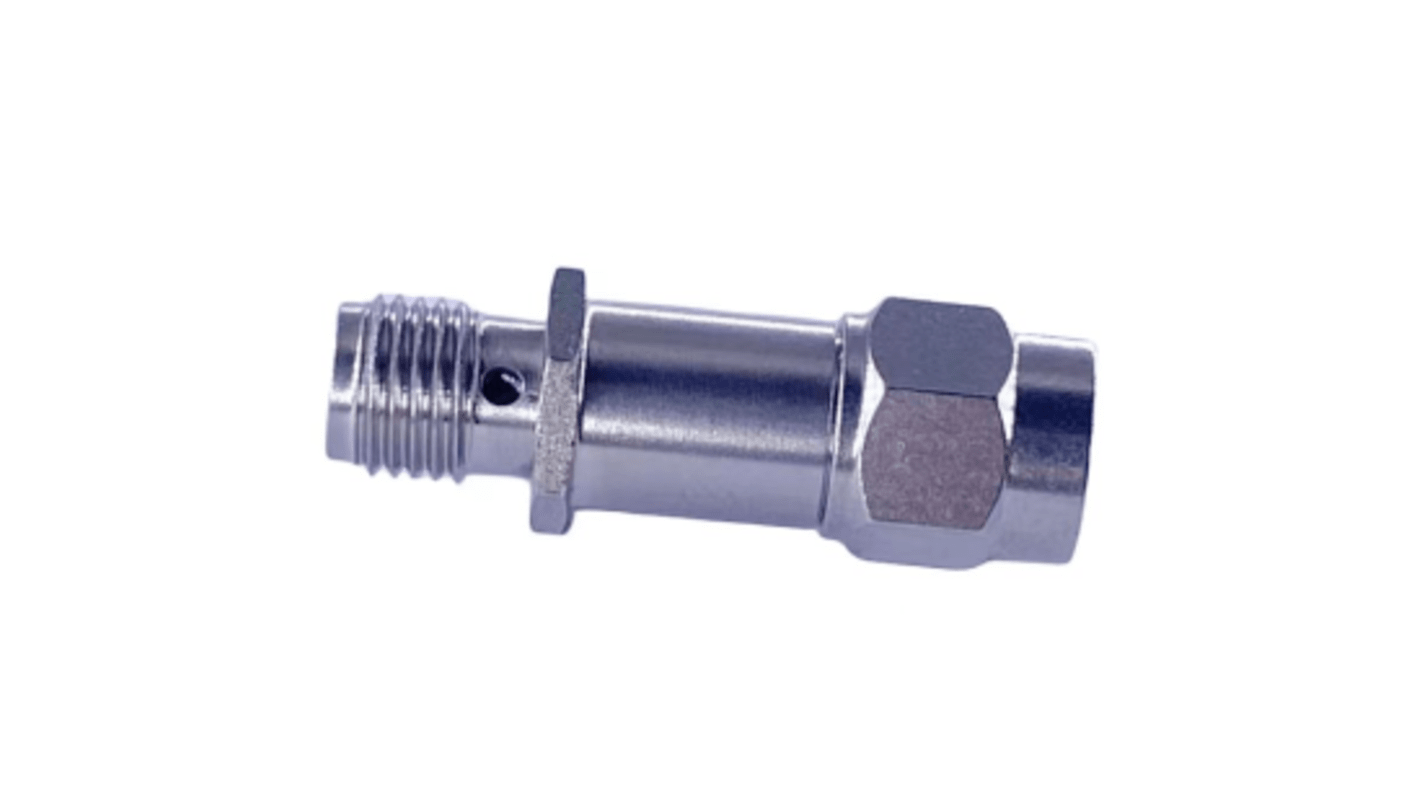

RS PRO 50 Ω Cable Mount SMA Attenuator Connector, 6 GHz


A straight angle cable mount SMA (subminiature version A) RF attenuator connector suitable for use in a wide range of applications including broadcasting systems, test equipment and communication systems. ;The versatile attenuator is well suited for use with cable TV systems for control of output level, amplifier input or branch and designed to enable a fit with a N type connector.;Constructed from hardwearing and corrosion resistant passivated Stainless Steel 303 the SMA connector features PTFE insulation with Gold plated Beryllium Copper contacts for maximum repeated efficiency.

Features and Benefits


30dB RF Attenuator;0 to 6GHz Frequency;2W power;SMA to SMA;Cable mount;Fits with a N connector;Stainless Steel body;Gold plated Copper contacts;25mm in length;Operating temperature range of -40°C to +85°C

Standards and Approvals: IEC61169-15, CE, ROHS
