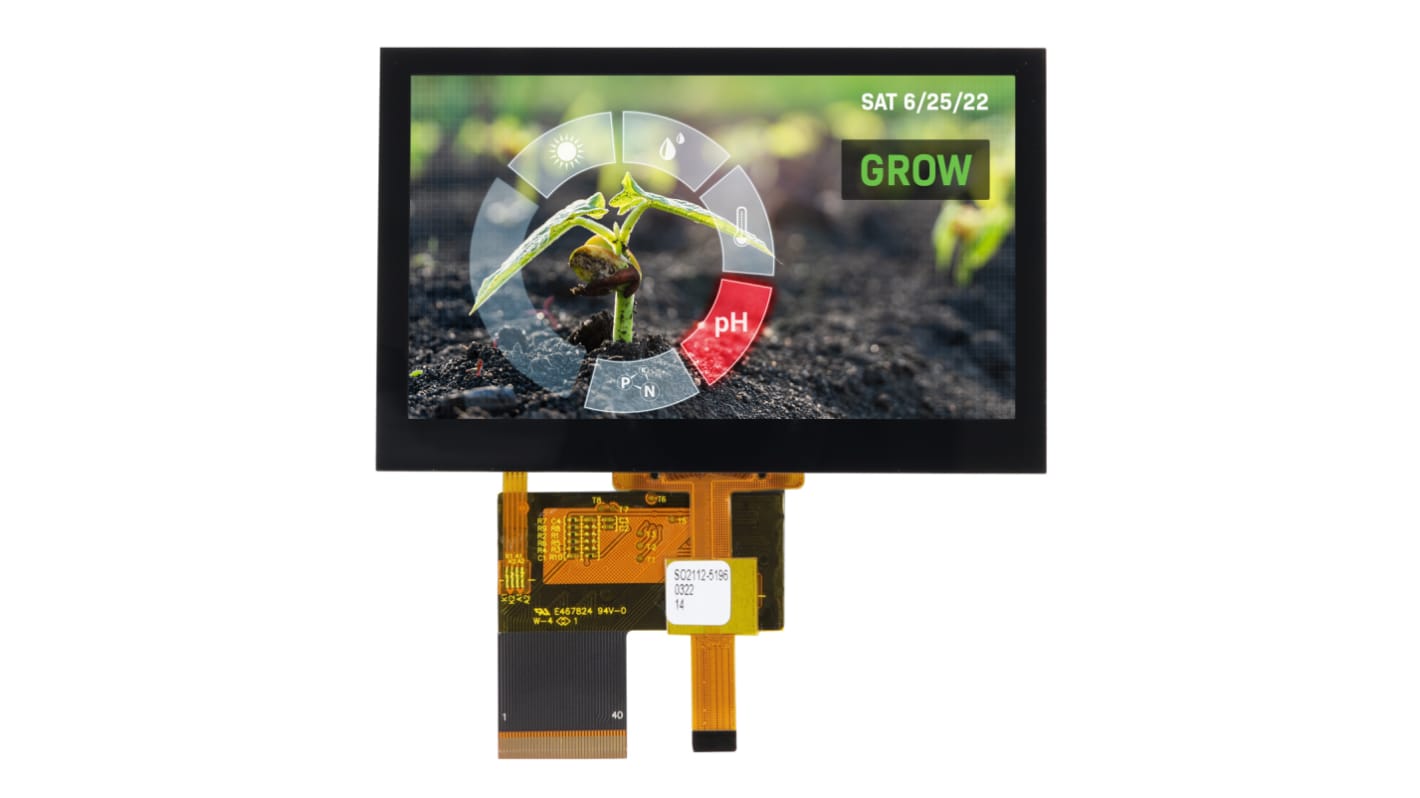

NEWHAVEN DISPLAY INTERNATIONAL NHD-4.3-480272EF-ASXP-CTP IPS TFT LCD Colour Display / Touch Screen, 4.3in, 480 x
- N° de stock RS:
- 262-4113
- Référence fabricant:
- NHD-4.3-480272EF-ASXP-CTP
- Fabricant:
- NEWHAVEN DISPLAY INTERNATIONAL
Offre groupée disponible
Sous-total (1 unité)*
68,56 €
(TVA exclue)
82,96 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 137 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 68,56 € |
| 5 + | 66,85 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 262-4113
- Référence fabricant:
- NHD-4.3-480272EF-ASXP-CTP
- Fabricant:
- NEWHAVEN DISPLAY INTERNATIONAL
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | NEWHAVEN DISPLAY INTERNATIONAL | |
| Diagonal Display Size | 4.3in | |
| Interface Type | RGB | |
| Resolution | 480 x 272pixels | |
| Touch Screen | Yes | |
| Viewing Area Dimensions | 98.7 x 56.2mm | |
| Touch Screen Type | Capacitive | |
| Supply Voltage | 3.3 V | |
| Backlight Type | LED | |
| Display Mode | Transmissive | |
| AC or DC Input Voltage | dc | |
| Dimensions | 105.5 x 67.2 x 4.65mm | |
| Display Matrix Technology | IPS TFT | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +70°C | |
| Brightness | 1000cd/m² | |
| Operating Temperature Range | -20 → 70°C | |
| Voltage Rating | 3.3V | |
| Power Supply Included | No | |
| Height | 4.65mm | |
| Width | 67.2mm | |
| Series | NHD | |
| Display Type | TFT | |
| Viewing Area Width | 56.2mm | |
| Sélectionner tout | ||
|---|---|---|
Marque NEWHAVEN DISPLAY INTERNATIONAL | ||
Diagonal Display Size 4.3in | ||
Interface Type RGB | ||
Resolution 480 x 272pixels | ||
Touch Screen Yes | ||
Viewing Area Dimensions 98.7 x 56.2mm | ||
Touch Screen Type Capacitive | ||
Supply Voltage 3.3 V | ||
Backlight Type LED | ||
Display Mode Transmissive | ||
AC or DC Input Voltage dc | ||
Dimensions 105.5 x 67.2 x 4.65mm | ||
Display Matrix Technology IPS TFT | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +70°C | ||
Brightness 1000cd/m² | ||
Operating Temperature Range -20 → 70°C | ||
Voltage Rating 3.3V | ||
Power Supply Included No | ||
Height 4.65mm | ||
Width 67.2mm | ||
Series NHD | ||
Display Type TFT | ||
Viewing Area Width 56.2mm | ||
- Pays d'origine :
- CN
The NEWHAVEN DISPLAY INTERNATIONAL LCD display is a 480 x 272 pixel resolution IPS TFT display. The IPS technology delivers sunlight readable image quality with higher brightness, better color reproduction, image consistency and optical characteristics at any angle. This 24 bit true color liquid crystal display includes better FPC design with EMI shielding on the cable.
Built in SC7283 IC driver
Five point multi touch capacitive touch panel
Connection type is 40 pin FFC
3M brightness enhancement film
Five point multi touch capacitive touch panel
Connection type is 40 pin FFC
3M brightness enhancement film
