RS PRO 50Ω RF Attenuator Straight SMA Connector SMA Plug to Socket 10dB, Operating Frequency 6GHz

Voir l’ensemble des RF Attenuators
Offre groupée disponible

Sous-total (1 unité)*

76,51 €

(TVA exclue)

92,58 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • 48 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 - 976,51 €
10 +64,33 €

*Prix donné à titre indicatif

N° de stock RS:
282-3248
Fabricant:
RS PRO
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

RS PRO

Interface Type

SMA Plug to Socket

Attenuation

10dB

Body Orientation

Straight

Impedance

50Ω

Operating Frequency

6GHz

Body Plating

Passivated Stainless Steel

Cable Type

Coaxial

Contact Plating

Gold

Contact Material

Beryllium Copper

Connector Type

SMA

Gender A

Male

Gender B

Female

Pays d'origine :
CN

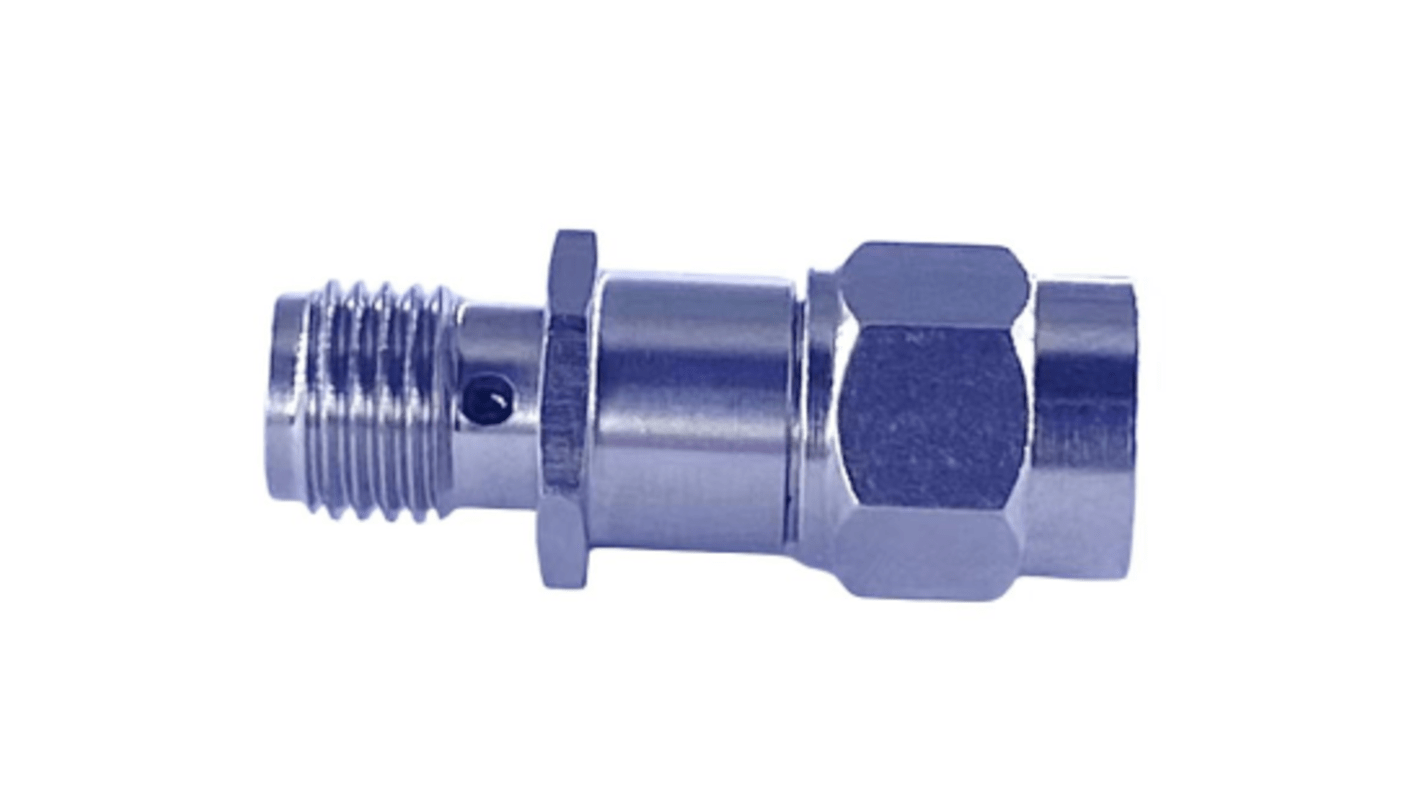

RS PRO 50 Ω Cable Mount SMA Attenuator Connector, 6 GHz


A straight angle cable mount SMA (subminiature version A) RF attenuator connector suitable for use in a wide range of applications including broadcasting systems, test equipment and communication systems.

The versatile attenuator is well suited for use with cable TV systems for control of output level, amplifier input or branch and designed to enable a fit with a N type connector.

Constructed from hardwearing and corrosion resistant passivated Stainless Steel 303 the SMA connector features PTFE insulation with Gold plated Beryllium Copper contacts for maximum repeated efficiency.

Features and Benefits


10dB RF Attenuator

0 to 6GHz Frequency

2W power

SMA to SMA

Cable mount

Fits with a N connector

Stainless Steel body

Gold plated Copper contacts

22mm in length

Operating temperature range of -40°C to +85°C

Standards and Approvals: IEC61169-15, CE, ROHS

Why RS PRO?


RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
