Honeywell Differential Pressure SensorSurface 6 SMT
- N° de stock RS:
- 214-1425
- Numéro d'article Distrelec:
- 301-59-405
- Référence fabricant:
- ABPMRRV015PDAA5
- Fabricant:
- Honeywell
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
43,03 €
(TVA exclue)
52,07 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 52 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 43,03 € |
| 10 - 24 | 35,84 € |
| 25 + | 33,09 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 214-1425
- Numéro d'article Distrelec:
- 301-59-405
- Référence fabricant:
- ABPMRRV015PDAA5
- Fabricant:
- Honeywell
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Honeywell | |
| Sensor Type | Differential Pressure Sensor | |
| Product Type | Differential Pressure Sensor | |
| Maximum Overload Pressure | 250psi | |
| Mount Type | Surface | |
| Package Type | SMT | |
| Pin Count | 6 | |
| Minimum Supply Voltage | -0.3V | |
| Maximum Operating Pressure | 15 psi | |
| Accuracy | ±0.25 % | |
| Maximum Supply Voltage | 5V | |
| Port Type | Dual Radial Barbed | |
| Maximum Operating Temperature | 85°C | |
| Series | ABP | |
| Standards/Approvals | RoHS | |
| Height | 10.63mm | |
| Length | 7.3mm | |
| Minimum Operating Pressure | -15psi | |
| Minimum Operating Temperature | -40°C | |
| Automotive Standard | No | |
| Sélectionner tout | ||
|---|---|---|
Marque Honeywell | ||
Sensor Type Differential Pressure Sensor | ||
Product Type Differential Pressure Sensor | ||
Maximum Overload Pressure 250psi | ||
Mount Type Surface | ||
Package Type SMT | ||
Pin Count 6 | ||
Minimum Supply Voltage -0.3V | ||
Maximum Operating Pressure 15 psi | ||
Accuracy ±0.25 % | ||
Maximum Supply Voltage 5V | ||
Port Type Dual Radial Barbed | ||
Maximum Operating Temperature 85°C | ||
Series ABP | ||
Standards/Approvals RoHS | ||
Height 10.63mm | ||
Length 7.3mm | ||
Minimum Operating Pressure -15psi | ||
Minimum Operating Temperature -40°C | ||
Automotive Standard No | ||

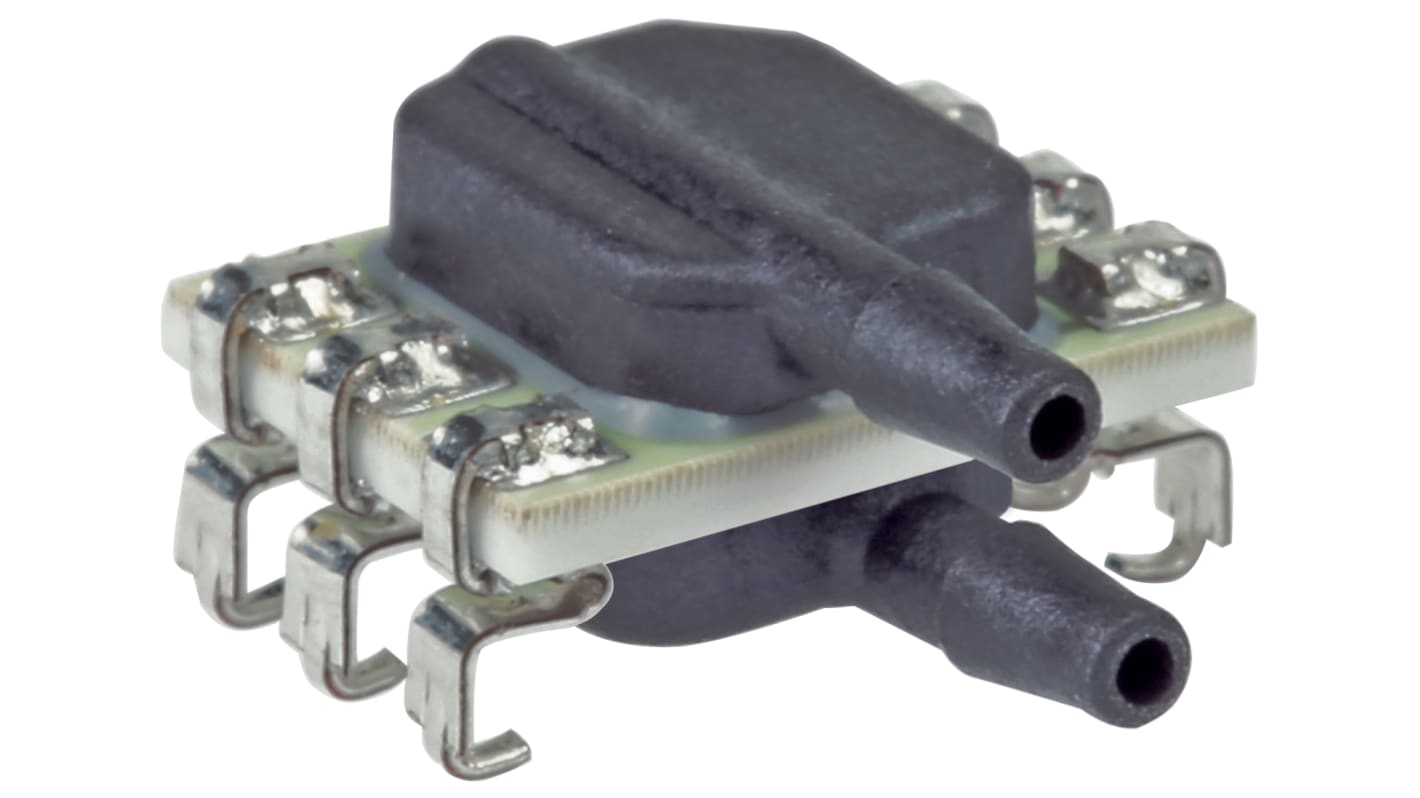

The Honeywell ABP Series Amplified Basic Pressure Sensor, with SMT package, RR pressure port and 15 psi differential pressure range, is a piezoresistive silicon pressure sensors offering analog output type.
REACH and RoHS compliant.
Sensor materials have been tested and certified for these food safety standards:
- NSF-169
- BPA Free
- LFGB
