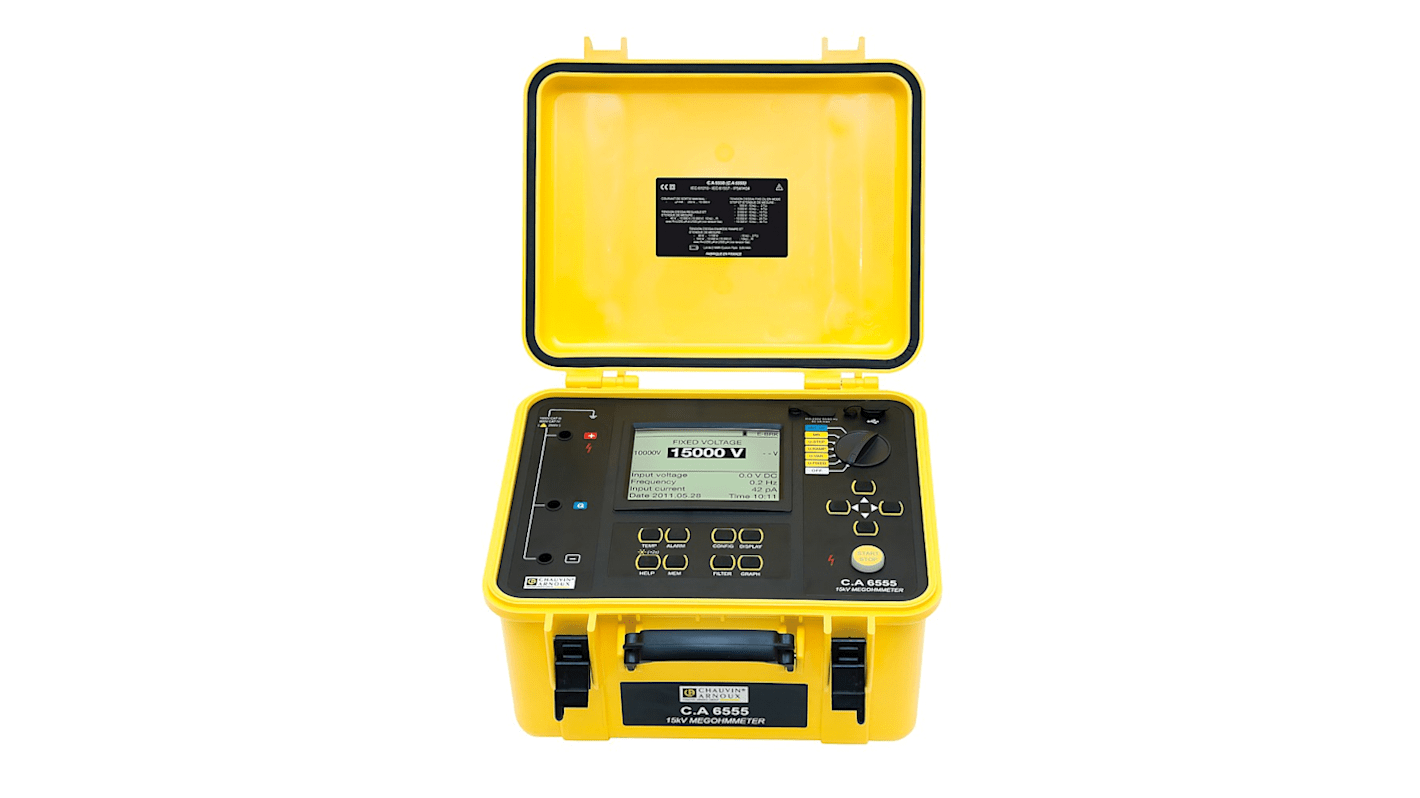

Chauvin Arnoux CA 6555 Insulation Tester, 40 V Min, 15000 V Max CAT IV
- N° de stock RS:
- 237-2906
- Référence fabricant:
- P01139716
- Fabricant:
- Chauvin Arnoux
Sous-total (1 unité)*
6 851,84 €
(TVA exclue)
8 290,73 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Stock limité
- 2 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 6 851,84 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 237-2906
- Référence fabricant:
- P01139716
- Fabricant:
- Chauvin Arnoux
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Chauvin Arnoux | |
| Product Type | Insulation Tester | |
| Model Number | CA 6555 | |
| Tester Type | Insulation Tester | |
| Minimum Test Voltage | 40V | |
| Maximum Test Voltage | 15000V | |
| Display Type | Graphic Display | |
| Test Current | 1mA | |
| Power Source | Mains, Battery | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 30°C | |
| Safety Category Level | CAT IV | |
| Safety Category Voltage | 1000V | |
| Standards/Approvals | BS EN 61010031, IEC/EN 610102030, BS EN 610102030, IEC/EN 61010031 | |
| Sélectionner tout | ||
|---|---|---|
Marque Chauvin Arnoux | ||
Product Type Insulation Tester | ||
Model Number CA 6555 | ||
Tester Type Insulation Tester | ||
Minimum Test Voltage 40V | ||
Maximum Test Voltage 15000V | ||
Display Type Graphic Display | ||
Test Current 1mA | ||
Power Source Mains, Battery | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 30°C | ||
Safety Category Level CAT IV | ||
Safety Category Voltage 1000V | ||
Standards/Approvals BS EN 61010031, IEC/EN 610102030, BS EN 610102030, IEC/EN 61010031 | ||
- Pays d'origine :
- FR
The Chauvin Arnoux CA 6550 and CA 6555 megohmmeter are tools of excellence to perform insulation checks with safety and precision. Their use on equipment and rotating machines, operating at 12 kV and above, complies with recommended practices. The multiple test modes allow both qualitatively qualifying non-control isolations. Also it investigate the problems on samples of insulation aging for the purpose of preventive maintenance.
Measuring range from 10 kΩ to 30 TΩ
Fixed or programmable test voltage from 40 V to 10/15 kV
5 mA load current
Real-time graphic display R (t) + u (t), i (t), i (u)
DAR / PI / DD / ΔR ratios (ppm / V)
Ramp and voltage step modes with burning mode,
"Early break" and "I-limit"
3 filters to optimize measurement stability
Calculation of R at a reference temperature
Memory capacity 80,000 measurements and Real time clock
Report generation via DataView software
