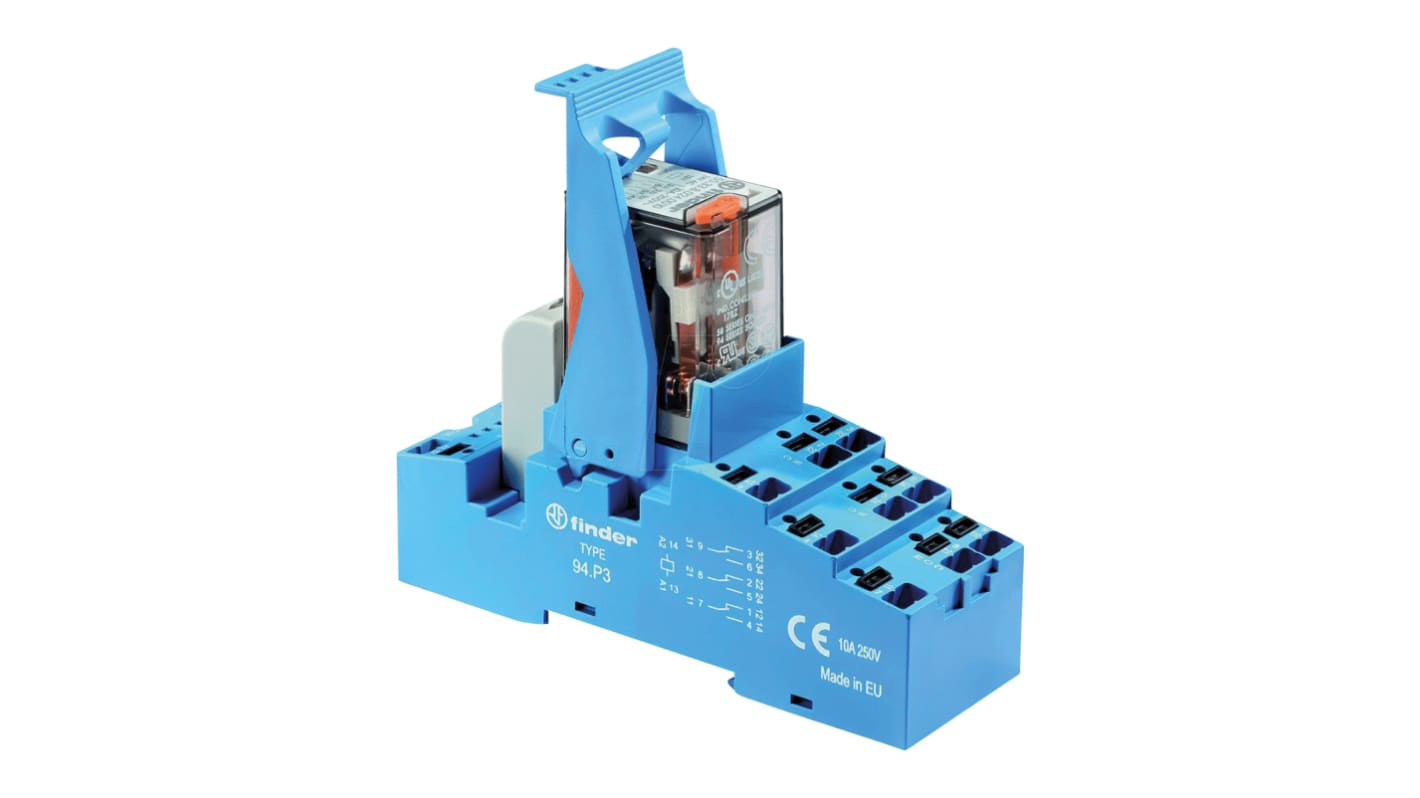

Finder 58 Series Interface Relay, DIN Rail Mount, 12V ac Coil, 3PDT, 3-Pole, 10A Load
- N° de stock RS:
- 123-2839
- Référence fabricant:
- 58.P3.8.012.0060SMA
- Fabricant:
- Finder
Sous-total (1 unité)*
28,88 €
(TVA exclue)
34,94 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
- 1 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Unité | Prix par unité |
|---|---|
| 1 + | 28,88 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 123-2839
- Référence fabricant:
- 58.P3.8.012.0060SMA
- Fabricant:
- Finder
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Finder | |
| Coil Voltage | 12V ac | |
| Contact Configuration | 3PDT | |
| Mounting Type | DIN Rail | |
| Number of Poles | 3 | |
| Series | 58 Series | |
| Load Current Rating | 10A | |
| Minimum Input Voltage | 250V ac | |
| Maximum Input Voltage | 400V ac | |
| Terminal Type | Push In | |
| Switching Voltage | 250 V ac → 400V ac | |
| Depth | 86.3mm | |
| Height | 95.5mm | |
| Length | 31mm | |
| Contact Material | Silver Alloy | |
| Input Current | 97mA | |
| Special Features | AC Coils or DC Coils, Identification Label, Supply Status Indication & Coil Suppression Module as Standard | |
| Relay Switching Classification | General Purpose Relay | |
| Standards Met | CE, CSA, CULus, EAC, GOST, IMQ, LIoyd's Register, RINA, VDE | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -40°C | |
| Turn Off Time | (dc) 15 ms, (ac) 5ms | |
| Operating Temperature Range | -40 → +70°C | |
| Turn On Time | (ac) 10 ms, (dc) 10ms | |
| Input Resistance | 50Ω | |
| Dimensions | 31 x 86.3 x 95.5mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Finder | ||
Coil Voltage 12V ac | ||
Contact Configuration 3PDT | ||
Mounting Type DIN Rail | ||
Number of Poles 3 | ||
Series 58 Series | ||
Load Current Rating 10A | ||
Minimum Input Voltage 250V ac | ||
Maximum Input Voltage 400V ac | ||
Terminal Type Push In | ||
Switching Voltage 250 V ac → 400V ac | ||
Depth 86.3mm | ||
Height 95.5mm | ||
Length 31mm | ||
Contact Material Silver Alloy | ||
Input Current 97mA | ||
Special Features AC Coils or DC Coils, Identification Label, Supply Status Indication & Coil Suppression Module as Standard | ||
Relay Switching Classification General Purpose Relay | ||
Standards Met CE, CSA, CULus, EAC, GOST, IMQ, LIoyd's Register, RINA, VDE | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -40°C | ||
Turn Off Time (dc) 15 ms, (ac) 5ms | ||
Operating Temperature Range -40 → +70°C | ||
Turn On Time (ac) 10 ms, (dc) 10ms | ||
Input Resistance 50Ω | ||
Dimensions 31 x 86.3 x 95.5mm | ||
- Pays d'origine :
- IT
58 Series
Features and Benefits
Contact resistance: 50mΩ
Operating temperature range -40 to + 70°C
Dimensions: H76mm, W27mm, D73mm
Mechanical life: DC versions; 50 x 106 operations, AC versions; 20 x 106 operations
Approvals
