Finder 58 Series Interface Relay, DIN Rail, 24V dc Coil, 3PDT, 40mA
- N° de stock RS:
- 123-2838
- Référence fabricant:
- 58.P3.9.024.0050SMA
- Fabricant:
- Finder
Sous-total (1 unité)*
28,14 €
(TVA exclue)
34,05 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 4 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
- Plus 14 unité(s) expédiée(s) à partir du 16 juin 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 28,14 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 123-2838
- Référence fabricant:
- 58.P3.9.024.0050SMA
- Fabricant:
- Finder
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Finder | |
| Coil Resistance | 600Ω | |
| Product Type | Interface Relay | |
| Coil Voltage | 24V dc | |
| Contact Configuration | 3PDT | |
| Mount Type | DIN Rail | |
| Series | 58 | |
| Terminal Type | Push-in | |
| Switching Current | 10A | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 400V ac | |
| Switching DC Voltage | 30V dc | |
| Coil Current | 40mA | |
| Maximum Operating Temperature | 70°C | |
| Contact Material | Silver Alloy | |
| Length | 31mm | |
| Height | 95.5mm | |
| Standards/Approvals | RoHS | |
| Width | 86.3mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Finder | ||
Coil Resistance 600Ω | ||
Product Type Interface Relay | ||
Coil Voltage 24V dc | ||
Contact Configuration 3PDT | ||
Mount Type DIN Rail | ||
Series 58 | ||
Terminal Type Push-in | ||
Switching Current 10A | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 400V ac | ||
Switching DC Voltage 30V dc | ||
Coil Current 40mA | ||
Maximum Operating Temperature 70°C | ||
Contact Material Silver Alloy | ||
Length 31mm | ||
Height 95.5mm | ||
Standards/Approvals RoHS | ||
Width 86.3mm | ||
- Pays d'origine :
- IT

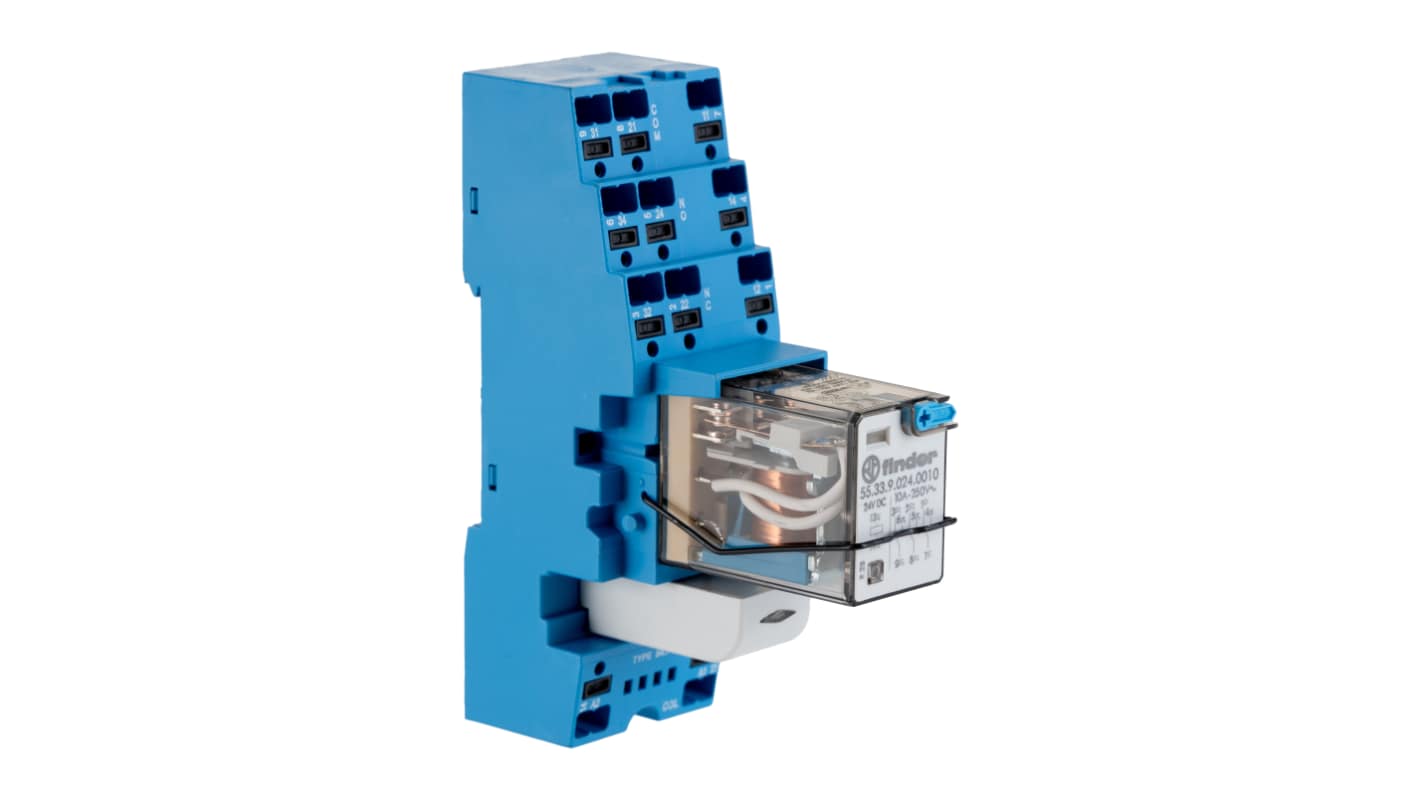

Finder Series 58 Interface Relay, 24V DC Coil Voltage, 3PDT Contact Configuration - 58.P3.9.024.0050SMA
This interface relay is designed for effective switching in various automation and electrical applications. It operates at a coil voltage of 24V DC and can handle load currents of up to 10A, making it suitable for general-purpose tasks and ensuring consistent operation in various environments.
Features & Benefits
• Utilises 3PDT configuration for versatile switching
• Supports a broad input voltage range of 250V AC to 400V AC
• Features push-in terminals for easy and secure connections
• Designed for up to 200,000 cycles for prolonged performance
• Compact dimensions facilitate integration into existing systems
• Equipped with an identification label for easy identification
Applications
• Suitable for machinery control in industrial environments
• Ideal for HVAC systems in temperature management
• Employed in safety circuits for automatic shutdown systems
• Used in lighting control for efficient power management
What is required for installation?
Ensure a suitable mounting rail and proper electrical connections are available.
How does it handle varying input voltages?
It operates efficiently within the specified input voltage range, ensuring stable performance.
What kind of load can it switch?
It can switch loads up to 10A safely under specified conditions.
