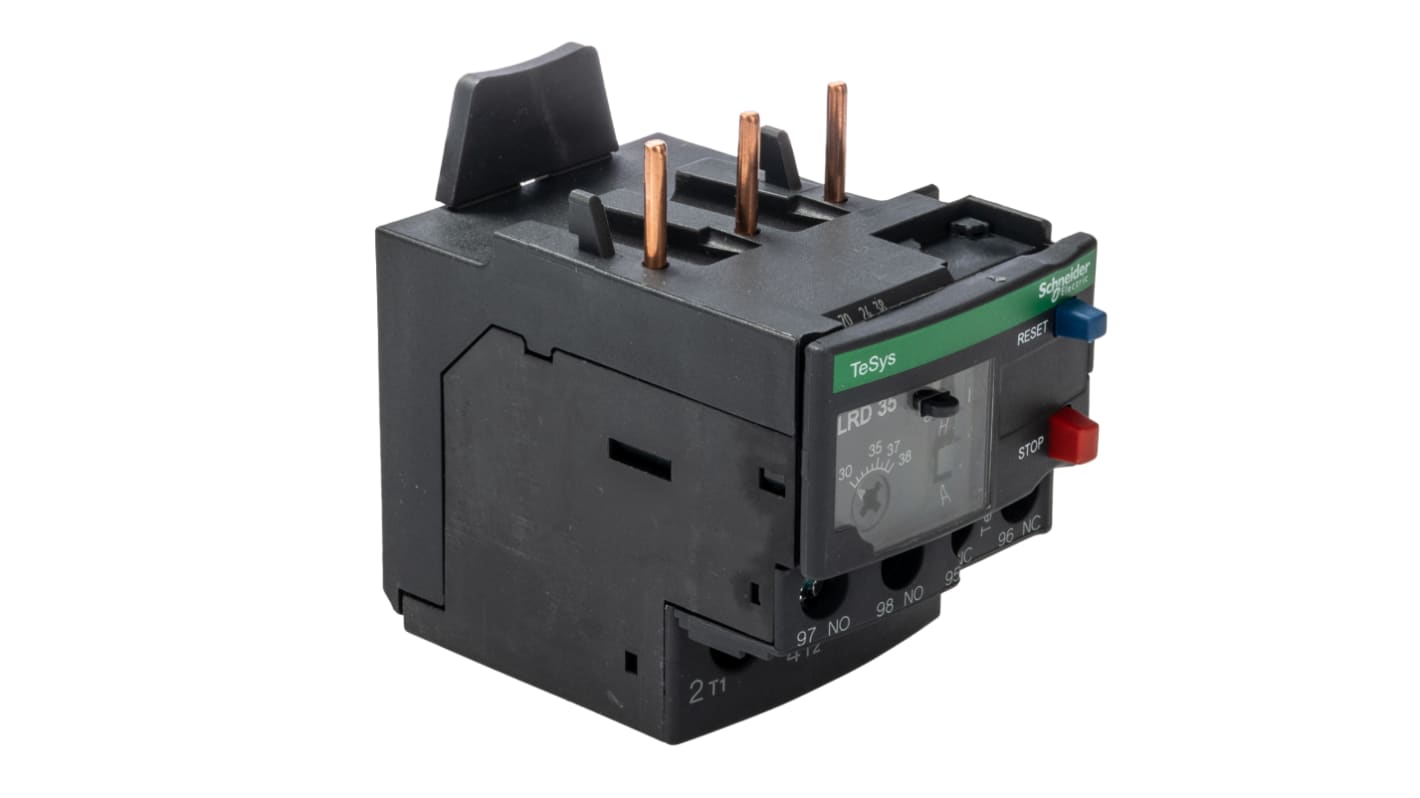

Schneider Electric, TeSyS LR Thermal Overload Relay 1 NO/1 NC, 30A, 38 A F.L.C, 38A Contact Rating, 18.5 kW 3

N° de stock RS:: 400-8581
Référence fabricant:: LRD35
Fabricant:: Schneider Electric

Schneider Electric, TeSyS LR Thermal Overload Relay 1 NO/1 NC, 30A, 38 A F.L.C, 38A Contact Rating, 18.5 kW 3

Sous-total (1 unité)*

105,72 €

(TVA exclue)

127,92 €

(TVA incluse)

Frais de livraison offerts pour toute commande de plus de 90,00 €

Stocké-e par le fabricant

Prêt à être expédié à partir du 14 octobre 2026

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité	Prix par unité
1 +	105,72 €

*Prix donné à titre indicatif

N° de stock RS:: 400-8581
Référence fabricant:: LRD35
Fabricant:: Schneider Electric

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Schneider Electric
	FLC Motor Rating	30, 38A
	Product Type	Thermal Overload Relay
	Relay Contact Current	38A
	Mount Type	Contactor Mount
	Series	TeSyS LR
	Pole and Throw Configuration	3
	Power Rating	18.5kW
	Normal State Configuration	1 NO/1 NC
	Terminal Type	Screw
	IP Rating	IP20
	Reset Method	Automatic & Manual
	Minimum Operating Temperature	-20°C
	Adjustable Current Range	30 → 38 A
	Number of Auxiliary Contacts	2
	Width	45mm
	Contact Voltage	690V ac
	Maximum Operating Temperature	60°C
	Length	137mm
	Standards/Approvals	EAC Approved, EC Approved, EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, UL Approved, CSA Approved, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, DNV-GL Approved
	Depth	70mm

	Sélectionner tout
	Marque Schneider Electric
	FLC Motor Rating 30, 38A
	Product Type Thermal Overload Relay
	Relay Contact Current 38A
	Mount Type Contactor Mount
	Series TeSyS LR
	Pole and Throw Configuration 3
	Power Rating 18.5kW
	Normal State Configuration 1 NO/1 NC
	Terminal Type Screw
	IP Rating IP20
	Reset Method Automatic & Manual
	Minimum Operating Temperature -20°C
	Adjustable Current Range 30 → 38 A
	Number of Auxiliary Contacts 2
	Width 45mm
	Contact Voltage 690V ac
	Maximum Operating Temperature 60°C
	Length 137mm
	Standards/Approvals EAC Approved, EC Approved, EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, UL Approved, CSA Approved, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, DNV-GL Approved
	Depth 70mm

Se connecter pour voir les modèles CAO

Statut RoHS : Exempté

Pays d'origine :: FR

Schneider Electric LRD Series Thermal Overload Relay, 30 to 38 A FLC Motor Rating, 1NO + 1NC - LRD35

This thermal overload relay is a component in motor protection. Designed for 3P applications, it operates efficiently within a range of 30 to 38A. With dimensions of 137mm in length, 70mm in depth and 45mm in width, this device features a screw clamp terminal for secure connections. It is suitable for various electrical overload protection needs.

Features & Benefits

• Class 10A thermal overload for precise motor protection

• Adjustable tripping threshold enhancing operational flexibility

• Supports automatic and manual reset for convenience

• Conforms to IEC standards for consistent usage

• IP20 rated for protection against solid objects

• Compatible with a wide range of motor types

Applications

• Utilised in motor protection circuits for industrial applications

• Suitable for DC and AC networks in diverse settings

• Ideal for use with LC1D32 and LC1D38 contactors

• Employed in rail mounting configurations for efficient installation

• Used for thermal protection of electrical motors

Can it automatically reset after a trip?

Yes, it features both automatic and manual reset options.

Is it suitable for high current applications?

Yes, it can handle up to 38A effectively.

Will it fit into standard mounting configurations?

It is designed for under contactor mounting with specific accessories.

Can it operate in extreme temperatures?

Yes, it functions consistently between -20°C and +60°C.
