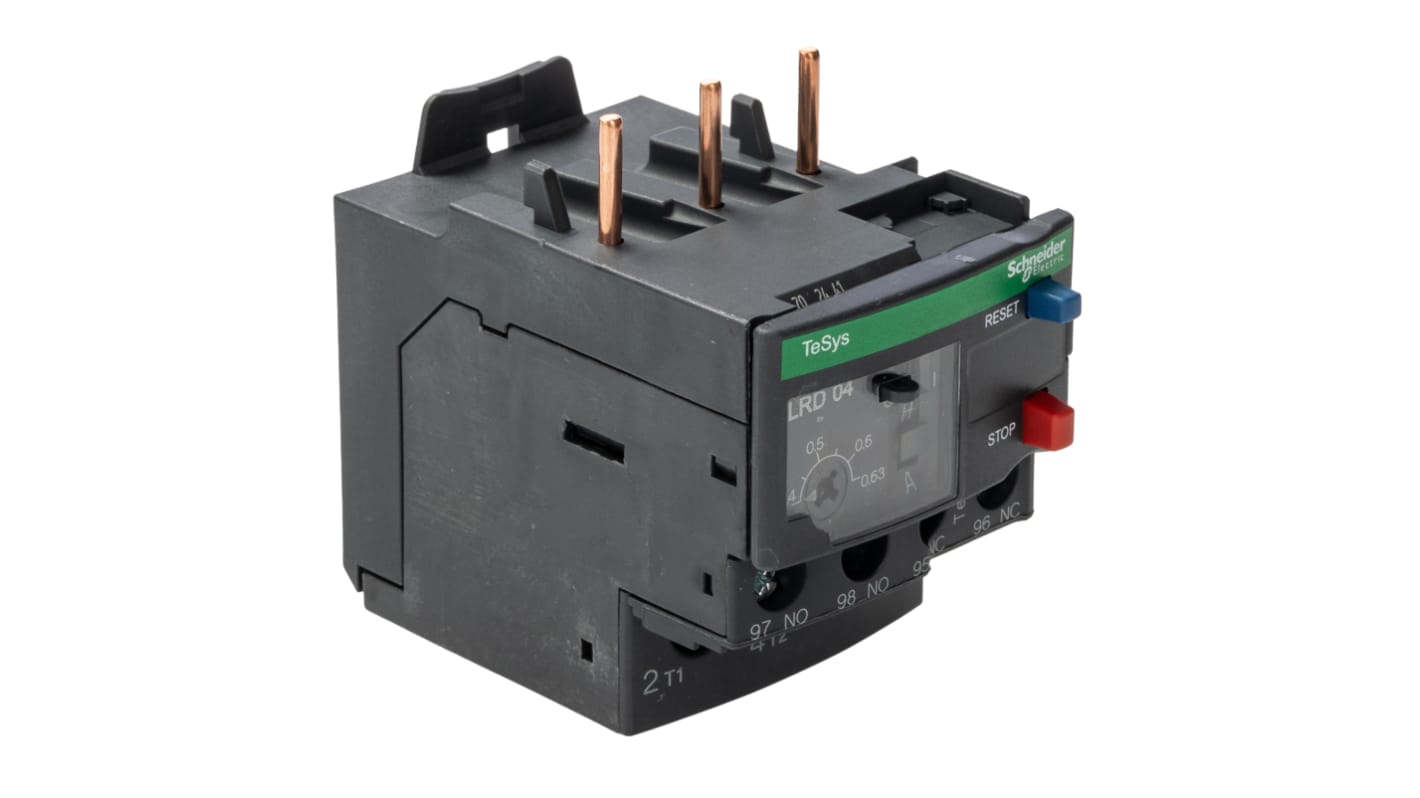

Schneider Electric, LRD Overload Relay 1 NO/1 NC, 0.4A, 0.63 A F.L.C, 630mA Contact Rating, 180 W, 690V 3

N° de stock RS:: 394-9431
Numéro d'article Distrelec:: 136-22-703
Référence fabricant:: LRD04
Fabricant:: Schneider Electric

Schneider Electric, LRD Overload Relay 1 NO/1 NC, 0.4A, 0.63 A F.L.C, 630mA Contact Rating, 180 W, 690V 3

Sous-total (1 unité)*

65,18 €

(TVA exclue)

78,87 €

(TVA incluse)

Frais de livraison offerts pour toute commande de plus de 90,00 €

En stock

68 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Plus 40 unité(s) expédiée(s) à partir du 09 octobre 2026
Plus 20 unité(s) expédiée(s) à partir du 23 octobre 2026

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité	Prix par unité
1 +	65,18 €

*Prix donné à titre indicatif

N° de stock RS:: 394-9431
Numéro d'article Distrelec:: 136-22-703
Référence fabricant:: LRD04
Fabricant:: Schneider Electric

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Schneider Electric
	FLC Motor Rating	0.4, 0.63A
	Product Type	Overload Relay
	Relay Contact Current	630mA
	Series	LRD
	Mount Type	Direct
	Power Rating	180W
	Pole and Throw Configuration	3
	Terminal Type	Screw
	Normal State Configuration	1 NO/1 NC
	Reset Method	Automatic & Manual
	IP Rating	IP20
	Number of Auxiliary Contacts	2
	Adjustable Current Range	0.4 → 0.63 A
	Minimum Operating Temperature	-20°C
	Width	45mm
	Length	123mm
	Maximum Operating Temperature	60°C
	Contact Voltage	690V ac
	Depth	66mm
	Standards/Approvals	CSA Approved, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, DNV-GL Approved, EAC Approved, EC Approved, EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, UL Approved
	Control Voltage	690V

	Sélectionner tout
	Marque Schneider Electric
	FLC Motor Rating 0.4, 0.63A
	Product Type Overload Relay
	Relay Contact Current 630mA
	Series LRD
	Mount Type Direct
	Power Rating 180W
	Pole and Throw Configuration 3
	Terminal Type Screw
	Normal State Configuration 1 NO/1 NC
	Reset Method Automatic & Manual
	IP Rating IP20
	Number of Auxiliary Contacts 2
	Adjustable Current Range 0.4 → 0.63 A
	Minimum Operating Temperature -20°C
	Width 45mm
	Length 123mm
	Maximum Operating Temperature 60°C
	Contact Voltage 690V ac
	Depth 66mm
	Standards/Approvals CSA Approved, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, DNV-GL Approved, EAC Approved, EC Approved, EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, UL Approved
	Control Voltage 690V

Se connecter pour voir les modèles CAO

Statut RoHS : Exempté

Pays d'origine :: FR

Schneider Electric LRD Series Overload Relay, 1NO + 1NC, Direct Contactor Mounting Style - LRD04

This overload relay by Schneider Electric is a reliable and efficient solution for motor protection applications. With contact current rating of 630 mA and contact voltage rating of 690 V AC, the TeSys overload relay ensures optimal performance in a variety of settings.

Features & Benefits

• Automatic and manual reset options for added flexibility

• 1NO + 1NC configuration allows for versatile control

• Screw type terminal for easy and secure connections

• 3P pole configuration for enhanced functionality

• Wide operating temperature range from -20 to +60 °C

• Compact design with a width of 45mm and a depth of 70mm

Applications

• Ideal for use in motor protection • Suitable for use with various Schneider Electric components such as LC1D09, LC1D12, and more

Can this overload relay be used in high-temperature environments?

Yes, the overload relay has a maximum operating temperature of +60 °C, making it suitable for high-temperature settings.

Is the reset method for this overload relay automatic or manual?

The overload relay features both automatic and manual reset methods for convenience.

What type of terminal does this overload relay have?

The overload relay comes with screw clamp terminals for secure connections.

How many auxiliary contacts does this overload relay have?

This overload relay has 2 auxiliary contacts for additional functionality.

What is the pole configuration of this overload relay?

The overload relay has a 3P pole configuration for enhanced performance.
