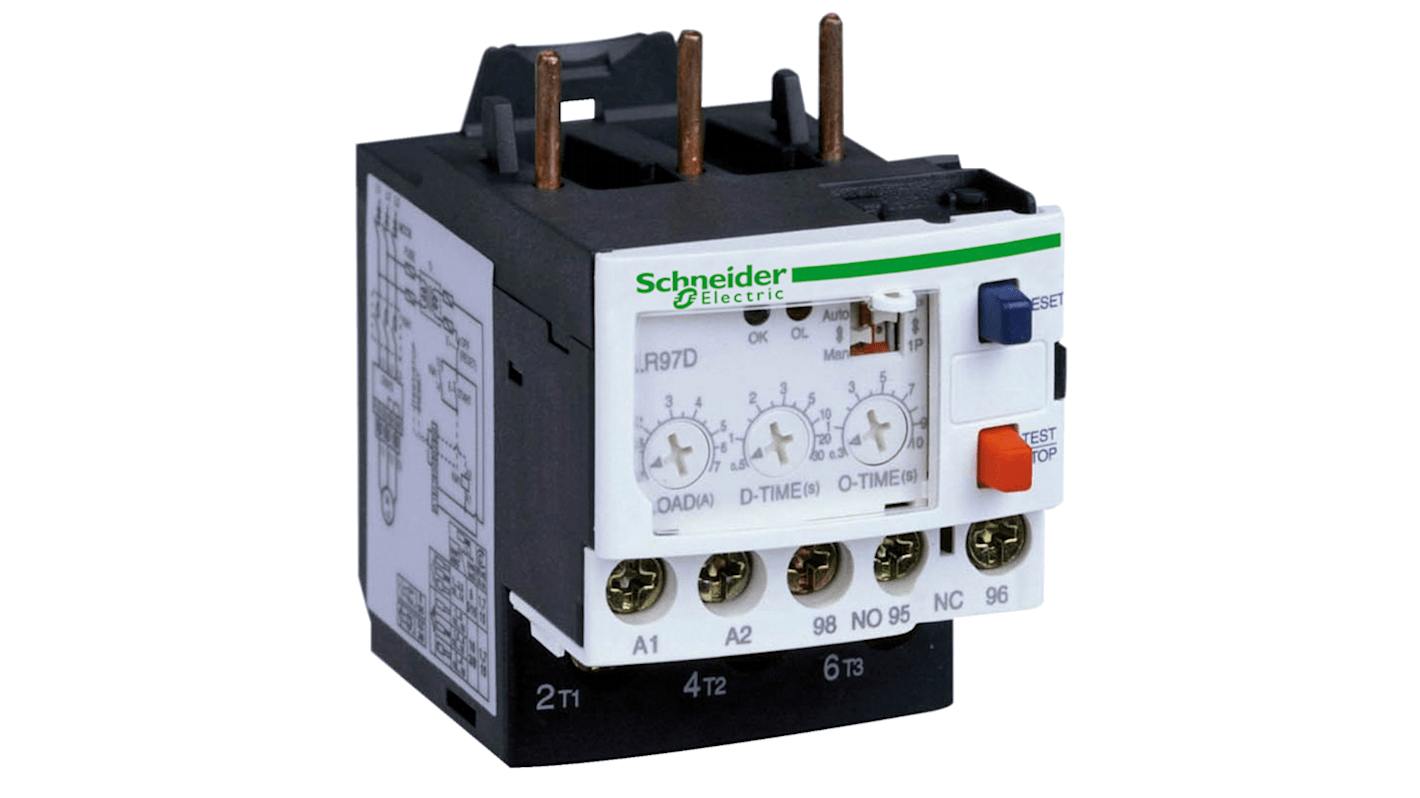

Schneider Electric, TeSys Thermal Overload Relay NO/NC, Trip Dial: 20 → 38 A, 38A F.L.C, 3A Contact Rating, 240V ac 3P
- N° de stock RS:
- 211-1779
- Référence fabricant:
- LR97D38M7
- Fabricant:
- Schneider Electric
Sous-total (1 unité)*
99,08 €
(TVA exclue)
119,89 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 1 unité(s) expédiée(s) à partir du 09 novembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 99,08 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 211-1779
- Référence fabricant:
- LR97D38M7
- Fabricant:
- Schneider Electric
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Schneider Electric | |
| FLC Motor Rating | 38A | |
| Product Type | Thermal Overload Relay | |
| Relay Contact Current | 3A | |
| Series | TeSys | |
| Mount Type | DIN Rail, Direct | |
| Pole and Throw Configuration | 3P | |
| Terminal Type | Flexible Cable | |
| Normal State Configuration | NO/NC | |
| IP Rating | IP20 | |
| Reset Method | Automatic | |
| Width | 45mm | |
| Minimum Operating Temperature | -25°C | |
| Adjustable Current Range | 20 → 38 A | |
| Number of Auxiliary Contacts | 2 | |
| Maximum Operating Temperature | 60°C | |
| Length | 67.5mm | |
| Standards/Approvals | IEC 60255-6, IEC 60947 | |
| Depth | 67.5mm | |
| Control Voltage | 240V ac | |
| Supply Voltage | 200V ac, 240V ac | |
| Sélectionner tout | ||
|---|---|---|
Marque Schneider Electric | ||
FLC Motor Rating 38A | ||
Product Type Thermal Overload Relay | ||
Relay Contact Current 3A | ||
Series TeSys | ||
Mount Type DIN Rail, Direct | ||
Pole and Throw Configuration 3P | ||
Terminal Type Flexible Cable | ||
Normal State Configuration NO/NC | ||
IP Rating IP20 | ||
Reset Method Automatic | ||
Width 45mm | ||
Minimum Operating Temperature -25°C | ||
Adjustable Current Range 20 → 38 A | ||
Number of Auxiliary Contacts 2 | ||
Maximum Operating Temperature 60°C | ||
Length 67.5mm | ||
Standards/Approvals IEC 60255-6, IEC 60947 | ||
Depth 67.5mm | ||
Control Voltage 240V ac | ||
Supply Voltage 200V ac, 240V ac | ||
- Pays d'origine :
- KR
The Schneider Electric TeSys Series is best suited for applications involving Motor Control and Starting of Motor. The Schneider Electric series is known for providing a better compatibility which makes it The Schneider Electric best choice for this application.
Easy maintenance checks, check The Schnieder Electric's tightening of cables through conducting thermographic testing and checking The Schnieder Electric's mechanical operation of The Schnieder Electric's product through manually operating The Schnieder E
