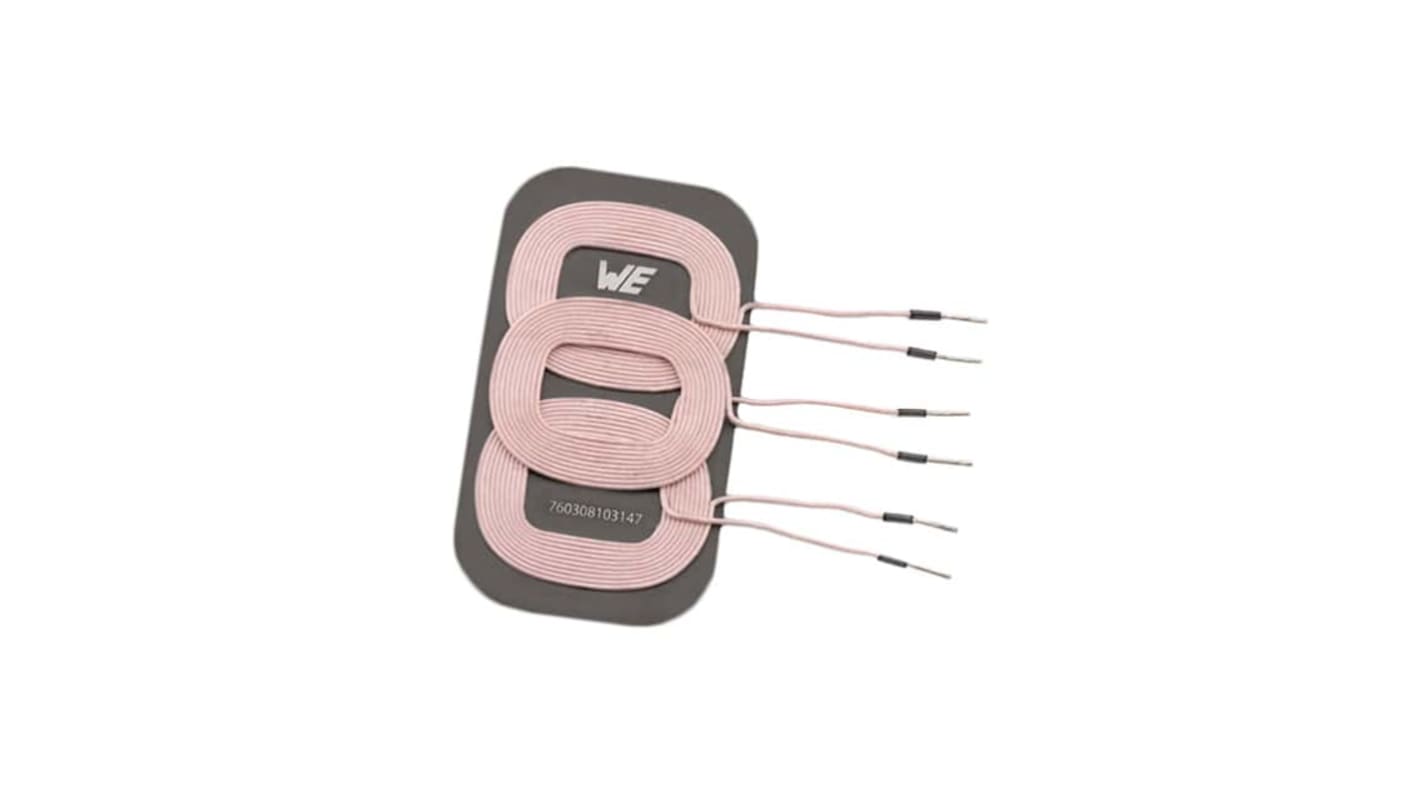

Wurth Elektronik 7603081 Wireless Charging Coil Transmitter 9 A, 8.5 μH
- N° de stock RS:
- 258-5768
- Référence fabricant:
- 760308103147
- Fabricant:
- Wurth Elektronik
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau disponible. RS a l'intention de le retirer de son assortiment sous peu.
- N° de stock RS:
- 258-5768
- Référence fabricant:
- 760308103147
- Fabricant:
- Wurth Elektronik
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Wurth Elektronik | |
| Inductance | 8.5μH | |
| Product Type | Wireless Charging Coil | |
| Function | Transmitter | |
| Maximum DC Current | 9A | |
| Maximum DC Resistance | 56mΩ | |
| Minimum Quality Factor | 145 | |
| Series | 7603081 | |
| Pin Count | 6 | |
| Minimum Operating Temperature | -20°C | |
| Maximum Self Resonant Frequency | 11MHz | |
| Inductance Tolerance | ±10 % | |
| Maximum Operating Temperature | 105°C | |
| Height | 5.2mm | |
| Standards/Approvals | REACH, RoHS | |
| Width | 55mm | |
| Length | 100mm | |
| Termination Style | Axial | |
| Number of Coils | 3 | |
| Sélectionner tout | ||
|---|---|---|
Marque Wurth Elektronik | ||
Inductance 8.5μH | ||
Product Type Wireless Charging Coil | ||
Function Transmitter | ||
Maximum DC Current 9A | ||
Maximum DC Resistance 56mΩ | ||
Minimum Quality Factor 145 | ||
Series 7603081 | ||
Pin Count 6 | ||
Minimum Operating Temperature -20°C | ||
Maximum Self Resonant Frequency 11MHz | ||
Inductance Tolerance ±10 % | ||
Maximum Operating Temperature 105°C | ||
Height 5.2mm | ||
Standards/Approvals REACH, RoHS | ||
Width 55mm | ||
Length 100mm | ||
Termination Style Axial | ||
Number of Coils 3 | ||
- Pays d'origine :
- CN
The Wurth Elektronik wireless charging coils with inductance 7.5 uH with tolerance 10%.
Self resonant frequency 11 MHz
Function transmitter/receiver
