Wera Adjustable Torque Screwdriver, 0.05 To 0.11 Nm, 4 mm Drive ESD Safe, ±10 % Accuracy
- N° de stock RS:
- 123-1840
- Référence fabricant:
- 05074804001
- Fabricant:
- Wera
Sous-total (1 unité)*
401,69 €
(TVA exclue)
486,04 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 5 unité(s) prête(s) à être expédiée(s)
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 401,69 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 123-1840
- Référence fabricant:
- 05074804001
- Fabricant:
- Wera
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Wera | |
| Torque Range | 0.05 To 0.11 Nm | |
| Product Type | Torque Screwdriver | |
| Sub Type | Adjustable | |
| Drive Size | 4 mm | |
| ESD Safe | Yes | |
| Overall Length | 141mm | |
| Accuracy | ±10 % | |
| Standards/Approvals | DIN EN 61340-5-1 | |
| Sélectionner tout | ||
|---|---|---|
Marque Wera | ||
Torque Range 0.05 To 0.11 Nm | ||
Product Type Torque Screwdriver | ||
Sub Type Adjustable | ||
Drive Size 4 mm | ||
ESD Safe Yes | ||
Overall Length 141mm | ||
Accuracy ±10 % | ||
Standards/Approvals DIN EN 61340-5-1 | ||
Statut RoHS : Exempté
- Pays d'origine :
- CZ

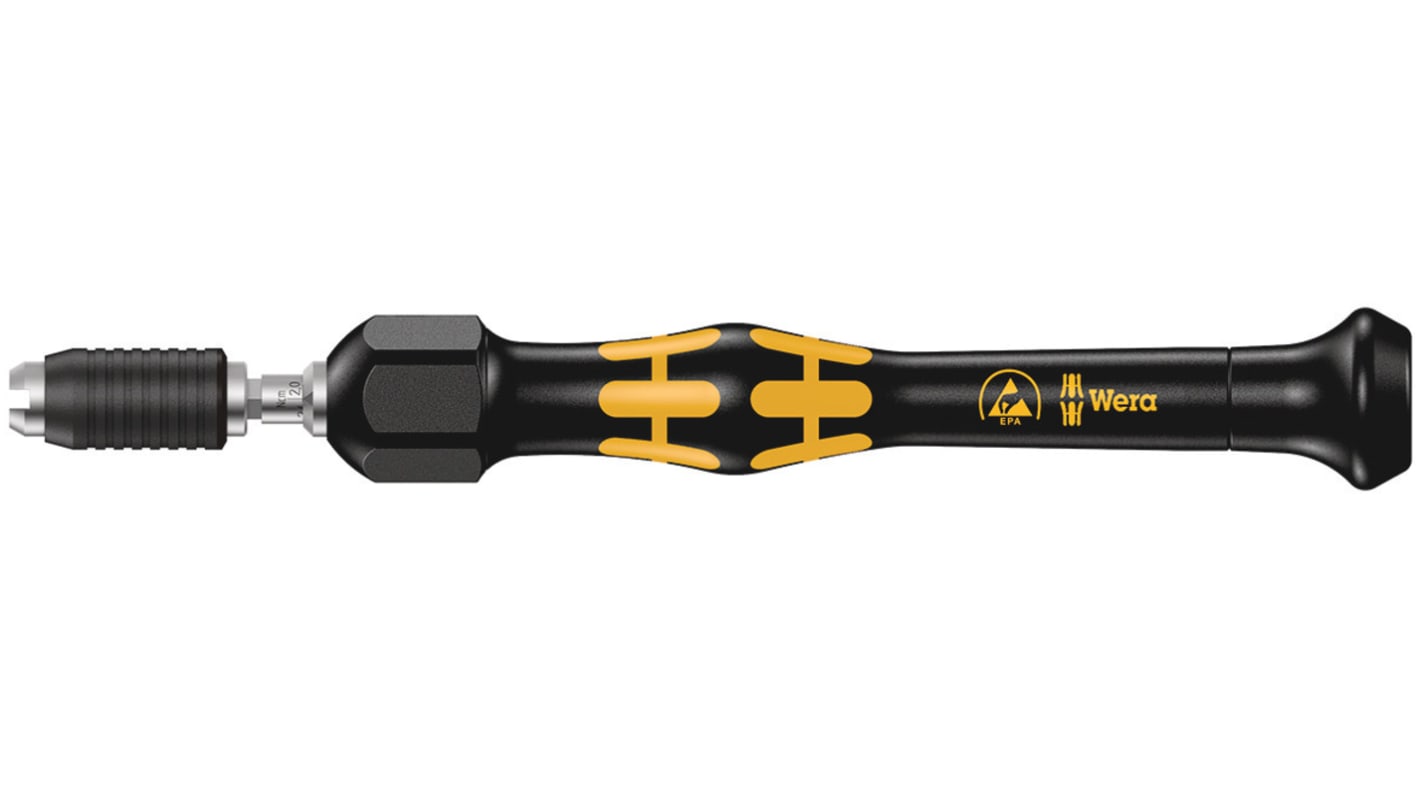

1430 Kraftform Micro ESD adjustable torque screwdrivers (0.02-0.11 Nm) with quick-release chuck
Torque tool with adjustable torque of 5.0 to 11.0 cNm (accuracy +/- 10%). Compact handle/interchangeable blade system for torque controlled precision screwdriving. The Kraftform Micro ESD torque screwdriver is ideal for torque controlled jobs on electrostatically-susceptible components. Suitable for the take-up of bits with 4 mm halfmoon drive (Wera series 9) and 4 mm HIOS drive (Wera series 21). Tamperproof. Distinct audible and perceivable excess load signal when the pre-set torque value is reached. Unlimited manual loosening torque. Electrical surface resistance of ≤ 10^9 Ohm for secure protection against electrostatic charge. Manufactured in accordance with DIN EN 61340-5-1. Handle/Interchangeable blade system for rapid blade change. Kaftform Micro handle with twist cap and free-turning zone for rapid twisting, making any time-consuming repositioning of the fingers unnecessary. Power zone with integrated soft zones for the transfer of higher tightening and loosening torque. Precision zone directly above the blade for the right angle for adjustment work. Rapid fixing of the bit: just push the bit into the insert for automatic locking and a secure fit. To change the bit, simply push the sleeve forward and remove. Free-turning sleeve for simple guidance of the tool during the screwdriving process. Bits suitable for manual as well as power tool operations with electric screwdrivers (e.g. HIOS, Delvo, Sehan). Applications for example on smartphones, cell phones, cameras, electrical appliances, in dental labs and dental surgeries.
Adjustable Kraftform Micro ESD torque screwdriver with quick-release chuck
ESD-safe tool thanks to surface resistance of ≤ 10^9 Ohm
Distinct audible and perceivable excess load signal when the pre-set torque value is reached
Suitable for bits with 4 mm halfmoon and 4 mm HIOS drive
Applications e.g. on smartphones, mobile phones, cameras, electronic equipment
1430 Kraftform Micro ESD adjustable torque screwdrivers (0.02-0.11 Nm) with quick-release chuck, 1431 ESD x 0.05-0.11 Nm
