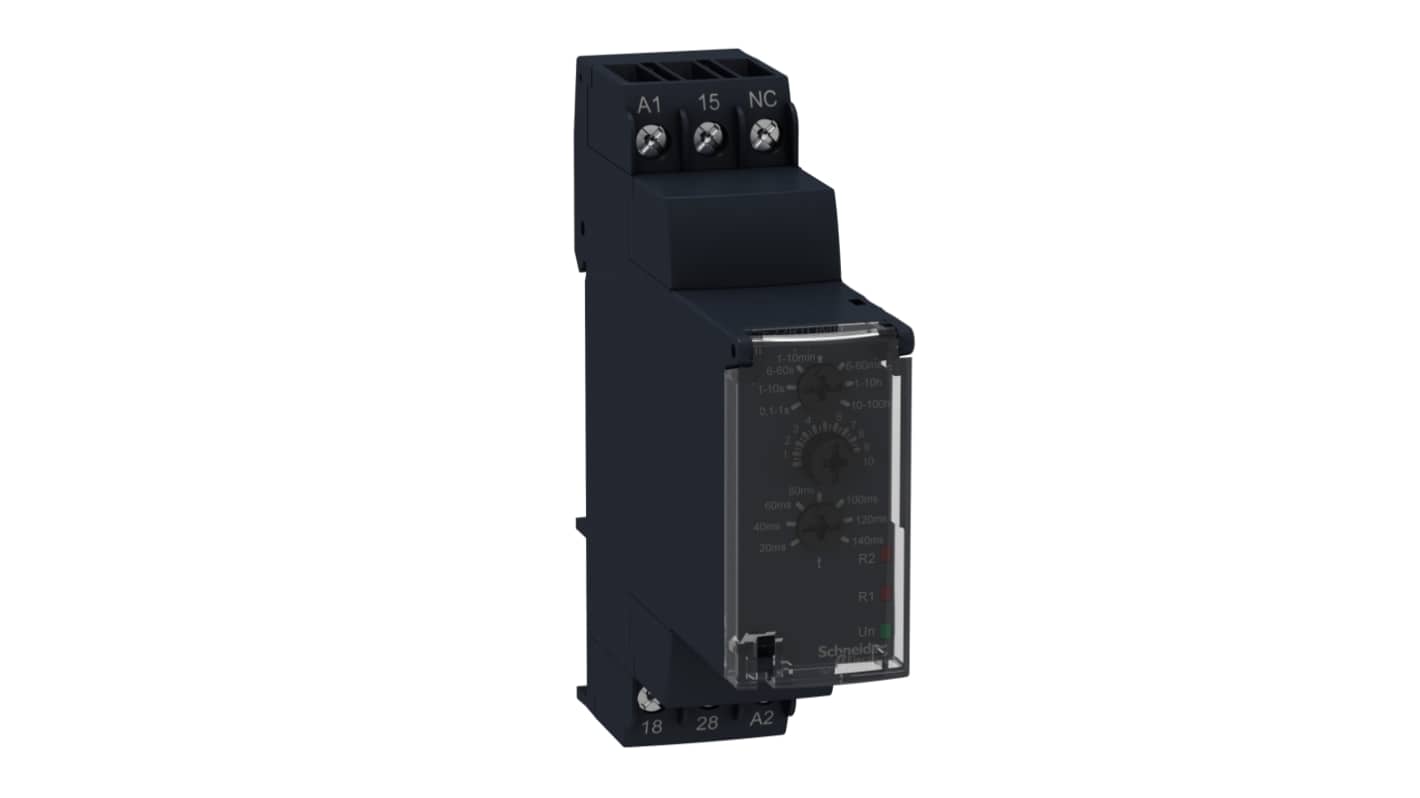

Schneider Electric Harmony Time Series DIN Rail Mount Timer Relay, 24 → 240 V ac, 24V dc, 2-Contact, 0.1 s
- N° de stock RS:
- 872-5801
- Référence fabricant:
- RE22R1QMU
- Fabricant:
- Schneider Electric
4 En stock, livraison sous 1 jour(s) (stock Europe)
2 En stock, livraison sous 3 à 5 jours (stock Europe)
Ajouté
Prix la pièce
43,47 €
(TVA exclue)
52,60 €
(TVA incluse)
Unité | Prix par unité |
1 - 4 | 43,47 € |
5 + | 42,15 € |
Better World
Notre gamme de produits Better World vous facilite l'accès à des produits plus durables et plus fiables. Cliquez ici pour en savoir plus.
- N° de stock RS:
- 872-5801
- Référence fabricant:
- RE22R1QMU
- Fabricant:
- Schneider Electric
Législations et de normes
- Pays d'origine :
- ID
Détails du produit
Schneider Electric Timer Relay, SPCO Switch Configuration,
When timing is everything, use this relay from Schneider Electric to control your automated systems. It has an ON/OFF delay range between 0.1 seconds and 100 hours, so you can schedule equipment to start up or shut down without needing to hang around to flick a switch. Dials on the front with marked increments are a cinch to set and adjust with a quick twist. A clear cover protects the controls while allowing you to check your settings at a glance.
Features & Benefits
• Mounts on a DIN rail in any position for speedy installation
• Compact width of 22.5mm, so it fits in tight spaces
• Mechanical lifespan of 10 million cycles for long-term performance
• Wide operating temperature range between -20°C and +60°C, to handle harsh conditions
• Compact width of 22.5mm, so it fits in tight spaces
• Mechanical lifespan of 10 million cycles for long-term performance
• Wide operating temperature range between -20°C and +60°C, to handle harsh conditions
Applications
• Gates and barriers
• Building management systems
• Pumping and irrigation
• Automated machines
• Building management systems
• Pumping and irrigation
• Automated machines
How can I tell if the relay is working?
This timer relay has signalling LEDs on the front to indicate its operational status and keep you up to speed. The LEDs glow yellow when it's energised, steady green when it's on and flashing green when timing is in progress.
Spécifications
Attribut | Valeur |
---|---|
Supply Voltage | 24 → 240 V ac, 24V dc |
Mounting Type | DIN Rail |
Mode of Operation | Star Delta |
Time Range | 0.1 s → 100h |
Number of Contacts | 2 |
Number of Timer Functions | Single |
Contact Configuration | SPDT |
Time Increment | Hours, Minutes, Seconds |
Maximum Current | 8A |
Switch Configuration | SPCO |
Terminal Type | Screw |
Power Supply | External |
Width | 22.5mm |
Length | 22.9mm |
Depth | 79.5mm |
Minimum Current | 10mA |
Maximum Operating Temperature | +60°C |
Series | Harmony Time |
Better World Product | Yes |
Better World Verification | Green Premium |
Minimum Operating Temperature | -20°C |
Time Delay | <100ms |
