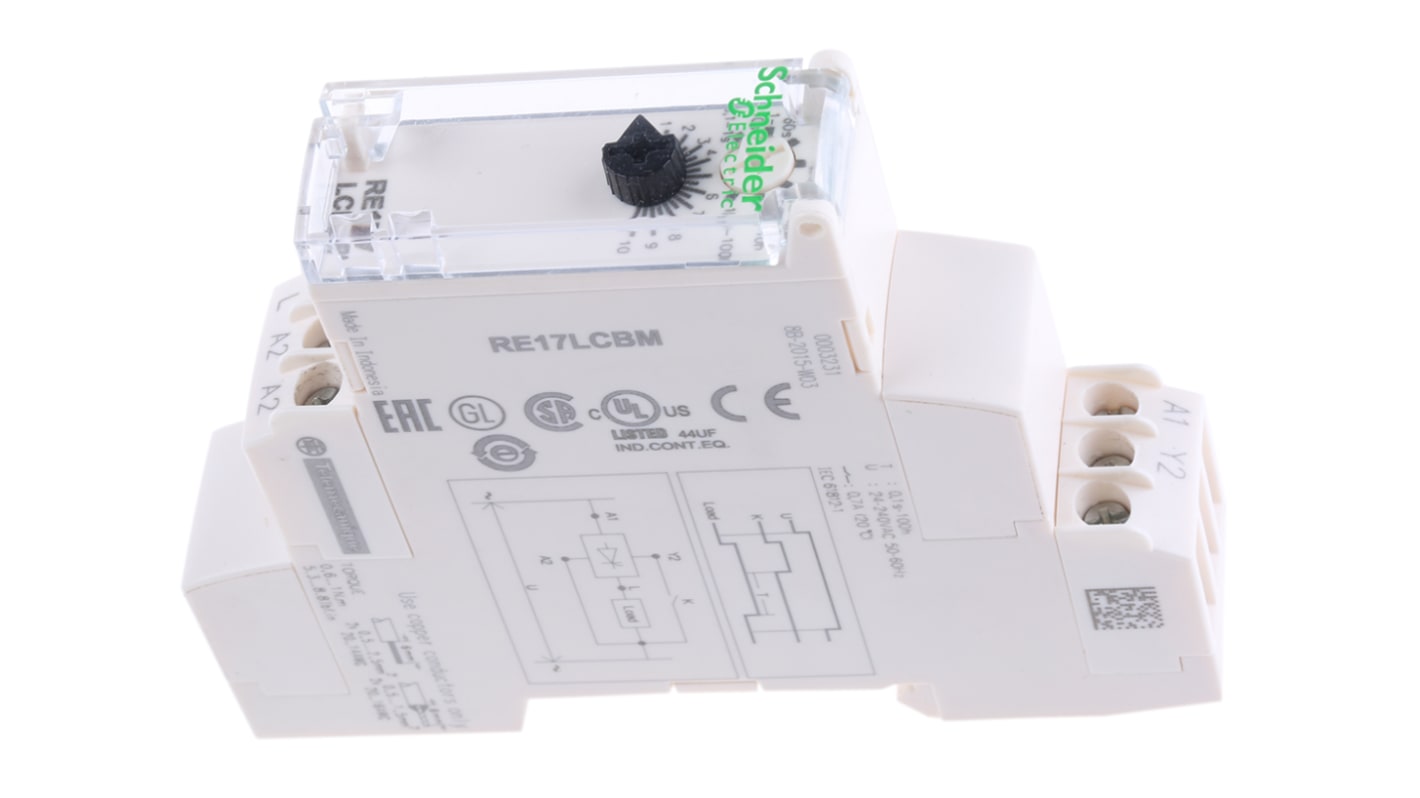

Schneider Electric Harmony Time Series DIN Rail Mount Timer Relay, 24 → 240V ac, 0.1 s → 100h,
- N° de stock RS:
- 791-2701
- Numéro d'article Distrelec:
- 303-02-755
- Référence fabricant:
- RE17LCBM
- Fabricant:
- Schneider Electric
Offre groupée disponible
Sous-total (1 unité)*
49,14 €
(TVA exclue)
59,46 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 6 unité(s) prête(s) à être expédiée(s)
- Plus 15 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 49,14 € |
| 10 + | 41,77 € |
*Prix donné à titre indicatif
Better World
Notre gamme de produits Better World vous facilite l'accès à des produits plus durables et plus fiables. Cliquez ici pour en savoir plus.
- N° de stock RS:
- 791-2701
- Numéro d'article Distrelec:
- 303-02-755
- Référence fabricant:
- RE17LCBM
- Fabricant:
- Schneider Electric
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Schneider Electric | |
| Supply Voltage | 24 → 240V ac | |
| Mounting Type | DIN Rail | |
| Mode of Operation | OFF Delay | |
| Time Range | 0.1 s → 100h | |
| Number of Timer Functions | Single | |
| Contact Configuration | Solid State | |
| Time Increment | Hours, Minutes, Seconds | |
| Maximum Current | 20A | |
| Maximum Voltage | 240V ac | |
| Terminal Type | Screw | |
| Width | 17.5mm | |
| Minimum Voltage | 24V ac | |
| Depth | 72mm | |
| Length | 90mm | |
| Better World Product | Yes | |
| Maximum Operating Temperature | +60°C | |
| Series | Harmony Time | |
| Minimum Current | 0.7A | |
| Better World Verification | Green Premium | |
| Time Delay | <100ms | |
| Minimum Operating Temperature | -20°C | |
| Sélectionner tout | ||
|---|---|---|
Marque Schneider Electric | ||
Supply Voltage 24 → 240V ac | ||
Mounting Type DIN Rail | ||
Mode of Operation OFF Delay | ||
Time Range 0.1 s → 100h | ||
Number of Timer Functions Single | ||
Contact Configuration Solid State | ||
Time Increment Hours, Minutes, Seconds | ||
Maximum Current 20A | ||
Maximum Voltage 240V ac | ||
Terminal Type Screw | ||
Width 17.5mm | ||
Minimum Voltage 24V ac | ||
Depth 72mm | ||
Length 90mm | ||
Better World Product Yes | ||
Maximum Operating Temperature +60°C | ||
Series Harmony Time | ||
Minimum Current 0.7A | ||
Better World Verification Green Premium | ||
Time Delay <100ms | ||
Minimum Operating Temperature -20°C | ||
- Pays d'origine :
- SG
Off Delay Timers - Zelio RE17L Series
RE17L series timing relays enable simple automation cycles to be set up using wired logic. They can also be used to complement the functions of PLCs.
Timing relays with solid state output reduce the amount of wiring required (wired in series). The durability of these timing relays is independent of the number of operating cycles.
Timing relays with solid state output reduce the amount of wiring required (wired in series). The durability of these timing relays is independent of the number of operating cycles.
Off-delay function
Multivoltage
LED state indicator
Solid state output 0.7 A
Screw terminals
DIN rail mounting
Multivoltage
LED state indicator
Solid state output 0.7 A
Screw terminals
DIN rail mounting
