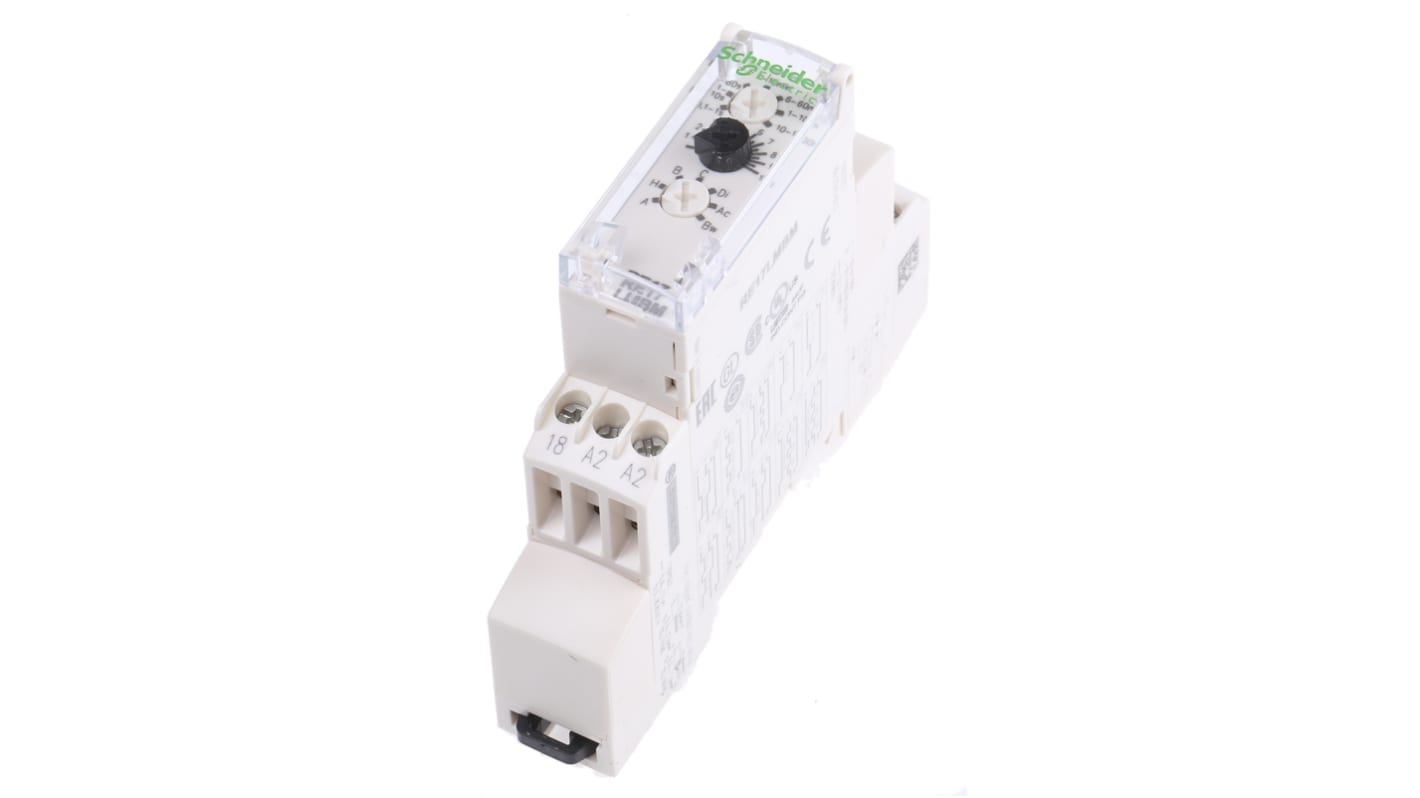

Schneider Electric Harmony Time Series DIN Rail Mount Timer Relay, 24 → 240V ac, 0.1 s → 100h, Solid State
- N° de stock RS:
- 791-2717
- Numéro d'article Distrelec:
- 303-02-760
- Référence fabricant:
- RE17LMBM
- Fabricant:
- Schneider Electric
Offre groupée disponible
Sous-total (1 unité)*
65,45 €
(TVA exclue)
79,19 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 3 unité(s) prête(s) à être expédiée(s)
- Plus 17 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 65,45 € |
| 10 + | 55,63 € |
*Prix donné à titre indicatif
Better World
Notre gamme de produits Better World vous facilite l'accès à des produits plus durables et plus fiables. Cliquez ici pour en savoir plus.
- N° de stock RS:
- 791-2717
- Numéro d'article Distrelec:
- 303-02-760
- Référence fabricant:
- RE17LMBM
- Fabricant:
- Schneider Electric
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Schneider Electric | |
| Supply Voltage | 24 → 240V ac | |
| Mounting Type | DIN Rail | |
| Mode of Operation | Symmetrical | |
| Time Range | 0.1 s → 100h | |
| Number of Timer Functions | Multi Function | |
| Contact Configuration | Solid State | |
| Time Increment | Hours, Minutes, Seconds | |
| Maximum Current | 20A | |
| Maximum Voltage | 240V ac | |
| Terminal Type | Screw | |
| Minimum Voltage | 24V ac | |
| Width | 17.5mm | |
| Depth | 72mm | |
| Maximum Operating Temperature | +60°C | |
| Better World Product | Yes | |
| Better World Verification | Green Premium | |
| Length | 90mm | |
| Series | Harmony Time | |
| Minimum Current | 0.7A | |
| Minimum Operating Temperature | -20°C | |
| Time Delay | <100ms | |
| Sélectionner tout | ||
|---|---|---|
Marque Schneider Electric | ||
Supply Voltage 24 → 240V ac | ||
Mounting Type DIN Rail | ||
Mode of Operation Symmetrical | ||
Time Range 0.1 s → 100h | ||
Number of Timer Functions Multi Function | ||
Contact Configuration Solid State | ||
Time Increment Hours, Minutes, Seconds | ||
Maximum Current 20A | ||
Maximum Voltage 240V ac | ||
Terminal Type Screw | ||
Minimum Voltage 24V ac | ||
Width 17.5mm | ||
Depth 72mm | ||
Maximum Operating Temperature +60°C | ||
Better World Product Yes | ||
Better World Verification Green Premium | ||
Length 90mm | ||
Series Harmony Time | ||
Minimum Current 0.7A | ||
Minimum Operating Temperature -20°C | ||
Time Delay <100ms | ||
Multifunctional Timers - Zelio RE17L Series
RE17L series timing relays enable simple automation cycles to be set up using wired logic. They can also be used to complement the functions of PLCs.
Timing relays with solid state output reduce the amount of wiring required (wired in series). The durability of these timing relays is independent of the number of operating cycles.
Timing relays with solid state output reduce the amount of wiring required (wired in series). The durability of these timing relays is independent of the number of operating cycles.
Multifunction
Multi-range
Multivoltage
LED state indicator
Solid state output 0.7 A
Screw terminals
DIN rail mounting
Multi-range
Multivoltage
LED state indicator
Solid state output 0.7 A
Screw terminals
DIN rail mounting
Schneider Electric RE17LMBM
This Harmony RE17L timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 0.7A, is 17.5mm wide and can be supplied with 24V to 240V AC. It also has a solid state output. It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0 0
