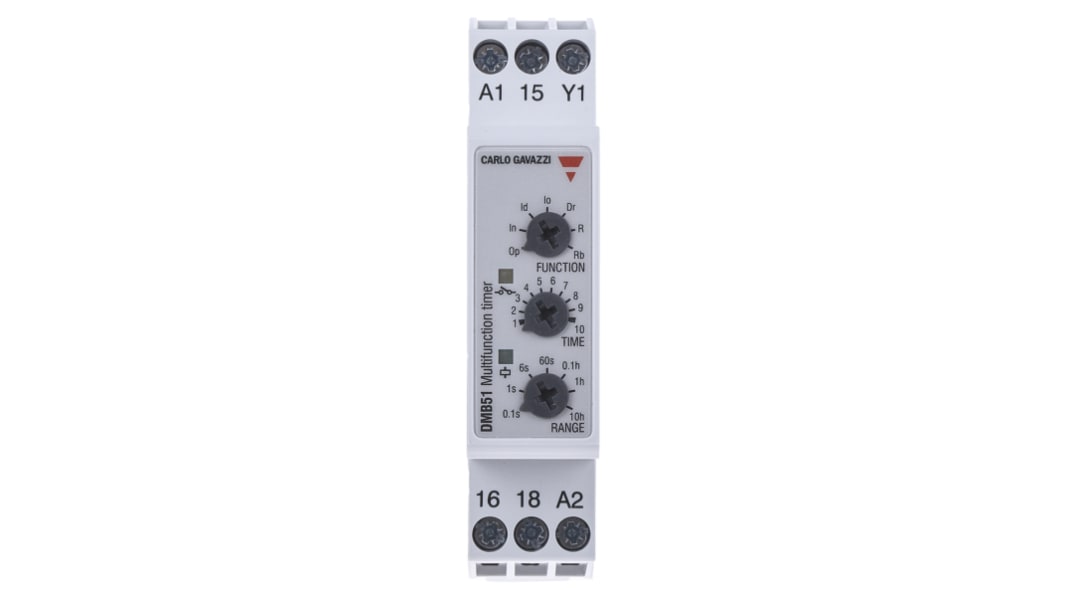

Carlo Gavazzi DMB Series DIN Rail Timer Relay, 2-Contact, 12 to 240 V dc 24V ac, 240 V ac, 0.1 s to 100 h,
- N° de stock RS:
- 857-7139
- Numéro d'article Distrelec:
- 137-54-266
- Référence fabricant:
- DMB51CM24
- Fabricant:
- Carlo Gavazzi
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
70,00 €
(TVA exclue)
84,70 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 36 unité(s) prête(s) à être expédiée(s)
- Plus 112 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 70,00 € |
| 5 + | 67,91 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 857-7139
- Numéro d'article Distrelec:
- 137-54-266
- Référence fabricant:
- DMB51CM24
- Fabricant:
- Carlo Gavazzi
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Carlo Gavazzi | |
| Product Type | Timer Relay | |
| Mount Type | DIN Rail | |
| Function | Offset Double Ring End | |
| Time Range | 0.1 s to 100 h | |
| Number of Contacts | 2 | |
| Switching Voltage | 250V ac | |
| Number of Timer Functions | Multifunction | |
| Contact Configuration | SPDT | |
| IP Rating | IP20 | |
| Supply AC Voltage | 24, 240V ac | |
| Minimum Operating Temperature | -20°C | |
| Contact Current | 5A | |
| Supply DC Voltage | 12 to 240 V dc | |
| Timing Adjustment | Knob | |
| Terminal Type | Screw | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | CE, CSA, RINA (DMB 51 only), UL | |
| Height | 81mm | |
| Length | 67.2mm | |
| Width | 17.5mm | |
| Series | DMB | |
| Sélectionner tout | ||
|---|---|---|
Marque Carlo Gavazzi | ||
Product Type Timer Relay | ||
Mount Type DIN Rail | ||
Function Offset Double Ring End | ||
Time Range 0.1 s to 100 h | ||
Number of Contacts 2 | ||
Switching Voltage 250V ac | ||
Number of Timer Functions Multifunction | ||
Contact Configuration SPDT | ||
IP Rating IP20 | ||
Supply AC Voltage 24, 240V ac | ||
Minimum Operating Temperature -20°C | ||
Contact Current 5A | ||
Supply DC Voltage 12 to 240 V dc | ||
Timing Adjustment Knob | ||
Terminal Type Screw | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals CE, CSA, RINA (DMB 51 only), UL | ||
Height 81mm | ||
Length 67.2mm | ||
Width 17.5mm | ||
Series DMB | ||
- Pays d'origine :
- CN
Carlo Gavazzi Multi-function Timer Relay
The Carlo Gavazzi multi-function timer relay is compact, electromechanical equipment with high precision. It performs selectable functions like delay on, delay on release, double interval, interval, interval on trigger open, asymmetrical recycler off, and symmetrical recycler on first in the range of 0.1 seconds to 100 hours. This is easy to use and quick to configure. This provides a reliable timing solution that is suitable for back and front panel mounting. Its low cost and high performance make it ideal for a wide range of applications in process control environments.
Features and Benefits
7 selectable time ranges in the range of 0.1 seconds to 100 hour like 0.1 seconds to 1 second, 1 second to 10 seconds, 6 seconds to 60 seconds, 60 seconds to 600 seconds, 0.1 hours to 1 hour, 1 hour to 10 hours and 10 hours to 100 hours
Automatic and manual start options
7 selectable functions
2C/O SPDT contact configuration with relay output of 5A
For mounting on DIN rail
Repeatability of ≤ 0.2%
Supply voltage is 24VDC and 24VAC to 240VAC
LED status indication available to provide details of relay status and power supply ON
Supports PNP/NPN and Namur sensors
Setup made simple thanks to knob selection of time range and setting
Applications
Textiles
Chemical industries
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Certifications
IEC 60664
IEC 60038
EN 60529
IP20 rated
UL approved
RINA certified
CSA certified
CE certified
IEC EN 60947
EN 61000-6-2
EN 61000-6-3
