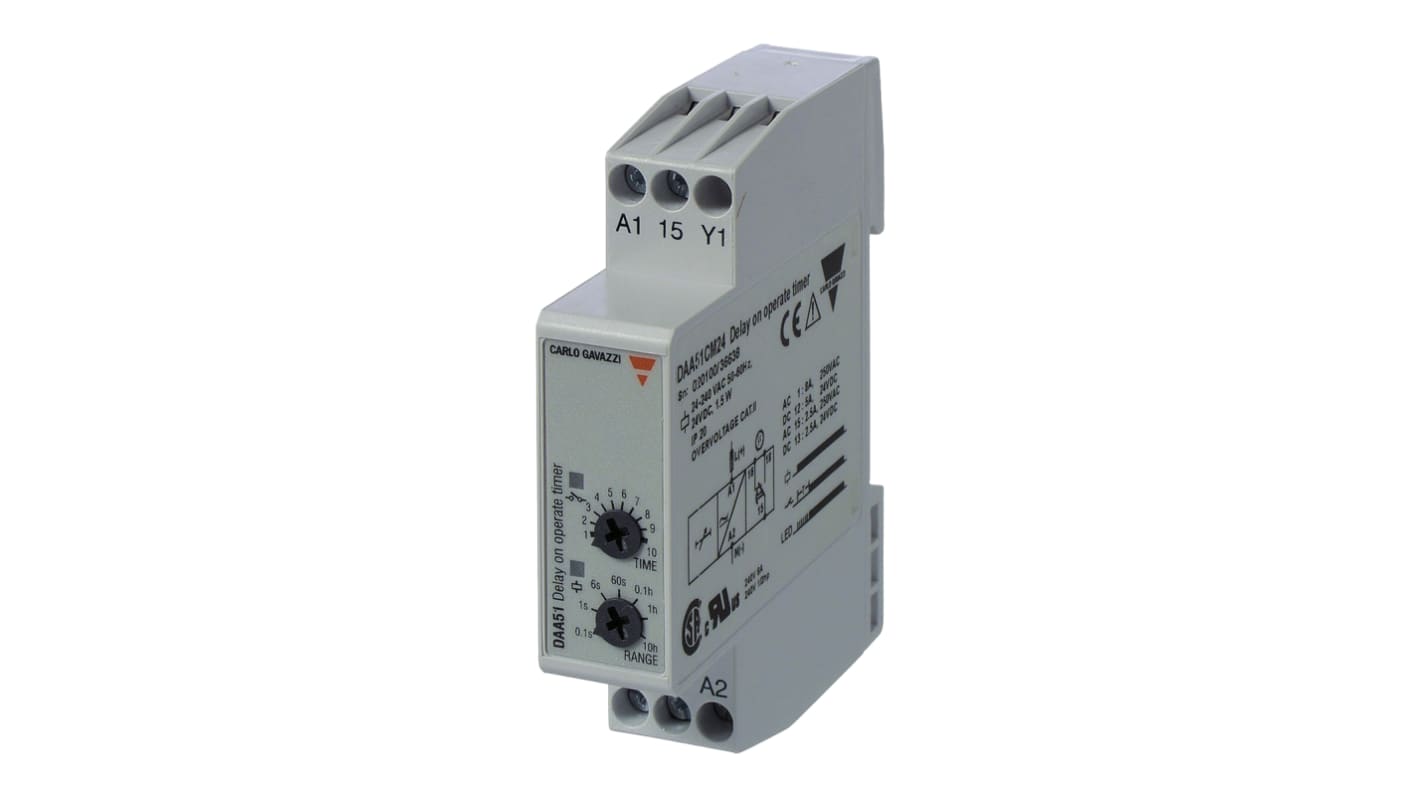

Carlo Gavazzi Mini-D Series DIN Rail Timer Relay, 2-Contact, 12 to 240 V dc 24V ac, 240 V ac, 0.1 s to 100 h,
- N° de stock RS:
- 857-7094
- Numéro d'article Distrelec:
- 137-54-263
- Référence fabricant:
- DAA51CM24
- Fabricant:
- Carlo Gavazzi
Offre groupée disponible
Sous-total (1 unité)*
53,93 €
(TVA exclue)
65,26 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 8 unité(s) prête(s) à être expédiée(s)
- Plus 41 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 53,93 € |
| 5 + | 52,32 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 857-7094
- Numéro d'article Distrelec:
- 137-54-263
- Référence fabricant:
- DAA51CM24
- Fabricant:
- Carlo Gavazzi
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Carlo Gavazzi | |
| Product Type | Timer Relay | |
| Function | Offset Double Ring End | |
| Mount Type | DIN Rail | |
| Time Range | 0.1 s to 100 h | |
| Number of Contacts | 2 | |
| Number of Timer Functions | 1 | |
| Switching Voltage | 250V ac | |
| Contact Configuration | SPDT | |
| IP Rating | IP20 | |
| Timing Adjustment | Knob | |
| Supply DC Voltage | 12 to 240 V dc | |
| Contact Current | 5A | |
| Minimum Operating Temperature | -20°C | |
| Supply AC Voltage | 24, 240V ac | |
| Terminal Type | Screw | |
| Maximum Operating Temperature | 60°C | |
| Width | 17.5mm | |
| Length | 67.2mm | |
| Height | 81mm | |
| Standards/Approvals | CSA, RINA (DAA51 only), UL, CE | |
| Series | Mini-D | |
| Sélectionner tout | ||
|---|---|---|
Marque Carlo Gavazzi | ||
Product Type Timer Relay | ||
Function Offset Double Ring End | ||
Mount Type DIN Rail | ||
Time Range 0.1 s to 100 h | ||
Number of Contacts 2 | ||
Number of Timer Functions 1 | ||
Switching Voltage 250V ac | ||
Contact Configuration SPDT | ||
IP Rating IP20 | ||
Timing Adjustment Knob | ||
Supply DC Voltage 12 to 240 V dc | ||
Contact Current 5A | ||
Minimum Operating Temperature -20°C | ||
Supply AC Voltage 24, 240V ac | ||
Terminal Type Screw | ||
Maximum Operating Temperature 60°C | ||
Width 17.5mm | ||
Length 67.2mm | ||
Height 81mm | ||
Standards/Approvals CSA, RINA (DAA51 only), UL, CE | ||
Series Mini-D | ||
- Pays d'origine :
- CN
Carlo Gavazzi Single-function Timer Relay
The Carlo Gavazzi single-function, timer relay is compact, electromechanical equipment with high precision. It performs the function of providing ON delay in the range of 0.1 seconds to 100 hours. This timer relay is easy to use and quick to configure. This provides a reliable timing solution that is suitable for back and front panel mounting. Its low cost and high performance make it ideal for a wide range of applications in process control environments.
Features and Benefits
7 selectable time ranges in the range of 0.1 seconds to 100 hours like 0.1 seconds to 1 second, 1 second to 10 seconds, 6 seconds to 60 seconds, 60 seconds to 600 seconds, 0.1 hours to 1 hour, 1 hour to 10 hours and 10 hours to 100 hours
Knob selection of time range
Knob adjustable time setting
Automatic start
2C/O SPDT contact configuration with relay output 5A
Repeatability of ≤ 0.2%
Supply voltage 24VDC and 24VAC to 240VAC
For mounting on DIN-rail
LED indication for relay status and power supply on
Combined AC and DC power supply
Applications
Textiles
Chemical industries
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Certifications
IEC 60664
IEC 60038
EN 60529
IP20 rated
CE certified
UL approved
CSA certified
RINA certified
EN 61000-6-2
EN 61000-6-3
