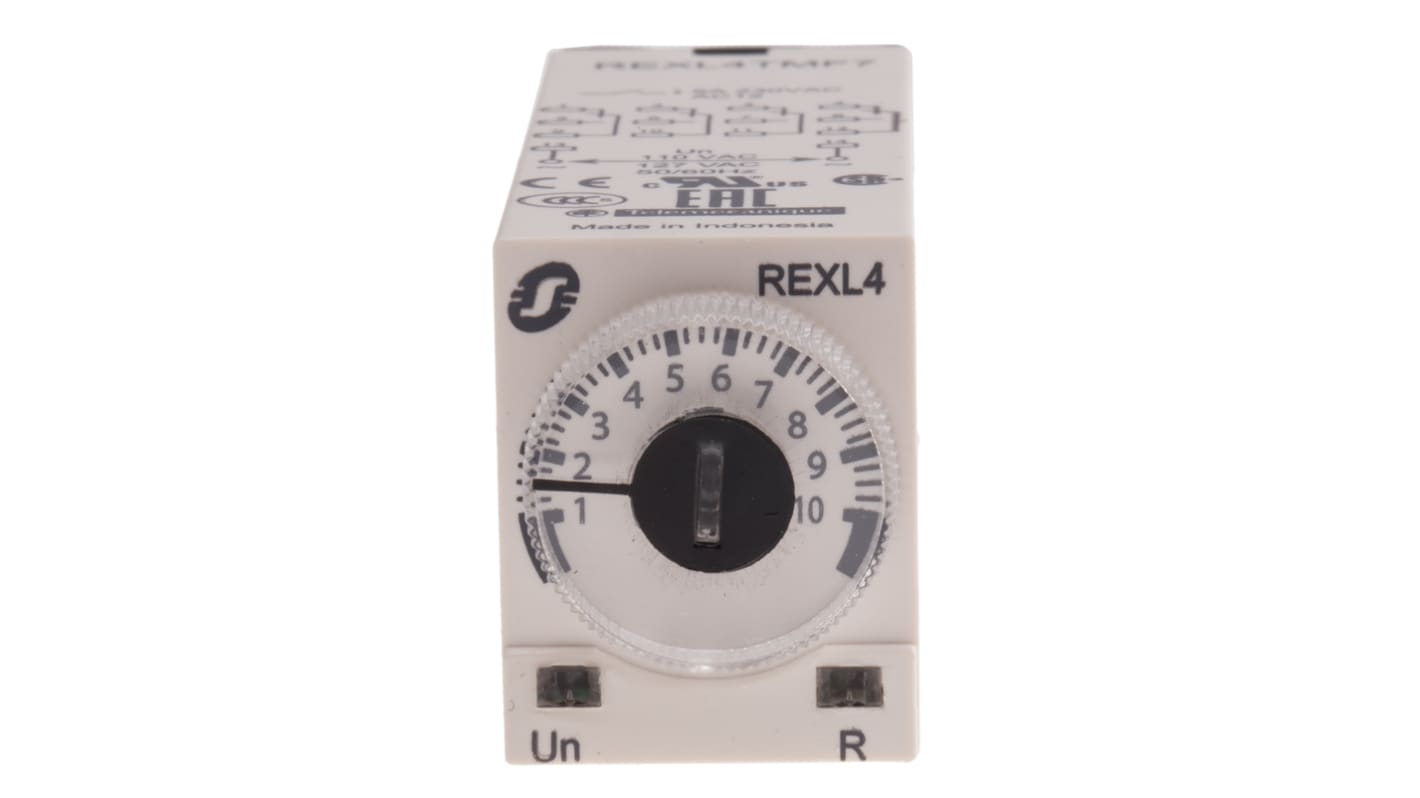

Schneider Electric Harmony Time Series Timer Relay, 4-Contact, 24 to 240 V dc 110V ac, 0.1 s to 100 h,
- N° de stock RS:
- 914-8215
- Référence fabricant:
- REXL4TMF7
- Fabricant:
- Schneider Electric
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
50,63 €
(TVA exclue)
61,26 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 7 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 50,63 € |
| 10 + | 43,04 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 914-8215
- Référence fabricant:
- REXL4TMF7
- Fabricant:
- Schneider Electric
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Schneider Electric | |
| Product Type | Timer Relay | |
| Function | Offset Double Ring End | |
| Time Range | 0.1 s to 100 h | |
| Number of Contacts | 4 | |
| Number of Timer Functions | Multifunction | |
| Contact Configuration | 4 CO | |
| IP Rating | IP50 | |
| Supply DC Voltage | 24 to 240 V dc | |
| Contact Current | 5A | |
| Supply AC Voltage | 110V ac | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Terminal Type | Flat | |
| Height | 21mm | |
| Length | 59.5mm | |
| Standards/Approvals | IEC 60601-1, IEC 60601-2, 93/68/EEC, IEC 61000-6-2, EN 50081-2, IEC 61812-1, 89/336/EEC, 73/23/EEC | |
| Width | 27mm | |
| Series | Harmony Time | |
| Sélectionner tout | ||
|---|---|---|
Marque Schneider Electric | ||
Product Type Timer Relay | ||
Function Offset Double Ring End | ||
Time Range 0.1 s to 100 h | ||
Number of Contacts 4 | ||
Number of Timer Functions Multifunction | ||
Contact Configuration 4 CO | ||
IP Rating IP50 | ||
Supply DC Voltage 24 to 240 V dc | ||
Contact Current 5A | ||
Supply AC Voltage 110V ac | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Terminal Type Flat | ||
Height 21mm | ||
Length 59.5mm | ||
Standards/Approvals IEC 60601-1, IEC 60601-2, 93/68/EEC, IEC 61000-6-2, EN 50081-2, IEC 61812-1, 89/336/EEC, 73/23/EEC | ||
Width 27mm | ||
Series Harmony Time | ||
Statut RoHS : Exempté
- Pays d'origine :
- ID
On Delay Timers- REXL4 Series
Schneider Electric REXL4 Series is a miniature designed time delay relay which features On delay functionality.
• On Delay function
• Compact miniature design
• 4 C/O
• Plug-in socket terminal
• 50 ms reset time
• Wide supply voltage range
• LED status indication for power and output
• IP50 protection
