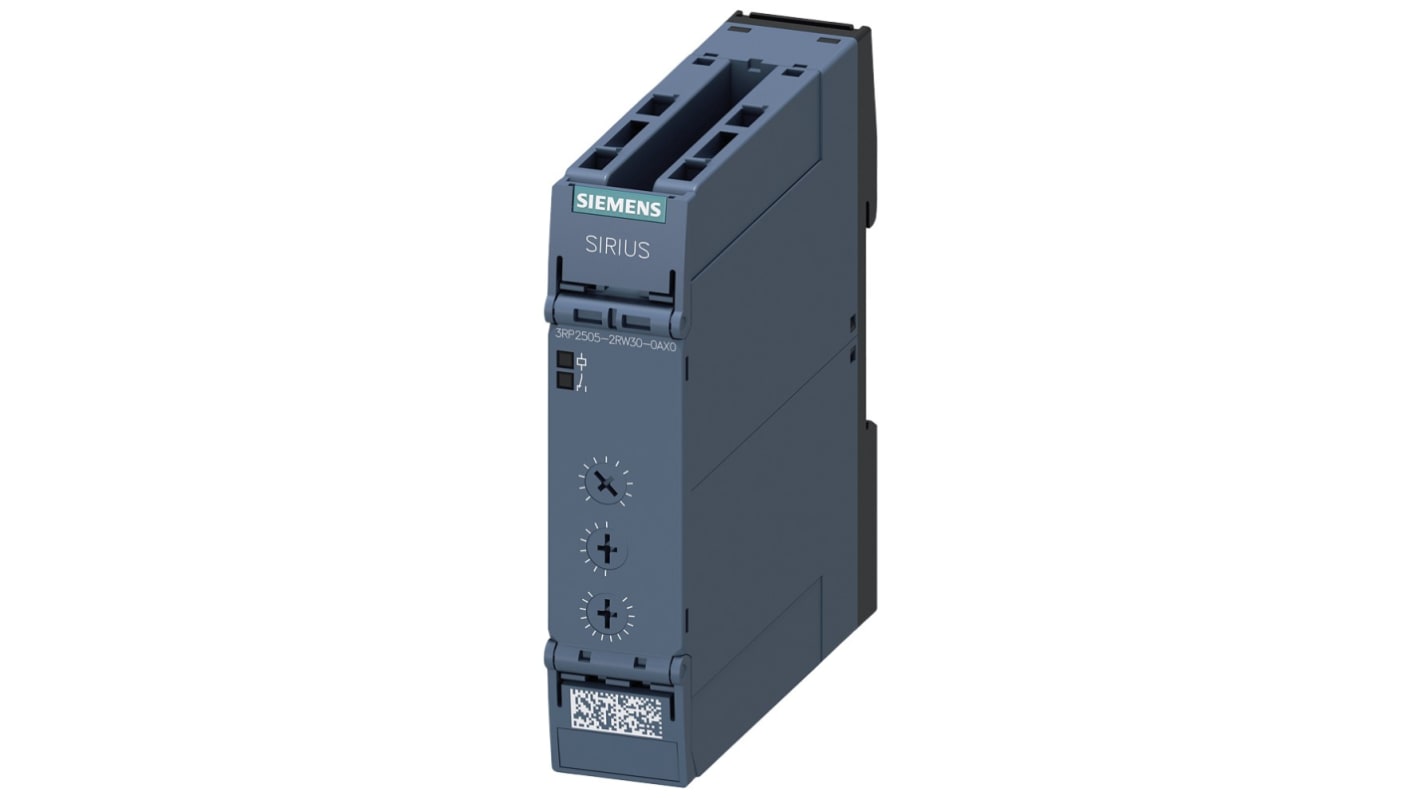

Siemens 3RP25 Series Snap-On Timer Relay, 2-Contact, 24 to 240 V dc 24V ac, 240 V ac, 0.05 to 100 h, 10-Function, DPDT
- N° de stock RS:
- 255-0837
- Référence fabricant:
- 3RP25052RW300AX0
- Fabricant:
- Siemens
Sous-total (1 unité)*
279,77 €
(TVA exclue)
338,52 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Stocké-e par le fabricant
- Prêt à être expédié à partir du 01 juillet 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 279,77 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 255-0837
- Référence fabricant:
- 3RP25052RW300AX0
- Fabricant:
- Siemens
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Siemens | |
| Product Type | Timer Relay | |
| Mount Type | Snap-On | |
| Time Range | 0.05 to 100 h | |
| Number of Contacts | 2 | |
| Number of Timer Functions | 10 | |
| Contact Configuration | DPDT | |
| IP Rating | IP20 | |
| Supply AC Voltage | 24, 240V ac | |
| Minimum Operating Temperature | -25°C | |
| Supply DC Voltage | 24 to 240 V dc | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Series | 3RP25 | |
| Sélectionner tout | ||
|---|---|---|
Marque Siemens | ||
Product Type Timer Relay | ||
Mount Type Snap-On | ||
Time Range 0.05 to 100 h | ||
Number of Contacts 2 | ||
Number of Timer Functions 10 | ||
Contact Configuration DPDT | ||
IP Rating IP20 | ||
Supply AC Voltage 24, 240V ac | ||
Minimum Operating Temperature -25°C | ||
Supply DC Voltage 24 to 240 V dc | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Series 3RP25 | ||
- Pays d'origine :
- DE
The Siemens multifunctional timing relays can be set by means of the function selector switch. Whether both CO contacts are switched in parallel, or one CO contact with a delay and one instantaneously, as well as the choice of time setting range are set by means of the time setting range selector switch. The exact operating time can be adjusted with the operating time switch. Timing relays are used in control, starting, and protective circuits for all switching operations involving time delays. They guarantee a high level of functionality and a high repeat accuracy of timer settings.
Simple inventory management and logistics
Less space required in the control cabinet
Consistent in all functions due to wide voltage range
