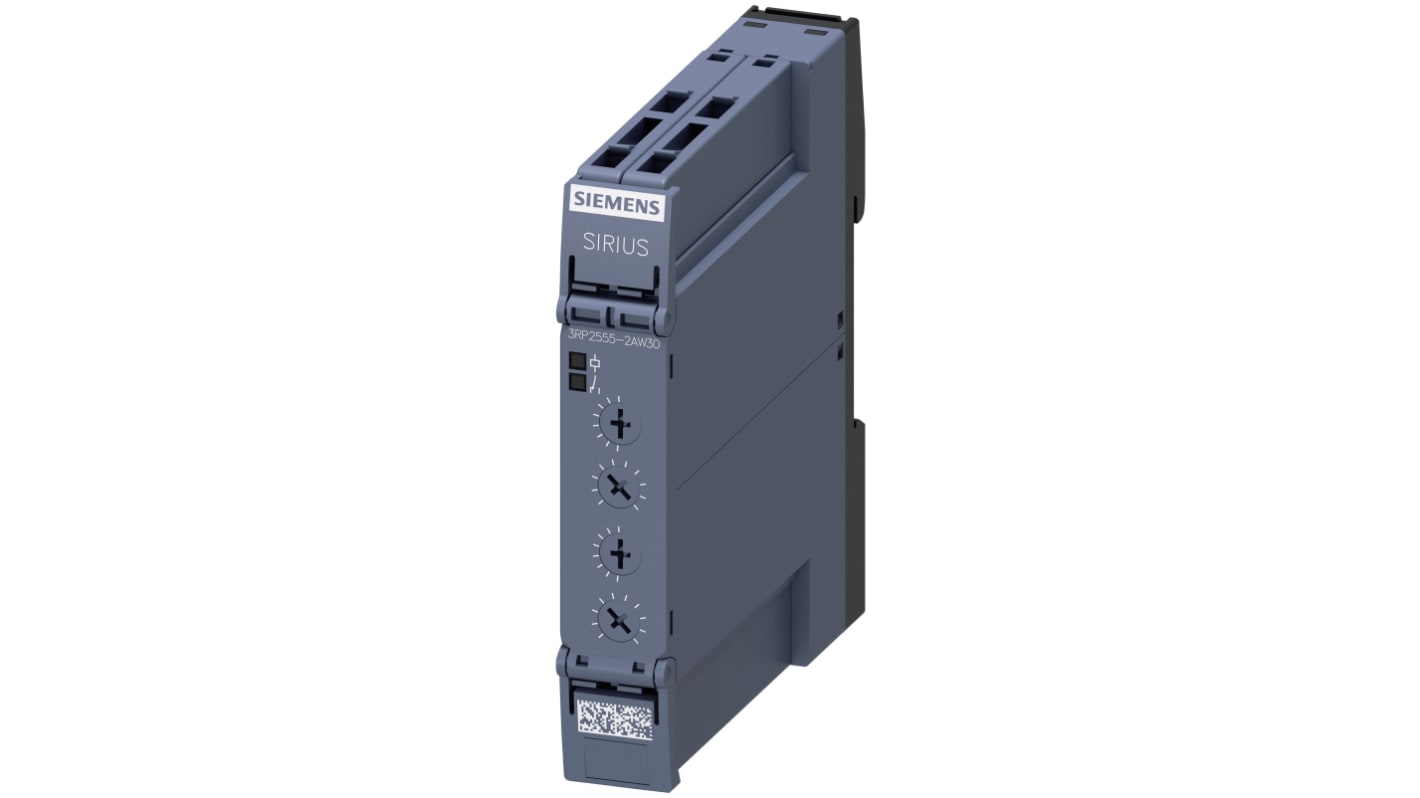

Siemens 3RP25 Series DIN Rail Mount Timer Relay, 12 → 240V ac/dc, 1-Contact, 0.05 s → 100h, 1-Function,
- N° de stock RS:
- 124-9415
- Référence fabricant:
- 3RP2555-2AW30
- Fabricant:
- Siemens
Sous-total (1 unité)*
192,91 €
(TVA exclue)
233,42 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Temporairement en rupture de stock
- Expédition à partir du 09 janvier 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 192,91 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 124-9415
- Référence fabricant:
- 3RP2555-2AW30
- Fabricant:
- Siemens
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Siemens | |
| Supply Voltage | 12 → 240V ac/dc | |
| Mounting Type | DIN Rail | |
| Mode of Operation | Asymmetrical | |
| Time Range | 0.05 s → 100h | |
| Number of Contacts | 1 | |
| Number of Timer Functions | Single | |
| Contact Configuration | SPDT | |
| Time Increment | Hours, Seconds | |
| Maximum Current | 3A | |
| Maximum Voltage | 240V ac/dc | |
| Terminal Type | Push In | |
| Switch Configuration | SPDT | |
| Width | 91.6mm | |
| Minimum Voltage | 12V ac/dc | |
| Power Supply | External | |
| Minimum Current | 0.01A | |
| Length | 17.5mm | |
| Depth | 100mm | |
| Maximum Operating Temperature | +60°C | |
| Series | 3RP25 | |
| Minimum Operating Temperature | -25°C | |
| Contact Material | Silver Tin Oxide | |
| Sélectionner tout | ||
|---|---|---|
Marque Siemens | ||
Supply Voltage 12 → 240V ac/dc | ||
Mounting Type DIN Rail | ||
Mode of Operation Asymmetrical | ||
Time Range 0.05 s → 100h | ||
Number of Contacts 1 | ||
Number of Timer Functions Single | ||
Contact Configuration SPDT | ||
Time Increment Hours, Seconds | ||
Maximum Current 3A | ||
Maximum Voltage 240V ac/dc | ||
Terminal Type Push In | ||
Switch Configuration SPDT | ||
Width 91.6mm | ||
Minimum Voltage 12V ac/dc | ||
Power Supply External | ||
Minimum Current 0.01A | ||
Length 17.5mm | ||
Depth 100mm | ||
Maximum Operating Temperature +60°C | ||
Series 3RP25 | ||
Minimum Operating Temperature -25°C | ||
Contact Material Silver Tin Oxide | ||
- Pays d'origine :
- DE
SIRIUS 3RP25 - Multifunction Timer Relay
Timing relay SIRIUS 3RP25, 27 functions, for all switching operations involving time delays in control, starting, protection and regulation circuits.
Wide range of applications due to wide variety of functions within a very small space. Can be used worldwide thanks to international approvals and wide range of voltages. The innovative enclosure concept in an industrial design offers labelled cover caps, removable terminals and much more.
Available as single or multifunctional time relay with semi-conductor output or as electromechanical relay with or without positively driven operation, in each case with various connection technologies.
The scope of supply already includes adhesive films for marking of functions.
The 3RP25 timing relays replace the well-proven 3RP15 series.
Wide range of applications due to wide variety of functions within a very small space. Can be used worldwide thanks to international approvals and wide range of voltages. The innovative enclosure concept in an industrial design offers labelled cover caps, removable terminals and much more.
Available as single or multifunctional time relay with semi-conductor output or as electromechanical relay with or without positively driven operation, in each case with various connection technologies.
The scope of supply already includes adhesive films for marking of functions.
The 3RP25 timing relays replace the well-proven 3RP15 series.
Features and Benefits:
- Multifunction time relay
- LED indicator
- Screw-type or spring-loaded terminals
- Time range selector switch on the front
- DIN rail mounting
Accessories for 3RP25:
