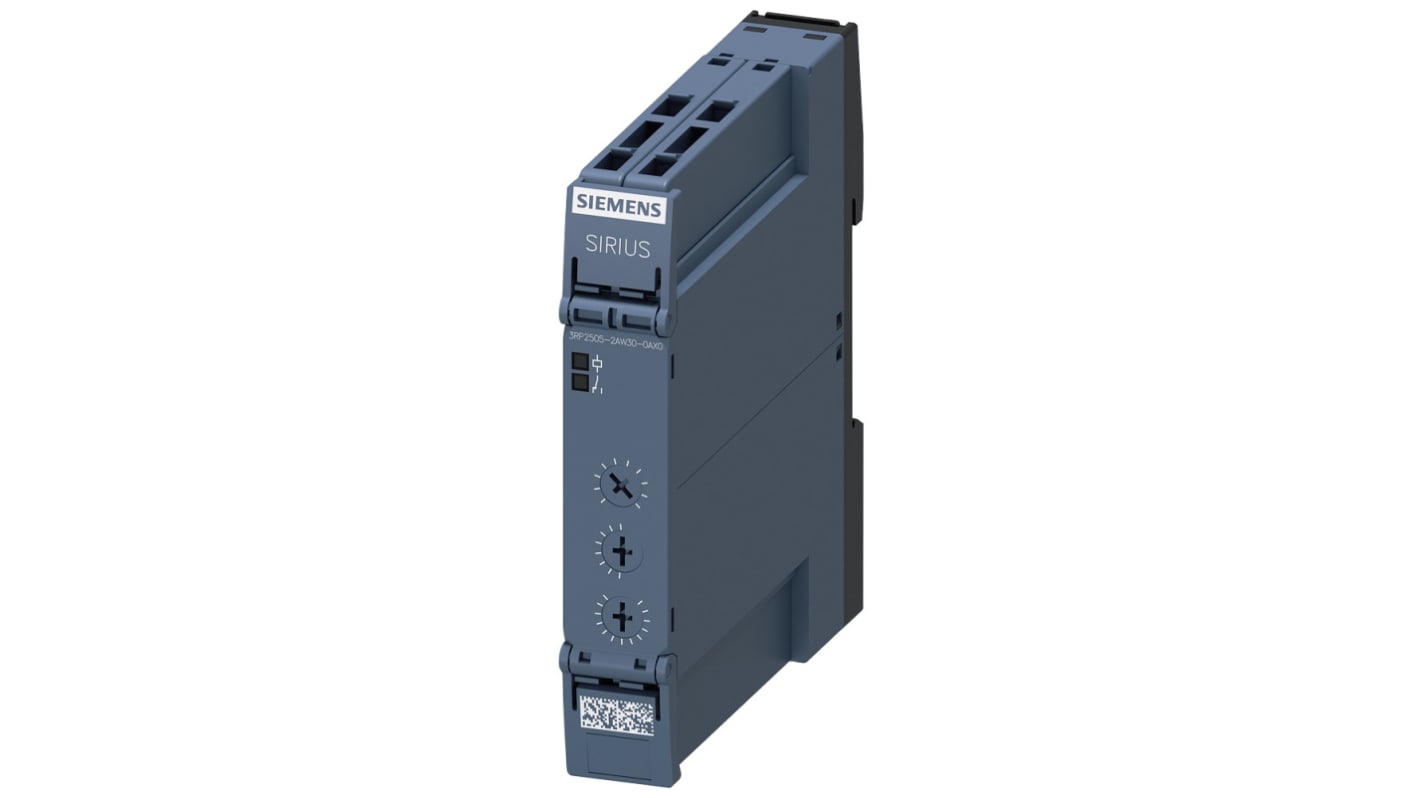

Siemens 3RP25 Series Snap-On Timer Relay, 1-Contact, 12 to 240 V dc 12 V ac, 240 V ac, 0.05 to 100 h, 13-Function, SPDT

Voir l’ensemble des Timer Relays

Sous-total (1 unité)*

200,99 €

(TVA exclue)

243,20 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
Informations sur le stock actuellement non accessibles - Veuillez vérifier plus tard
Unité
Prix par unité
1 +200,99 €

*Prix donné à titre indicatif

N° de stock RS:
255-0835
Référence fabricant:
3RP25052AW300AX0
Fabricant:
Siemens
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Siemens

Product Type

Timer Relay

Mount Type

Snap-On

Time Range

0.05 to 100 h

Number of Contacts

1

Number of Timer Functions

13

Contact Configuration

SPDT

IP Rating

IP20

Supply AC Voltage

12 V ac, 240 V ac

Minimum Operating Temperature

-25°C

Supply DC Voltage

12 to 240 V dc

Maximum Operating Temperature

60°C

Standards/Approvals

RoHS

Series

3RP25

Pays d'origine :
DE
The Siemens multifunctional timing relays can be set by means of the function selector switch. Whether both CO contacts are switched in parallel, or one CO contact with a delay and one instantaneously, as well as the choice of time setting range are set by means of the time setting range selector switch. The exact operating time can be adjusted with the operating time switch. Timing relays are used in control, starting, and protective circuits for all switching operations involving time delays. They guarantee a high level of functionality and a high repeat accuracy of timer settings.

Simple inventory management and logistics

Less space required in the control cabinet

Consistent in all functions due to wide voltage range
