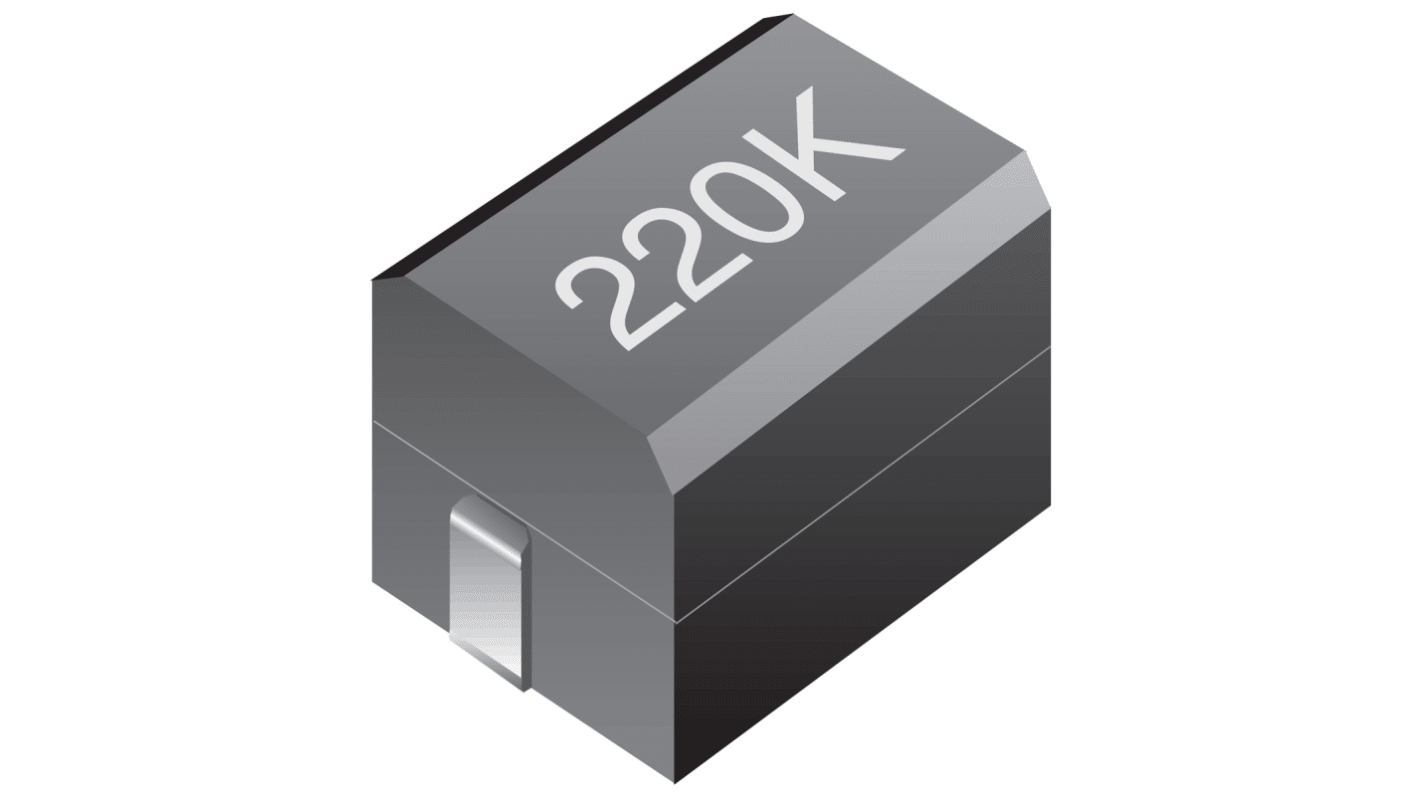

Bourns, CM453232, 453232 Shielded Wirewound Surface Mount Inductor with a Ferrite Core, 560 μH ±10 % 50 mA Idc Q:30
- N° de stock RS:
- 122-9228
- Référence fabricant:
- CM453232-561KL
- Fabricant:
- Bourns
Sous-total (1 paquet de 20 unités)*
4,14 €
(TVA exclue)
5,00 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 200 unité(s) expédiée(s) à partir du 19 août 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le paquet* |
|---|---|---|
| 20 + | 0,207 € | 4,14 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 122-9228
- Référence fabricant:
- CM453232-561KL
- Fabricant:
- Bourns
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Bourns | |
| Product Type | Wirewound Surface Mount Inductor | |
| Inductance | 560μH | |
| Maximum DC Current | 50mA | |
| Package/Case | 453232 | |
| Length | 4.5mm | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Minimum Operating Temperature | -20°C | |
| Pin Count | 4 | |
| Maximum DC Resistance | 30Ω | |
| Inductance Tolerance | ±10 % | |
| Maximum Operating Temperature | 100°C | |
| Series | CM453232 | |
| Height | 3.2mm | |
| Depth | 3.2mm | |
| Termination Style | Surface Mount | |
| Diameter | 178mm | |
| Standards/Approvals | RoHS | |
| Core Material | Ferrite | |
| Maximum Self Resonant Frequency | 3MHz | |
| Inductor Construction | Wirewound | |
| Moulded | Yes | |
| Minimum Quality Factor | 30 | |
| Sélectionner tout | ||
|---|---|---|
Marque Bourns | ||
Product Type Wirewound Surface Mount Inductor | ||
Inductance 560μH | ||
Maximum DC Current 50mA | ||
Package/Case 453232 | ||
Length 4.5mm | ||
Automotive Standard No | ||
Shielding Yes | ||
Minimum Operating Temperature -20°C | ||
Pin Count 4 | ||
Maximum DC Resistance 30Ω | ||
Inductance Tolerance ±10 % | ||
Maximum Operating Temperature 100°C | ||
Series CM453232 | ||
Height 3.2mm | ||
Depth 3.2mm | ||
Termination Style Surface Mount | ||
Diameter 178mm | ||
Standards/Approvals RoHS | ||
Core Material Ferrite | ||
Maximum Self Resonant Frequency 3MHz | ||
Inductor Construction Wirewound | ||
Moulded Yes | ||
Minimum Quality Factor 30 | ||
- Pays d'origine :
- CN
Bourns 1812 CM45 Series Wire Wound Inductors
Bourns Surface mount inductors have accurate dimensions for automatic surface mounting. These SMT inductors have high resistance to heat and humidity, also good resistance to mechanical shock and pressure. The inductors have a wide inductance range (1.0Nh to 1000Μh).
SMT 1812 Inductors (Chokes)
