MOXA Serial Device Server 2, 921.6 kbps Baud Rate

N° de stock RS:: 255-2011
Numéro d'article Distrelec:: 125-73-473
Référence fabricant:: NPort 5250A
Fabricant:: MOXA

MOXA Serial Device Server 2, 921.6 kbps Baud Rate

Sous-total (1 unité)*

331,76 €

(TVA exclue)

401,43 €

(TVA incluse)

Frais de livraison offerts pour toute commande de plus de 90,00 €

En stock

13 unité(s) prête(s) à être expédiée(s)
Plus 4 unité(s) expédiée(s) à partir du 07 septembre 2026
Plus 26 unité(s) expédiée(s) à partir du 02 novembre 2026

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité	Prix par unité
1 +	331,76 €

*Prix donné à titre indicatif

N° de stock RS:: 255-2011
Numéro d'article Distrelec:: 125-73-473
Référence fabricant:: NPort 5250A
Fabricant:: MOXA

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	MOXA
	Product Type	Serial Device Server
	Accessory Type	Server
	Nominal Supply Voltage	12/48 V
	Operating System	Windows XP/2003/Vista/2008/7/8/8.1/10/11
	Number of Ports	2
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	60°C
	Connection Port	DB9 Male, RS232, RJ45
	Standards/Approvals	WEEE, RoHS
	Maximum Baud Rate	921.6kbps

	Sélectionner tout
	Marque MOXA
	Product Type Serial Device Server
	Accessory Type Server
	Nominal Supply Voltage 12/48 V
	Operating System Windows XP/2003/Vista/2008/7/8/8.1/10/11
	Number of Ports 2
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature 60°C
	Connection Port DB9 Male, RS232, RJ45
	Standards/Approvals WEEE, RoHS
	Maximum Baud Rate 921.6kbps

Pays d'origine :: TW

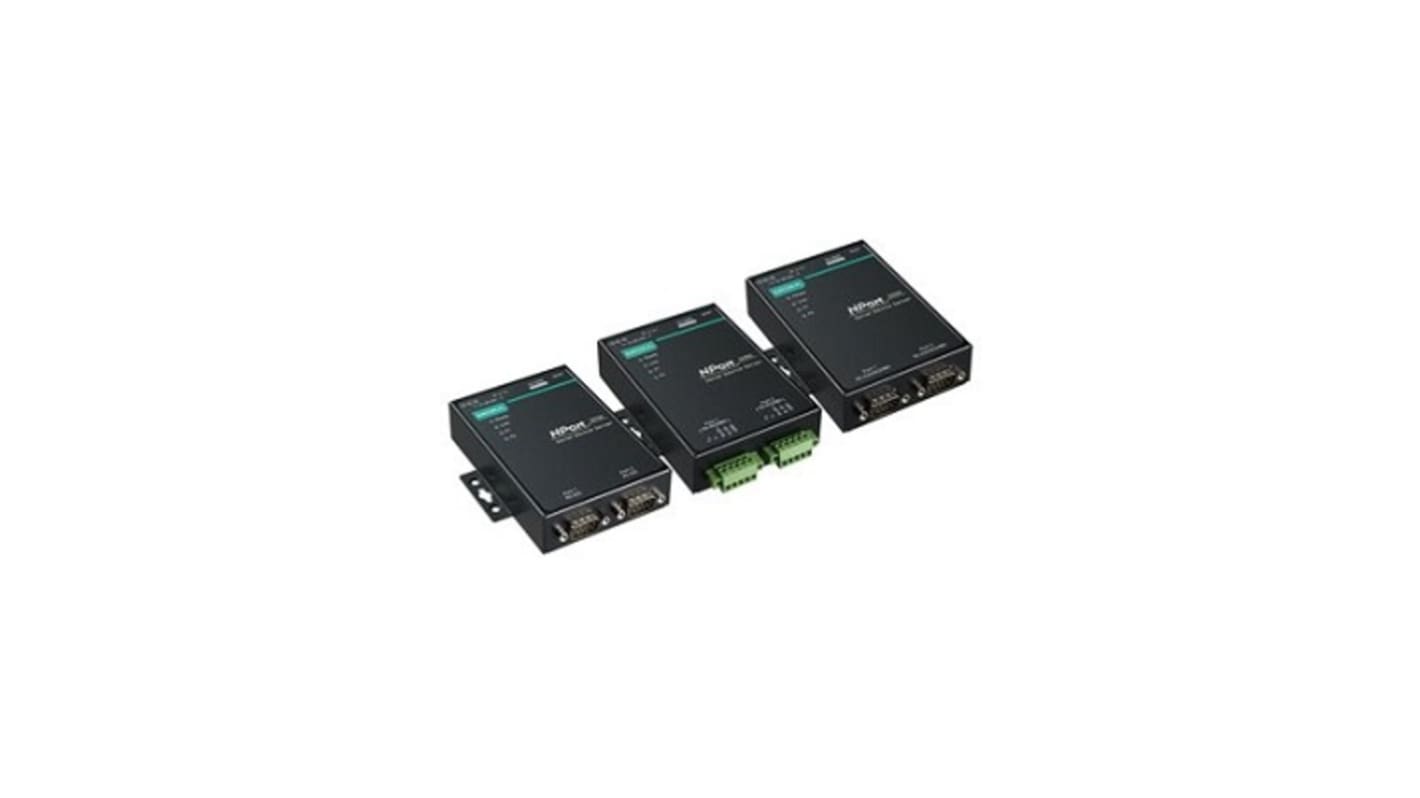

MOXA Serial Device Server, 2 Ports, 12/48V Nominal Supply Voltage - NPort 5250A

This serial device server provides a bridge between serial equipment and Ethernet networks for industrial environments. It supports connection of serial RS232 devices and integrates network connectivity to enable remote access and control. The unit is designed for installation on DIN?rail systems and operates within common industrial temperature ranges while interfacing with standard Windows operating systems.

Features and Benefits:

• Two serial ports enable connection of dual RS232 devices
• DB9 male connector ensures direct legacy device interfacing
• RJ45 Ethernet port allows networked serial communication
• 921.6 kbps serial throughput supports high?speed data transfer
• 12/48V nominal supply enables redundant power arrangements
• Operates from 0 to 60°C for use in controlled industrial zones

Applications

• Suitable for connecting PLCs to Ethernet control systems
• Ideal for remote telemetry of serial sensors over IP networks
• Used with factory?floor machines requiring serial?to?network conversion
• Can be used for SCADA serial device integration into LANs

Which serial standards are supported by the unit?

It provides RS232 signalling for asynchronous serial communication via DB9 male ports.

Which operating systems can interface with the device for configuration?

It is compatible with a range of Windows releases including Windows 10 and Windows 11 for management and driver support.

What environmental limits must be observed during deployment?

The device functions within an ambient range from 0°C up to 60°C for normal operation.

How many serial connections can be served simultaneously?

It supplies two independent serial ports for concurrent device connections.

Are there any conformity marks relevant to disposal and material restrictions?

It conforms to RoHS limits on hazardous substances and meets WEEE requirements for end?of?life handling.
