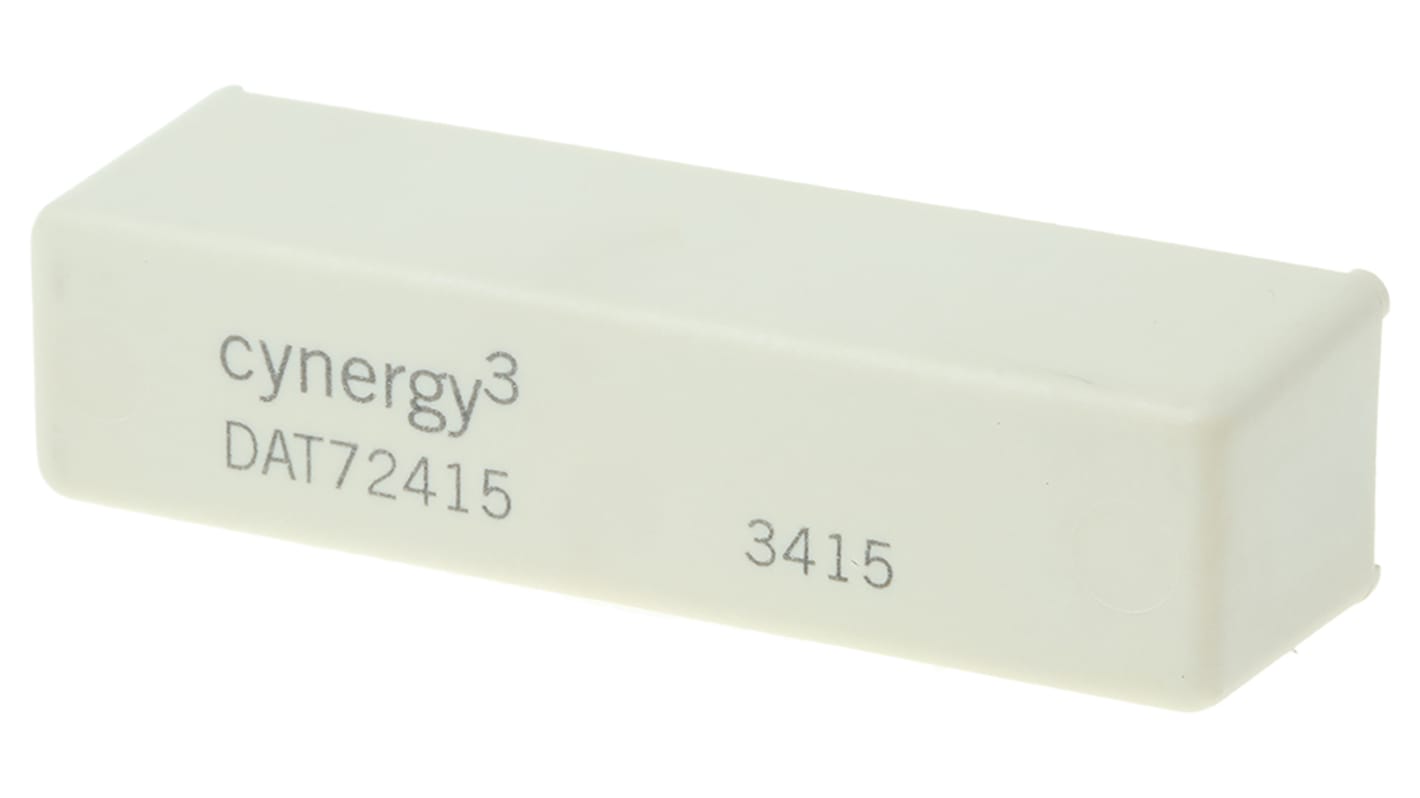

Cynergy3 PCB Reed Relay, 24V dc Coil, SPST, 10000V dc Max, 2A Max, 350 Ω
- N° de stock RS:
- 712-1167
- Numéro d'article Distrelec:
- 137-40-057
- Référence fabricant:
- DAT72415
- Fabricant:
- Cynergy3
Bénéficiez d'une remise sur les achats en gros
Ajoutez 10 de plus pour économiser 34,10 €
Consulter les options de prix de grosSous-total (1 unité)*
77,56 €
(TVA exclue)
93,85 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- 580 unité(s) expédiée(s) à partir du 11 décembre 2026
- Plus 880 unité(s) expédiée(s) à partir du 25 décembre 2026
- Plus 2 760 unité(s) expédiée(s) à partir du 22 janvier 2027
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | Économie |
|---|---|---|
| 1 - 9 | 77,56 € | - |
| 10 - 49 | 74,15 € | 34,10 € |
| 50 - 99 | 71,04 € | 326,00 € |
| 100 + | 68,49 € | 907,00 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 712-1167
- Numéro d'article Distrelec:
- 137-40-057
- Référence fabricant:
- DAT72415
- Fabricant:
- Cynergy3
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Cynergy3 | |
| Product Type | Reed Relay | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Coil Power | 50W | |
| Coil Resistance | 350Ω | |
| Terminal Type | Through Hole | |
| Switching Power | 50W | |
| Operating Time | 3ms | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Height | 18.5mm | |
| Length | 60mm | |
| Series | DAT | |
| Standards/Approvals | UL | |
| Isolation Coil To Contact | 15kV ac/dc | |
| Contact Resistance | 250mΩ | |
| Latching | No | |
| Sélectionner tout | ||
|---|---|---|
Marque Cynergy3 | ||
Product Type Reed Relay | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Coil Power 50W | ||
Coil Resistance 350Ω | ||
Terminal Type Through Hole | ||
Switching Power 50W | ||
Operating Time 3ms | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Height 18.5mm | ||
Length 60mm | ||
Series DAT | ||
Standards/Approvals UL | ||
Isolation Coil To Contact 15kV ac/dc | ||
Contact Resistance 250mΩ | ||
Latching No | ||
- Pays d'origine :
- CN
Sensata Cynergy3 Reed Relay, 24V DC, 50W - DA(UL) Series - DAT72415
Electromagnetically control your high-voltage reed switch with this reed relay from Sensata Cynergy3. The relay's contact pins have a high current carrying capacity, so they can control the electromagnet in the reed switch and turn it on or off. As the contacts are made of tungsten, they're heat-resistant so you can easily solder them for a more secure connection. The relay has a maximum switching voltage of 10,000V AC/DC, making it a good choice for use in applications requiring a very high voltage. You can mount this relay onto a PCB (printed circuit board) on a range of devices, including a cardiac defibrillator, a Triac trigger or a power supply.
Features & Benefits
• Fast operating time of 3 milliseconds (including bounce) for a quick response
• One billion dry switching operational cycles for long-lasting use
• Compact dimensions of 60 (length) x 15.8 (width) x 18.5mm (height) for use in areas where space is limited
Can this reed relay withstand harsh temperatures?
Yes, this reed relay has a wide operating temperature range of -20°C to +70°C for use in demanding environments.
HV Vacuum Encapsulated D Series
These high voltage PCB and panel mount reed relays have high isolation voltages of up to 15kV. Applications include test equipment and high voltage power supplies. All models are highly reliable and are of extremely good quality.
High power switching
Through hole PCB & panel mount or flying lead versions
15kV high isolation versions available
Tungsten contacts enable high voltage switching
