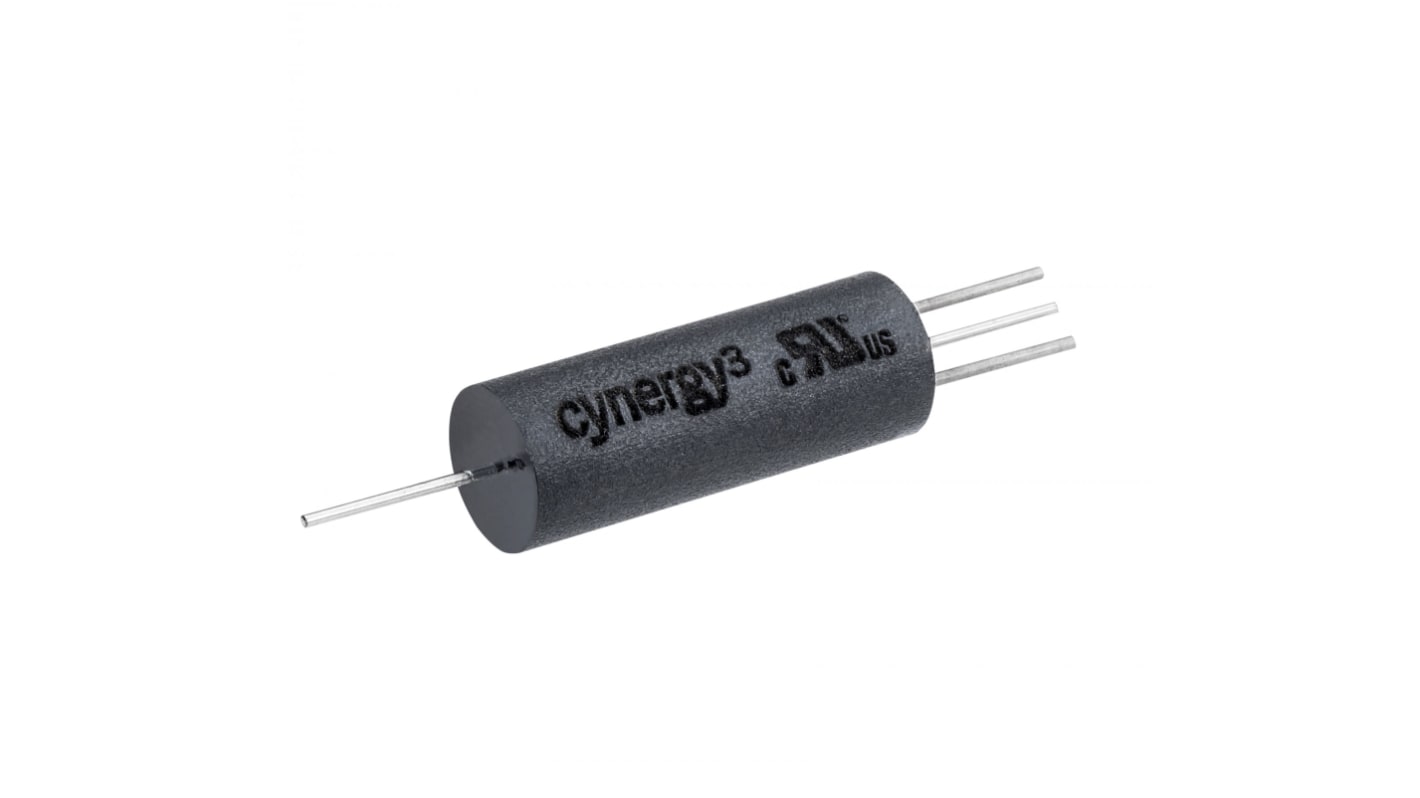

Sensata Cynergy3 PCB Mount Reed Relay, 5V dc Coil, SPST, 350V Max, 0.7 A Max, 160Ω

Offre groupée disponible

Sous-total (1 unité)**

15,87 €

(TVA exclue)

19,20 €

(TVA incluse)

Article en cours d'approvisionnement. Merci de bien vouloir nous contacter.*

* Les dates de livraison peuvent varier selon la quantité choisie et l'adresse de livraison.

**Prix donné à titre indicatif

Liens connexes

Attribut	Valeur
Contact Configuration	SPST
Coil Voltage	5V dc
Mounting Type	PCB Mount
Maximum Switching Current AC	0.5 A
Maximum Switching Current DC	0.7 A
Maximum Switching Voltage AC	300V
Maximum Switching Voltage DC	350V
Coil Resistance	160Ω
Length	22.86mm
Depth	7.62 (Dia.)mm
Dimensions	7.62 (Dia.) x 22.86mm
Isolation Coil To Contact	1kV dc
Operating Time Including Bounce	1ms
Operating Temperature Range	-40 → +85°C
Maximum Switching Power AC	70VA
Life	1000000 (Resistive Load) operations, 1000000000 (Dry) operations
Terminal Type	Axial
Contact Material	Rhodium
Number of Poles	1
Relay Switching Classification	General Purpose Relay
Standards Met	cULus Recognised, UL Approved
Special Features	Variable mΩunting Options
Contact Resistance	100 mΩ
Maximum Switching Power DC	50 W
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+85°C
