Cynergy3 PCB Reed Relay, 3V dc Coil, SPST, 200V dc Max, 0.25A Max, 250 Ω
- N° de stock RS:
- 124-5129
- Référence fabricant:
- S2-03PU/RS
- Fabricant:
- Cynergy3
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
16,35 €
(TVA exclue)
19,78 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- 31 unité(s) expédiée(s) à partir du 12 octobre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 24 | 16,35 € |
| 25 - 49 | 15,73 € |
| 50 - 99 | 15,15 € |
| 100 - 249 | 14,60 € |
| 250 + | 14,13 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 124-5129
- Référence fabricant:
- S2-03PU/RS
- Fabricant:
- Cynergy3
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Cynergy3 | |
| Product Type | Reed Relay | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Coil Power | 10W | |
| Terminal Type | Axial | |
| Coil Resistance | 250Ω | |
| Operating Time | 0.1ms | |
| Switching Power | 10W | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 4mm | |
| Series | S2 (UL) | |
| Length | 22.86mm | |
| Standards/Approvals | UR | |
| Isolation Coil To Contact | 1kV dc | |
| Contact Resistance | 100mΩ | |
| Latching | No | |
| Sélectionner tout | ||
|---|---|---|
Marque Cynergy3 | ||
Product Type Reed Relay | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Coil Power 10W | ||
Terminal Type Axial | ||
Coil Resistance 250Ω | ||
Operating Time 0.1ms | ||
Switching Power 10W | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Height 4mm | ||
Series S2 (UL) | ||
Length 22.86mm | ||
Standards/Approvals UR | ||
Isolation Coil To Contact 1kV dc | ||
Contact Resistance 100mΩ | ||
Latching No | ||
- Pays d'origine :
- CN

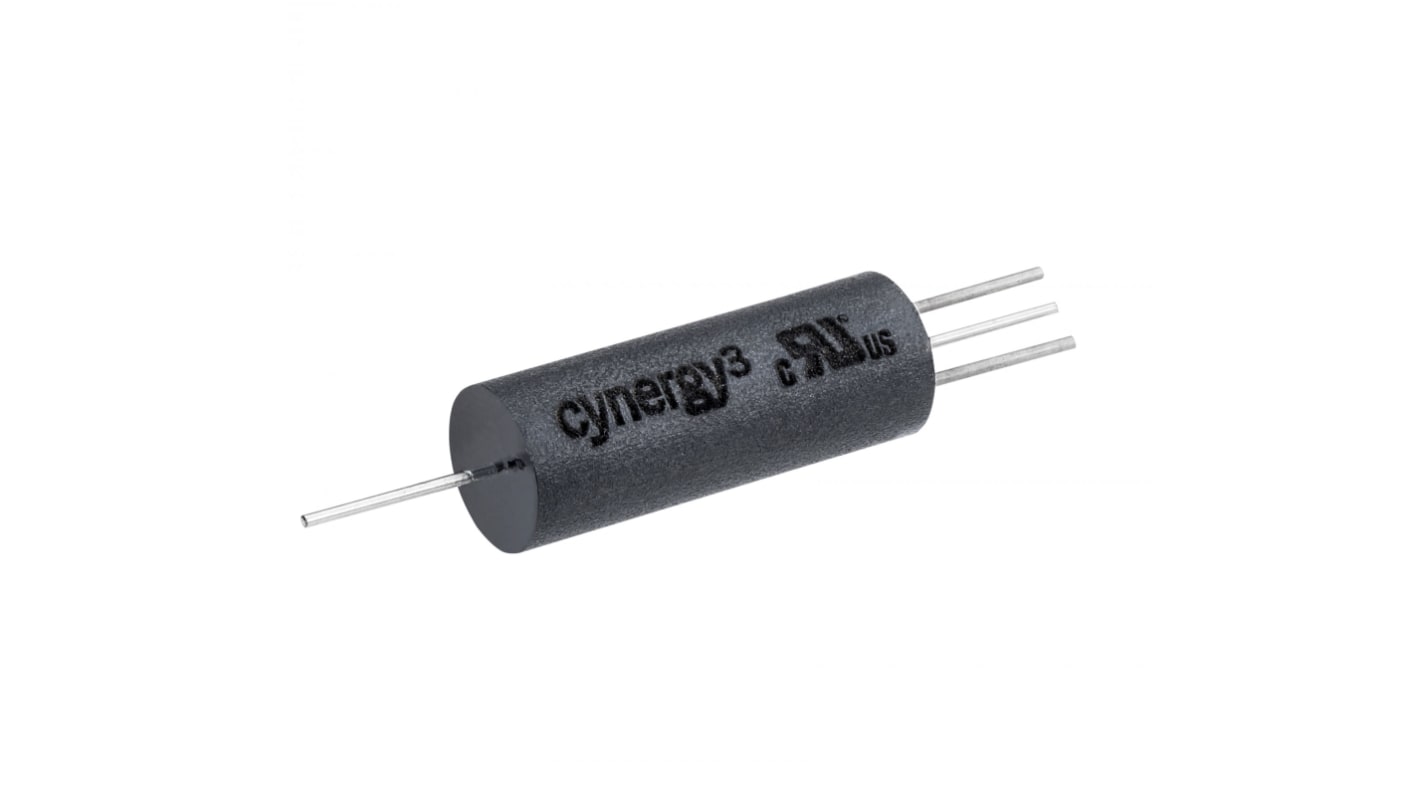

Sensata Cynergy3 Flexible Reed Relay, 3V DC Coil Voltage, SPNO - S2 Relay Series - S2-03PU/RS
Use this reed relay from Sensata Cynergy3 for reliable switching in your electrical circuit. It's designed for PCB (printed circuit board) mounting and has bendable pins for ease of connection in tight spaces. The device's compact dimensions of 7.62 (diameter) x 22.86mm (length) make it a good choice for use in areas where space is limited. It can also be mounted in a number of positions for enhanced versatility. Reed relays like this one are commonly used in medical equipment and testing applications.
Features & Benefits
• Wide operating temperature range of -40°C to +85°C for use in demanding environments
• Long lifespan of one billion dry operations for reliability and long-lasting performance
• Fast operating time of just 0.1ms for quick response times
• Maximum switching voltage of 140V AC (alternating current) or 200V DC (direct current) for use in general-purpose applications
What type of contacts does this reed relay have?
This reed relay has contacts made of highly conductive ruthenium, which allows for quick electrical energy conversion. Ruthenium is also resistant to wear, making it a durable choice.
