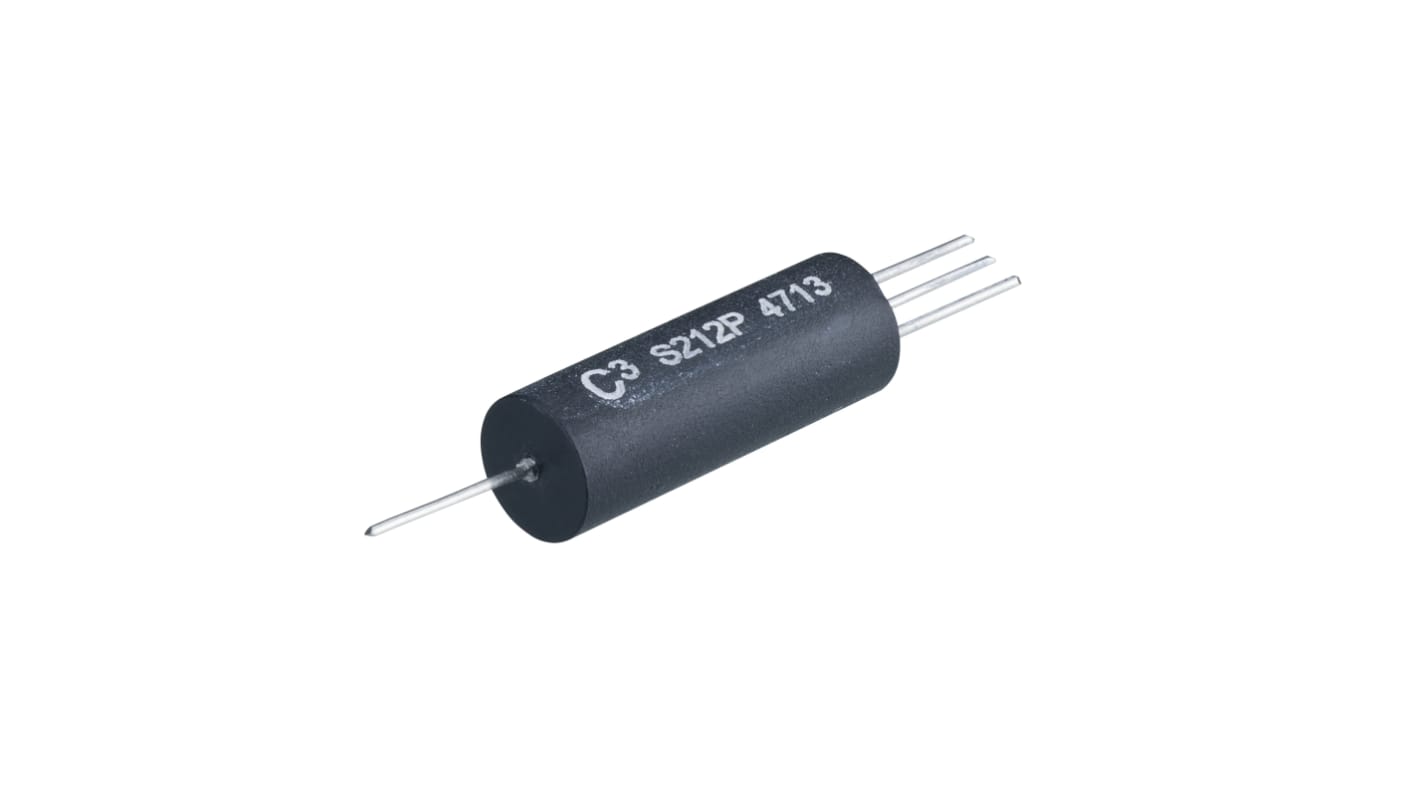

Cynergy3 PCB, PCB Reed Relay, 24V dc Coil, SPST, 350V Max, 1A Max, 1000 Ω

Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau disponible. RS a l'intention de le retirer de son assortiment sous peu.
N° de stock RS:
817-2289
Référence fabricant:
S2-24E
Fabricant:
Cynergy3
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Cynergy3

Contact Configuration

SPST

Product Type

Reed Relay

Mount Type

PCB, PCB

Coil Power

100VA

Terminal Type

PCB Terminal

Coil Resistance

1000Ω

Switching Power

100VA

Operating Time

1ms

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Height

4mm

Length

22.86mm

Standards/Approvals

UR

Series

S1

Isolation Coil To Contact

1kV

Contact Resistance

80mΩ

Latching

No

Pays d'origine :
GB

Axial style reed relay


The Cynergy3 S2 series reed relay has been developed for applications where PCB mounting is not possible. To ease assembly into equipment the lead-out wires are very flexible and to suit specific applications these axial style reed relays can be mounted in a variety of methods and orientations. S2 series reed relay is available with a 50 W contact in a pressurised reed switch or a 100 W contact in an evacuated reed switch.

Variable mounting options

50 W and 100 W contact options

Reliable reed switch contacts

Cynergy3 - S2 relay series
