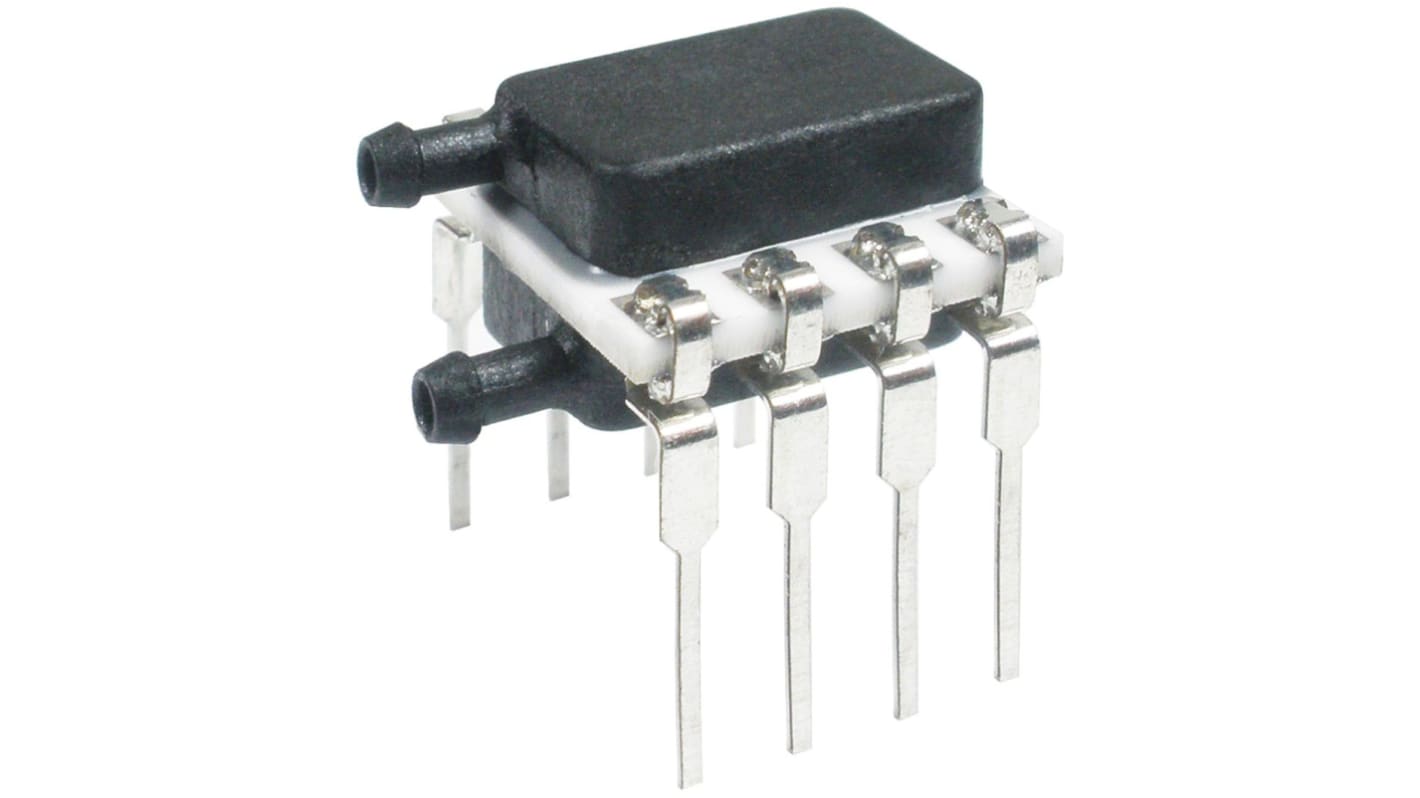

Name: Honeywell Technologies SSCDRRN005ND2A5 Differential Pressure SensorThrough Hole 8 DIP
Brand: Honeywell
SKU: 214-1510
Price: 56.635 EUR
Availability: BackOrder

Unitésélectionner ou taper la quantité

Temporairement en rupture de stock

Expédition à partir du 23 décembre 2026

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Honeywell
	Sensor Type	Differential Pressure Sensor
	Product Type	Differential Pressure Sensor
	Mount Type	Through Hole
	Package Type	DIP
	Pin Count	8
	Minimum Supply Voltage	3.3V
	Maximum Operating Pressure	+5 in/H2O
	Maximum Supply Voltage	5V
	Accuracy	±0.25 %
	Port Type	Dual Radial Barbed
	Maximum Operating Temperature	85°C
	Series	SSC
	Height	13.75mm
	Length	10mm
	Width	13.5mm
	Standards/Approvals	No
	Minimum Operating Pressure	-5in/H2O
	Automotive Standard	No
	Minimum Operating Temperature	-40°C

	Sélectionner tout
	Marque Honeywell
	Sensor Type Differential Pressure Sensor
	Product Type Differential Pressure Sensor
	Mount Type Through Hole
	Package Type DIP
	Pin Count 8
	Minimum Supply Voltage 3.3V
	Maximum Operating Pressure +5 in/H2O
	Maximum Supply Voltage 5V
	Accuracy ±0.25 %
	Port Type Dual Radial Barbed
	Maximum Operating Temperature 85°C
	Series SSC
	Height 13.75mm
	Length 10mm
	Width 13.5mm
	Standards/Approvals No
	Minimum Operating Pressure -5in/H2O
	Automotive Standard No
	Minimum Operating Temperature -40°C

Honeywell SSC Series Differential Pressure Sensor, ±0.25% Accuracy - SSCDRRN005ND2A5

This differential pressure sensor measures small pressure differences in low-range applications and operates from low-voltage supplies. It is designed for through-hole mounting with a DIP package and provides differential readings between two barbed ports. The device functions across a broad temperature range and is suitable for systems requiring precise control of slight pressure variations.

Features and Benefits:

• ±0.25% accuracy provides precise differential measurement
• Operates from 3.3V to 5V supporting low-voltage systems
• Differential sensing from -5in/H2O to +5in/H2O enables low-range monitoring
• Dual radial barbed ports allow easy tubing connections
• Through-hole 8-pin DIP ensures secure PCB mounting

Applications

• Suitable for HVAC airflow monitoring and control systems
• Ideal for cleanroom differential pressure surveillance
• Used with duct pressure balancing equipment
• Can be used for filter blockage detection systems
• Suitable for laboratory low-pressure measurement setups

What supply voltages will the device accept?

It functions with supply voltages from 3.3V up to 5V.

What ambient temperatures can it withstand during operation?

It operates reliably between -40°C and 85°C.

How is the sensor connected to tubing in a system?

It provides dual radial barbed ports designed for push-on tubing connections.

How many electrical pins are provided and what mounting style is used?

It uses an 8-pin configuration in a through-hole DIP package.

2 831,75 €

(TVA exclue)

56,635 €/unité

Honeywell Technologies SSCDRRN005ND2A5 Differential Pressure SensorThrough Hole 8 DIP
