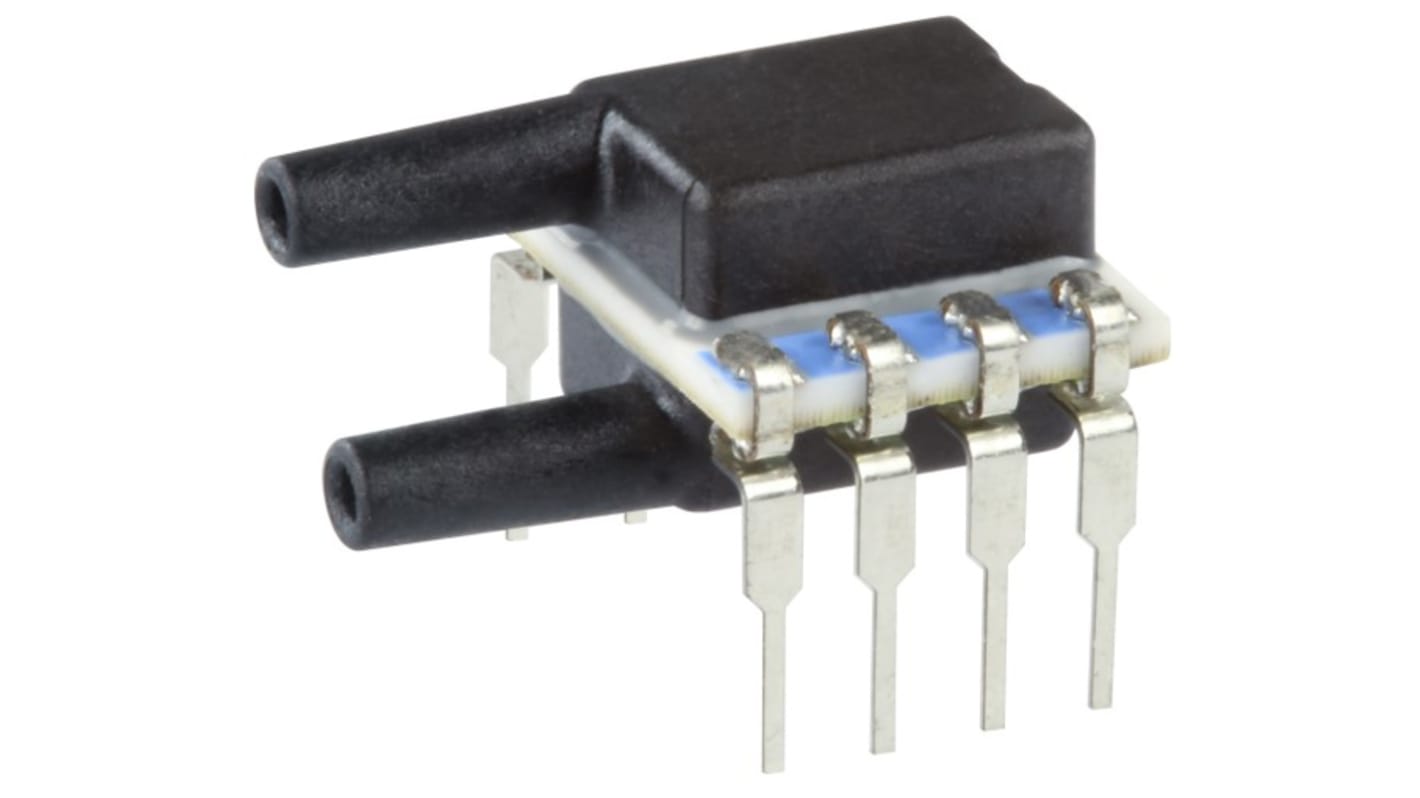

Honeywell NSCDJJN005NDUNV Differential Pressure SensorThrough Hole 8 DIP
- N° de stock RS:
- 214-1479
- Référence fabricant:
- NSCDJJN005NDUNV
- Fabricant:
- Honeywell
Sous-total (1 boîte de 50 unités)*
2 969,80 €
(TVA exclue)
3 593,45 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En voie de retrait du marché
- 50 dernière(s) unité(s), prête(s) à l'envoi d'un autre centre de distribution
Unité | Prix par unité | La Boite* |
|---|---|---|
| 50 + | 59,396 € | 2 969,80 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 214-1479
- Référence fabricant:
- NSCDJJN005NDUNV
- Fabricant:
- Honeywell
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Honeywell | |
| Sensor Type | Differential Pressure Sensor | |
| Product Type | Differential Pressure Sensor | |
| Mount Type | Through Hole | |
| Package Type | DIP | |
| Pin Count | 8 | |
| Minimum Supply Voltage | 1.5V | |
| Maximum Operating Pressure | 2 in/H2O | |
| Port Type | Dual Radial Barbless Same Side | |
| Accuracy | ±0.25 % | |
| Maximum Supply Voltage | 12V | |
| Maximum Operating Temperature | 85°C | |
| Height | 6.51mm | |
| Length | 9.91mm | |
| Series | NSC | |
| Standards/Approvals | No | |
| Minimum Operating Pressure | -5in/H2O | |
| Automotive Standard | No | |
| Minimum Operating Temperature | -40°C | |
| Sélectionner tout | ||
|---|---|---|
Marque Honeywell | ||
Sensor Type Differential Pressure Sensor | ||
Product Type Differential Pressure Sensor | ||
Mount Type Through Hole | ||
Package Type DIP | ||
Pin Count 8 | ||
Minimum Supply Voltage 1.5V | ||
Maximum Operating Pressure 2 in/H2O | ||
Port Type Dual Radial Barbless Same Side | ||
Accuracy ±0.25 % | ||
Maximum Supply Voltage 12V | ||
Maximum Operating Temperature 85°C | ||
Height 6.51mm | ||
Length 9.91mm | ||
Series NSC | ||
Standards/Approvals No | ||
Minimum Operating Pressure -5in/H2O | ||
Automotive Standard No | ||
Minimum Operating Temperature -40°C | ||
The Honeywell TruStability NSC Series Board Mount Pressure sensor, with DIP package and JJ Pressure port, is a piezoresistive silicon pressure sensor offering a ratiometric analog output.
Uncompensated and unamplified.
Allows customers the flexibility of performing their own calibration.
