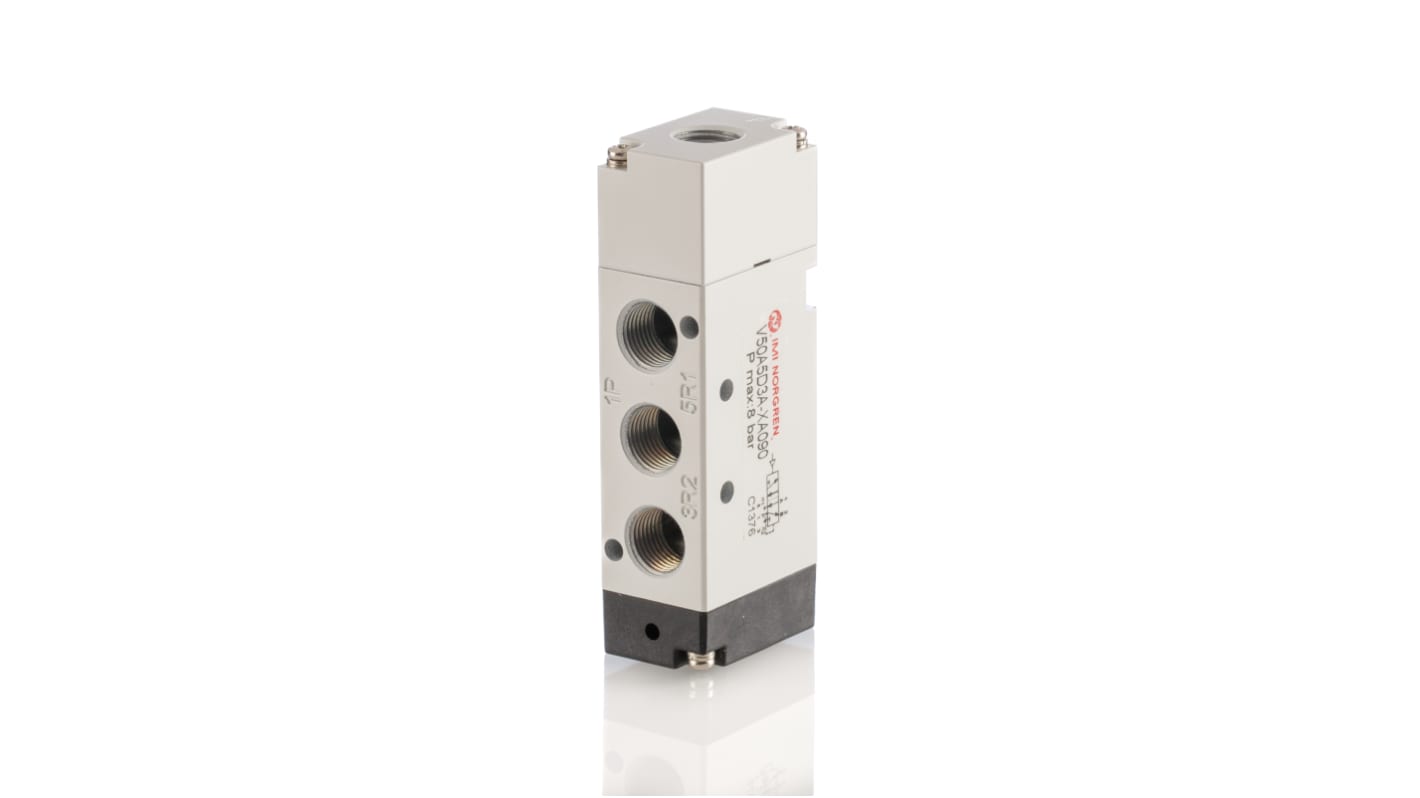

RS PRO Pneumatic Distributor - Pilot/Spring G V50 Series
- N° de stock RS:
- 907-6403
- Fabricant:
- RS PRO
Sous-total (1 unité)*
109,24 €
(TVA exclue)
132,18 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 5 unité(s) prête(s) à être expédiée(s)
- Plus 16 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 109,24 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 907-6403
- Fabricant:
- RS PRO
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | RS PRO | |
| Product Type | Pneumatic Distributor | |
| Port Size | 1/8 in | |
| Connection Thread Standard | G | |
| Actuation Type | Pilot/Spring | |
| Series | V50 | |
| Number of Ports | 5 | |
| Maximum Operating Pressure | 8 bar | |
| Body Material | Die Cast Aluminium | |
| Minimum Operating Temperature | -5°C | |
| Maximum Flow Rate | 480L/min | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | No | |
| Number of Positions | 2 | |
| Thread Size | 1/8 in | |
| Sélectionner tout | ||
|---|---|---|
Marque RS PRO | ||
Product Type Pneumatic Distributor | ||
Port Size 1/8 in | ||
Connection Thread Standard G | ||
Actuation Type Pilot/Spring | ||
Series V50 | ||
Number of Ports 5 | ||
Maximum Operating Pressure 8 bar | ||
Body Material Die Cast Aluminium | ||
Minimum Operating Temperature -5°C | ||
Maximum Flow Rate 480L/min | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals No | ||
Number of Positions 2 | ||
Thread Size 1/8 in | ||
- Pays d'origine :
- GB
5/2 Inline Control Valves
RS Components range of inline pneumatic control valves are available in either 3/2 or 5/2 functions with a choice of either solenoid or air operation. They are suitable for both lubricated and non-lubricated air supply. Using a compact and robust soft-seal spool design that has proven to be robust and reliable. These pneumatic control valves have been engineered to provide a quality pneumatic valve at a competitive price without compromise.
5/2 or 3/2 port options
Available as solenoid or air controlled
Compact & reliable soft-spool design
480 to 2480 l/min flow rates
Inline or manifold mountable
Push or turn to lock manual overrides
Energy efficient
RS Control Valves and Accessories
RS Spool Valves, Spool Valve Bodies, NAMUR Solenoid-Spring Valves, Power Take-Off (PTO) Valves, Intrinsically Safe (ATEX approved) Solenoid-Spring Valves and the Filter-Regulator-Lubricator (FRL) Portable Air Cradle, suitable for use within a variety of general pneumatic, industrial, automation and control applications.
