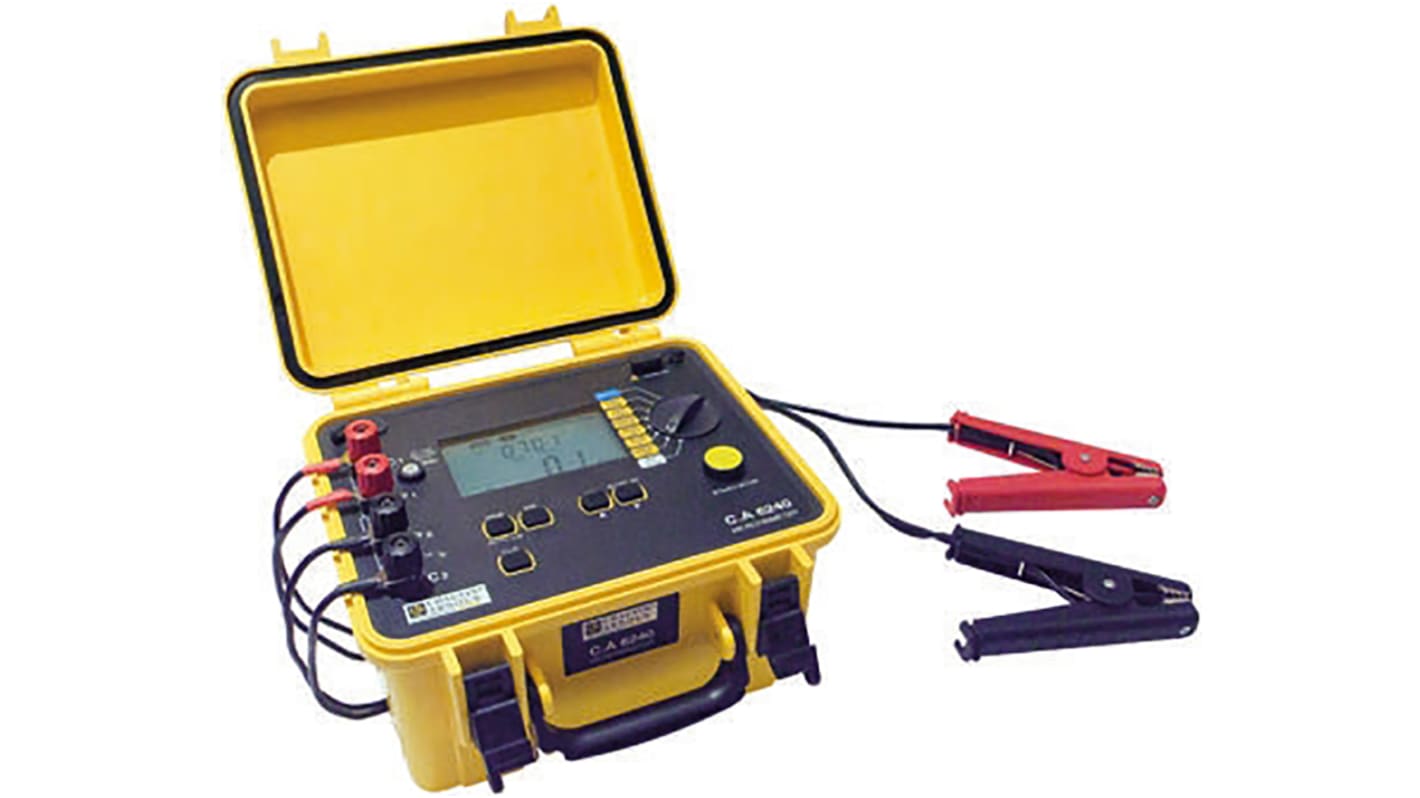

Chauvin Arnoux CA 6240 Ohmmeter, 399 Ω Max, 1μΩ Resolution, 4 Wire - RS Calibrated

Voir l’ensemble des Ohmmeters

Sous-total (1 unité)*

3 292,69 €

(TVA exclue)

3 984,15 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • 6 unité(s) prête(s) à être expédiée(s)
  • Plus 4 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 +3 292,69 €

*Prix donné à titre indicatif

N° de stock RS:
911-9658
Référence fabricant:
P01143200
Fabricant:
Chauvin Arnoux
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Chauvin Arnoux

Maximum Resistance Measurement

399 Ω

Resistance Measurement Resolution

1µΩ

Measurement Type

4 Wire

Calibrated

RSCAL

Battery Type

Rechargeable NiMH

Power Source

Battery

Weight

5kg

Height

280mm

Length

273mm

Maximum Accuracy

+0.25% + 2 digits

Model Number p

CA 6240

Minimum Accuracy

±0.25% + 2 digits

Width

247mm

Statut RoHS : Exempté

Pays d'origine :
FR

CA6240 10A Low Resistance Micro-ohmmeter


Portable 10A Micro-ohmeter for testing the quality of mechanically bonded metalwork, contacts and switches, resistance of cables and heating of motors and transformers.

Large backlit LCD display
Broad measurement range 5μΩ to 400Ω
4 wire measurement which eliminates the effects of lead and contact resistance.
Repetitive measurement mode; a time saving feature that takes measurements without having to press a key as soon as continuity is established between the 2 measurement points
Automatic recording mode: stores each measurement result in the memory without having to press a key.
Automatic detection of the presence of external AC or DC voltages on the terminals to disable measurements where accuracy cannot be guaranteed
Voltmeter display of voltage present on terminals
Memory storage of 1,500 measurements
USB interface for connection to a PC, software supplied
Rechargeable NiMH battery with integral charger and display of available battery life
Ingress protected to IP53 (case open)
Complies with EN61010-1 CAT III, 50V

Supplied with

2m power lead, 1 set of 2 x 10 A Kelvin clamps with a 3m cable, optical / USB communication cable, "Microhmview" software, quick start guide , operating manual in 5 languages & accessories carry bag
