Chauvin Arnoux Handheld Ohmmeter, 100 nΩ, 4 Wire
- N° de stock RS:
- 174-7893
- Référence fabricant:
- P01143221
- Fabricant:
- Chauvin Arnoux
Sous-total (1 unité)*
5 039,90 €
(TVA exclue)
6 098,28 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 4 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 5 039,90 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 174-7893
- Référence fabricant:
- P01143221
- Fabricant:
- Chauvin Arnoux
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Chauvin Arnoux | |
| Product Type | Ohmmeter | |
| Resistance Resolution | 100nΩ | |
| Measurement Type | 4 Wire | |
| Battery Type | Rechargeable Nickel-Metal Hydride | |
| Power Source | Battery | |
| Handheld | Yes | |
| Minimum Operating Temperature | 0°C | |
| Maximum Accuracy | 0.05 + 300 mΩ % | |
| Maximum Operating Temperature | 50°C | |
| Length | 270mm | |
| Width | 250mm | |
| Standards/Approvals | CE | |
| Weight | 4kg | |
| Height | 180mm | |
| Minimum Accuracy | ±0.05 % | |
| Sélectionner tout | ||
|---|---|---|
Marque Chauvin Arnoux | ||
Product Type Ohmmeter | ||
Resistance Resolution 100nΩ | ||
Measurement Type 4 Wire | ||
Battery Type Rechargeable Nickel-Metal Hydride | ||
Power Source Battery | ||
Handheld Yes | ||
Minimum Operating Temperature 0°C | ||
Maximum Accuracy 0.05 + 300 mΩ % | ||
Maximum Operating Temperature 50°C | ||
Length 270mm | ||
Width 250mm | ||
Standards/Approvals CE | ||
Weight 4kg | ||
Height 180mm | ||
Minimum Accuracy ±0.05 % | ||
- Pays d'origine :
- FR

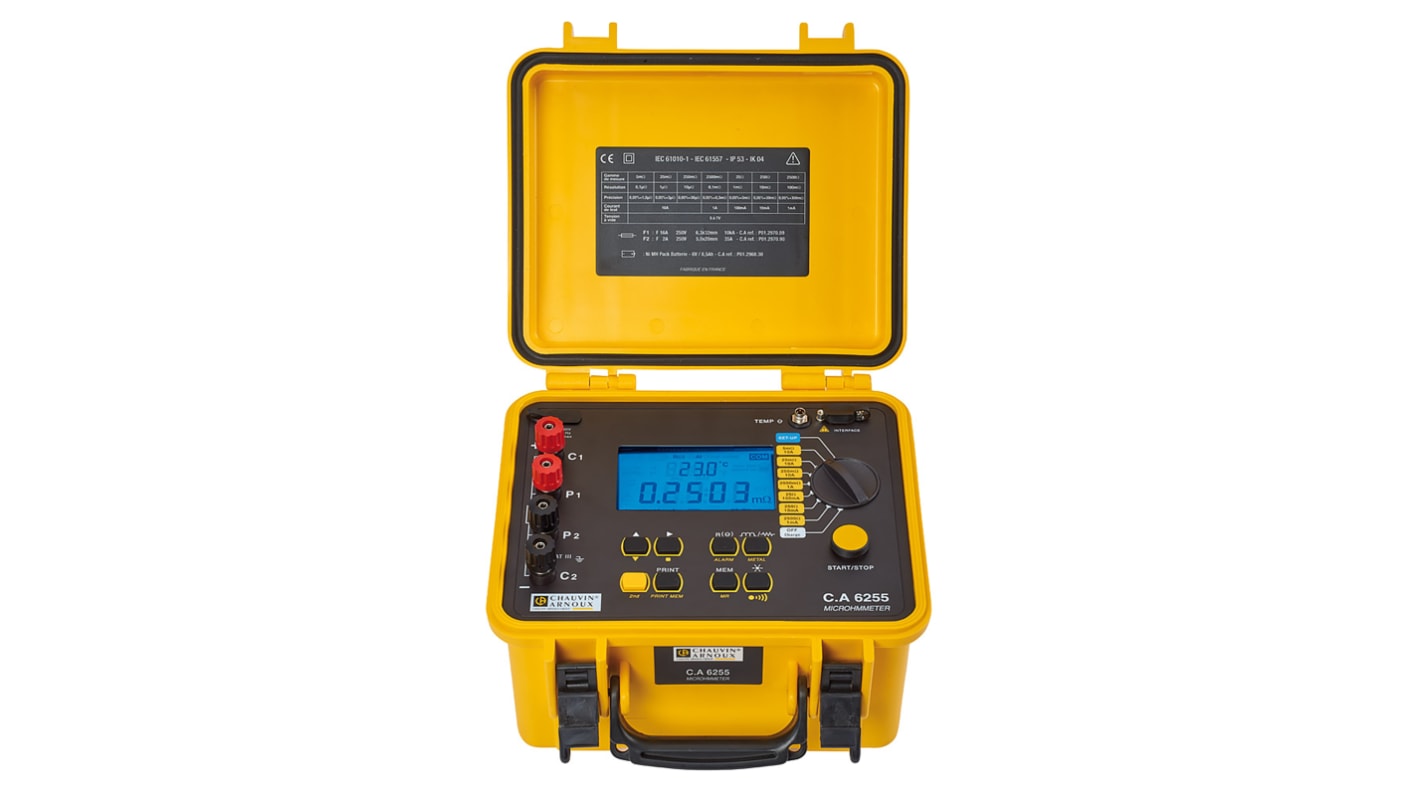

Chauvin Arnoux Digital Ohmmeter
The Chauvin Arnoux digital ohmmeter has seven measurements ranging from 5mohm to 2.500ohm. This ohmmeter is easy to use and carries out 4-wire measurements with a continuous or pulse current up to 10A. It carries out measurements in three modes like inductive, non-inductive and non-inductive with automatic trigger available depending on the application. This device has a programmable capacity for alarms and 1500 measurement values to be stored. It has a large backlit LCD display offering a wide range of symbols and indicators.
Features and Benefits
Automatic compensation of stray voltages
Automatic compensation of stray voltages at input terminals
Automatic discharge after test
Automatic switching of the backlighting to standby to save battery power
Calculation at reference temperature with Pt100 probe
Communication with a PC
Measurement up to 2.500ohm
Optimized current generator on inductive objects
Programmable alarms
Resolution is 0.1μohm
RS 232 interface to print the results on a serial printer or export them to a PC
Temperature compensation function for comparative results
Applications
Bonding measurements
Component measurements
Contact resistance measurements
Earth continuity measurements
Electric cable resistance measurements
Motor and transformer resistance measurements
Tests of mechanical links
Certifications
CE certified
IP53 rated
