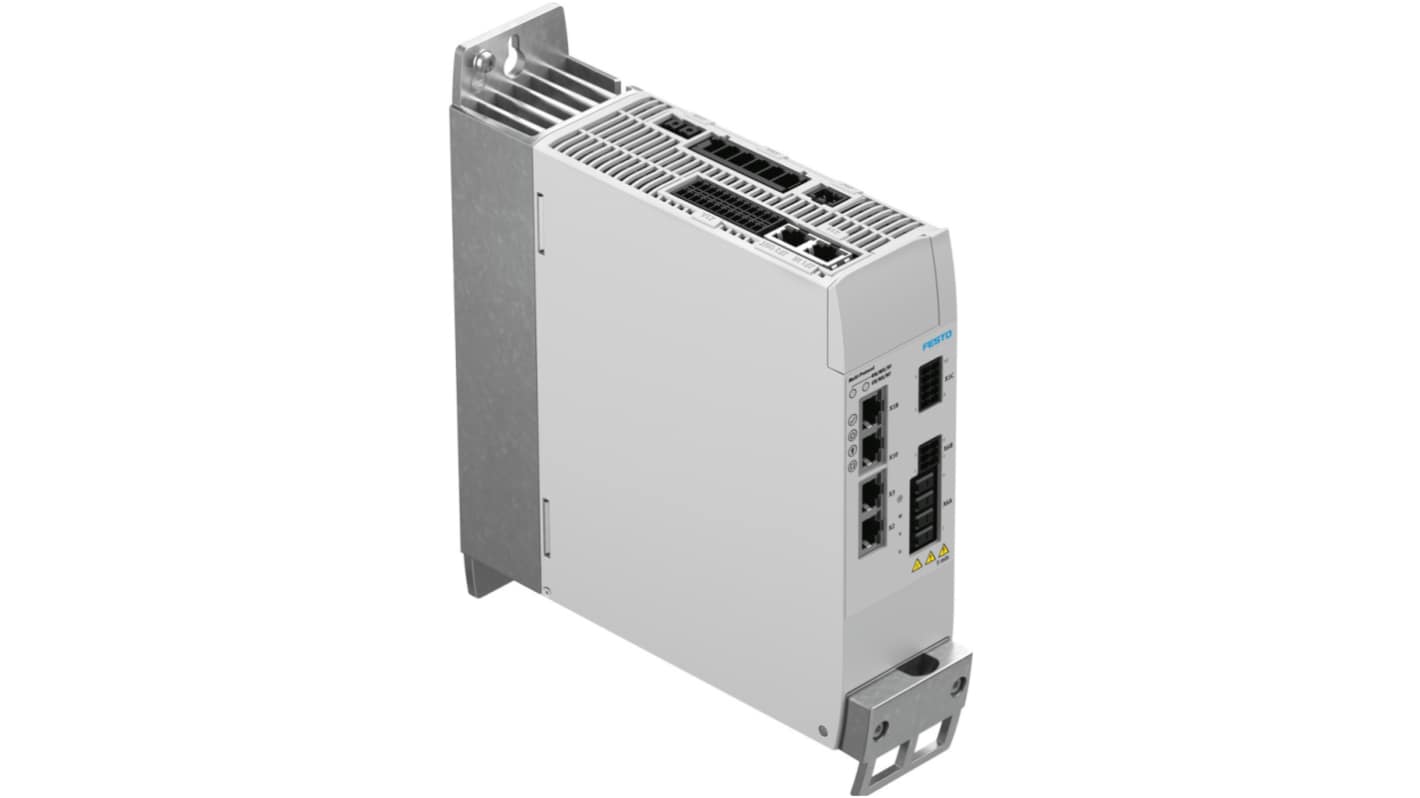

Festo 1200 W Servo Drive, 400 V ac, 3 Phase, 3 A, Current Controller, Positioning, Manual, Homing, Speed Controller

Voir la catégorie

Sous-total (1 unité)*

1 333,79 €

(TVA exclue)

1 613,89 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • 1 unité(s) prête(s) à être expédiée(s)
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 +1 333,79 €

*Prix donné à titre indicatif

N° de stock RS:
193-561
Référence fabricant:
CMMT-AS-C3-11A-P3-MP-S1
Fabricant:
Festo
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Festo

Number of Phases

3

Product Type

Servo Drive

Control Function

Current Controller, Positioning, Manual, Homing, Speed Controller

Output Voltage

400 V

Supply Voltage

400 V ac

Current Rating

3 A

Power Rating

1200W

IP Rating

IP20

Minimum Operating Temperature

0°C

Maximum Operating Temperature

50°C

Series

CMMT-AS

Standards/Approvals

RCM trademark, RoHS, EN 61800, CE, TÜV, EN 62061, EN 60204, EN 50581, cULus, UKCA

Pays d'origine :
DE

Festo Servo Drive, 3A Current Rating, 1.2kW Power Rating - CMMT-AS-C3-11A-P3-MP-S1, Numeric Part Number: 8143166


This servo drive provides precision control in industrial applications, effectively managing various motor functions and offering adaptability in automation and motion control tasks. With a 400V supply voltage, it enhances operational efficiency and system reliability while ensuring compliance with industry standards.

Features & Benefits


• Compact design facilitates easy mounting in confined spaces

• Broad compatibility with multiple control systems

• Extensive diagnostic capabilities for performance monitoring

Applications


• Employed in robotic systems for high precision positioning

• Utilised in CNC machines that require speed control

• Suitable for conveyor systems needing dependable motor control

What types of communication protocols are supported?


The drive supports multiple protocols including EtherCAT®, Modbus/TCP, and PROFINET for seamless integration into various systems.

How does the operating temperature affect performance?


The power rating of the device must be reduced by 3% for every degree Celsius above 40°C to maintain safe operation.

What safety features are implemented in the drive?


It includes Safe Brake Control and Safe Torque Off functionalities, achieving high safety integrity levels required for industrial applications.

Can this drive accommodate different types of motors?


Yes, it is compatible with various motor types such as synchronous and asynchronous motors, offering versatility for numerous applications.
