Festo 6000 W Servo Drive, 400 V ac, 3 Phase, 15 A, Speed Controller, Positioning, Current Controller, Homing, Manual

Voir la catégorie

Sous-total (1 unité)*

2 365,33 €

(TVA exclue)

2 862,05 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • 1 unité(s) prête(s) à être expédiée(s)
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 +2 365,33 €

*Prix donné à titre indicatif

N° de stock RS:
193-560
Référence fabricant:
CMMT-AS-C12-11A-P3-MP-S1
Fabricant:
Festo
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Festo

Product Type

Servo Drive

Number of Phases

3

Control Function

Speed Controller, Positioning, Current Controller, Homing, Manual

Supply Voltage

400 V ac

Output Voltage

400 V

Current Rating

15 A

Power Rating

6000W

IP Rating

IP20

Minimum Operating Temperature

0°C

Maximum Operating Temperature

50°C

Standards/Approvals

CE, EN 60204, EN 61800, cULus, TÜV, EN 50581, EN 62061, RoHS, UKCA, RCM trademark

Series

CMMT-AS

Pays d'origine :
DE

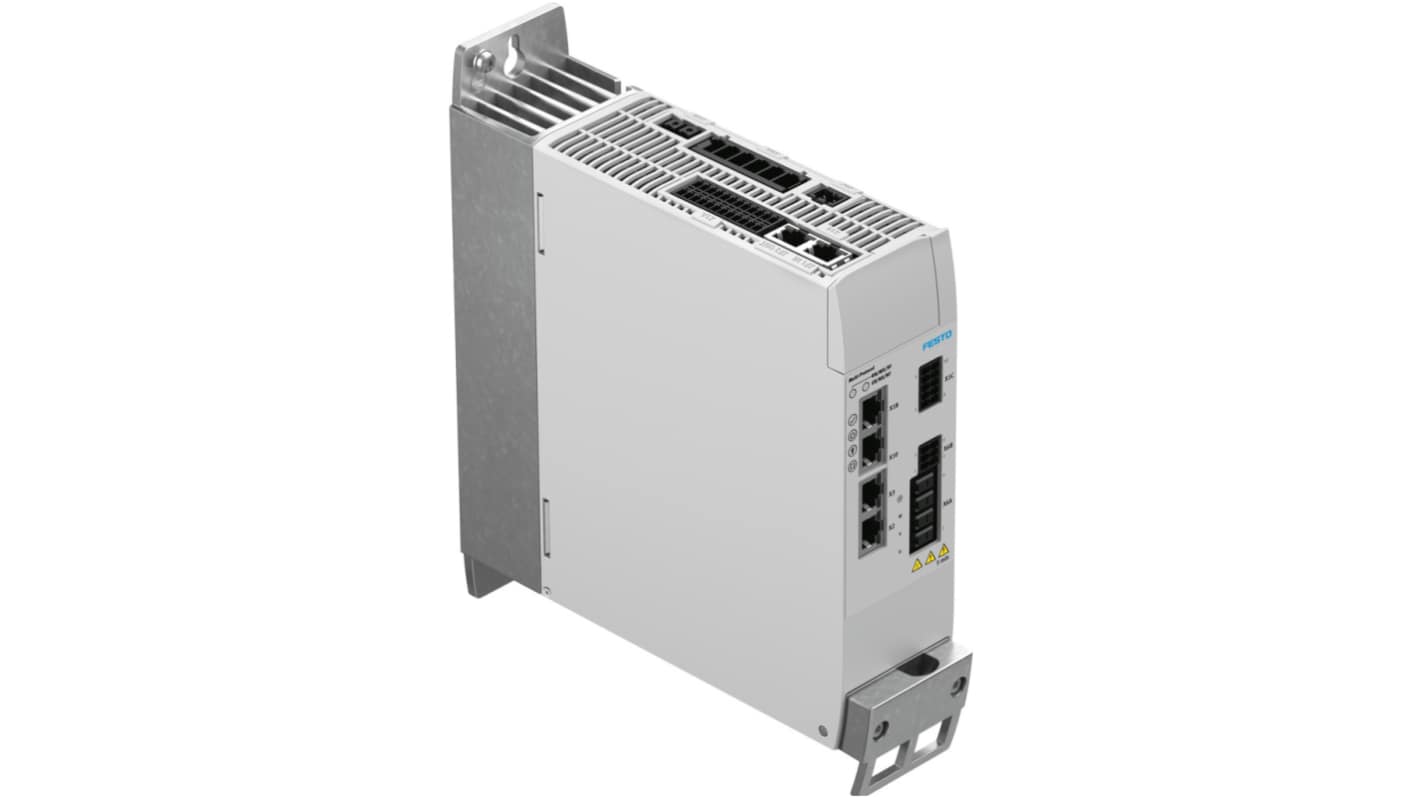

Festo Servo Drive, 15A Current Rating, 6kW Power Rating - CMMT-AS-C12-11A-P3-MP-S1, Numeric Part Number: 8143169


This servo drive is engineered for sophisticated automation tasks, providing precise control and speed in a range of applications. It operates efficiently in various environments and is essential for the electrical and mechanical industries. Its significant power rating and control capabilities enable the execution of complex tasks, making it a vital component in contemporary industrial applications.

Features & Benefits


• Compatibility with multiple communication protocols enhances flexibility

• Optional operator unit offers intuitive control features

• Compact and lightweight design ensures straightforward installation

Applications


• Ideal for tasks that require accurate positioning and speed management

• Suitable for automated assembly lines

• Effective for packaging machinery necessitating dependable motion control

• Utilised in robotics for enhanced movement precision

How does the temperature range impact operational efficiency?


The temperature range of 0°C to +50°C allows the drive to maintain effective performance in diverse conditions, minimising risks of overheating and failures.

What types of communication protocols are available?


The drive supports EtherCAT®, EtherNet/IP, PROFINET, and Modbus/TCP, enabling seamless integration with current systems for enhanced performance.

What power supply is needed for this product?


A 3-phase AC supply with a nominal voltage of 400V and a current rating of 15A is required for optimal functioning.

Is there a need for additional components for installation?


Based on the specific application, some configurations might necessitate an external braking resistor or logic power supply, which should be taken into account during setup.
