Festo 4000 W Servo Drive, 400 V ac, 3 Phase, 9 A, Homing, Positioning, Current Controller, Speed Controller, Manual

Voir la catégorie

Sous-total (1 unité)*

1 870,36 €

(TVA exclue)

2 263,14 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • Plus 1 unité(s) expédiée(s) à partir du 15 décembre 2025
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 +1 870,36 €

*Prix donné à titre indicatif

N° de stock RS:
193-555
Référence fabricant:
CMMT-AS-C7-11A-P3-MP-S1
Fabricant:
Festo
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Festo

Product Type

Servo Drive

Number of Phases

3

Control Function

Homing, Positioning, Current Controller, Speed Controller, Manual

Supply Voltage

400 V ac

Output Voltage

400 V

Current Rating

9 A

Power Rating

4000W

IP Rating

IP20

Minimum Operating Temperature

0°C

Maximum Operating Temperature

50°C

Series

CMMT-AS

Standards/Approvals

RoHS, cULus, CE, UKCA, EN 62061, EN 50581, EN 61800, EN 60204, TÜV, RCM trademark

Pays d'origine :
DE

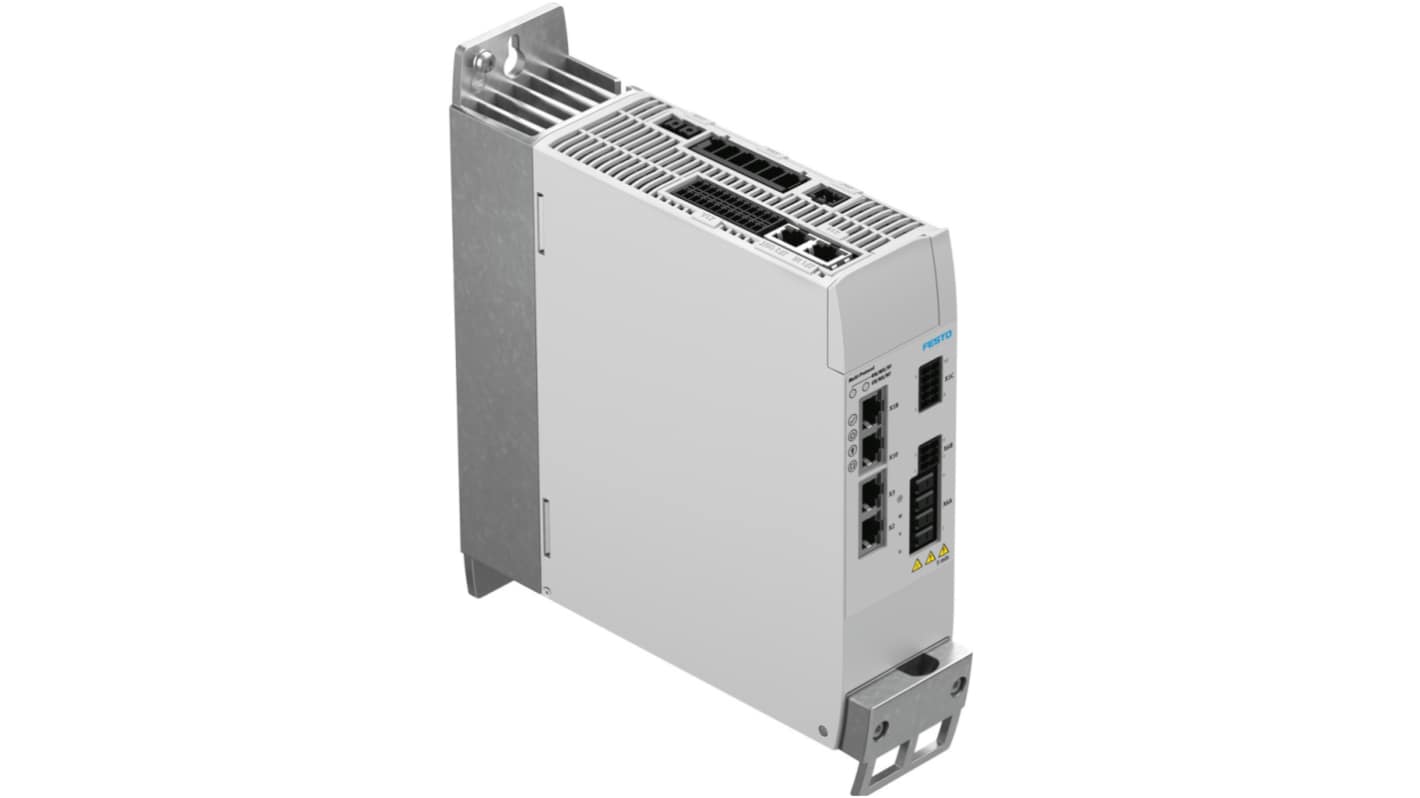

Festo Servo Drive, 9A Current Rating, 4kW Power Rating - CMMT-AS-C7-11A-P3-MP-S1, Numeric Part Number: 8143168


This servo drive is intended for automated control in a range of industrial applications, providing high-performance operation with capabilities such as current control, positioning, and speed control. With a power rating of 4 kW and a supply voltage of 400V AC, it offers a robust solution for various environments. It supports efficient movement control for 3-phase servo motors while adhering to industrial standards.

Features & Benefits


• Supports multiple communication protocols for flexible connectivity

• Functional at altitudes up to 2000m

• Compliant with safety standards to enhance operational security

Applications


• Suitable for precision positioning in manufacturing equipment

• Ideal for automating assembly lines with multi-axis control

• Used in robotics for speed regulation and precise movements

What type of motor is compatible with this drive?


It is designed for seamless operation with 3-phase servo motors for optimal performance and control.

How does the cooling method impact operation?


Effective free convection cooling is essential for maintaining consistent performance across varying ambient temperatures.

What are the implications of exceeding the maximum ambient temperature?


Exceeding 40°C necessitates a 3% power reduction for each additional degree, potentially affecting efficiency and operation.

What safety functions are integrated within the drive?


The drive includes functions such as Safe Brake Control and Safe Torque Off, ensuring secure operation in automated environments.
