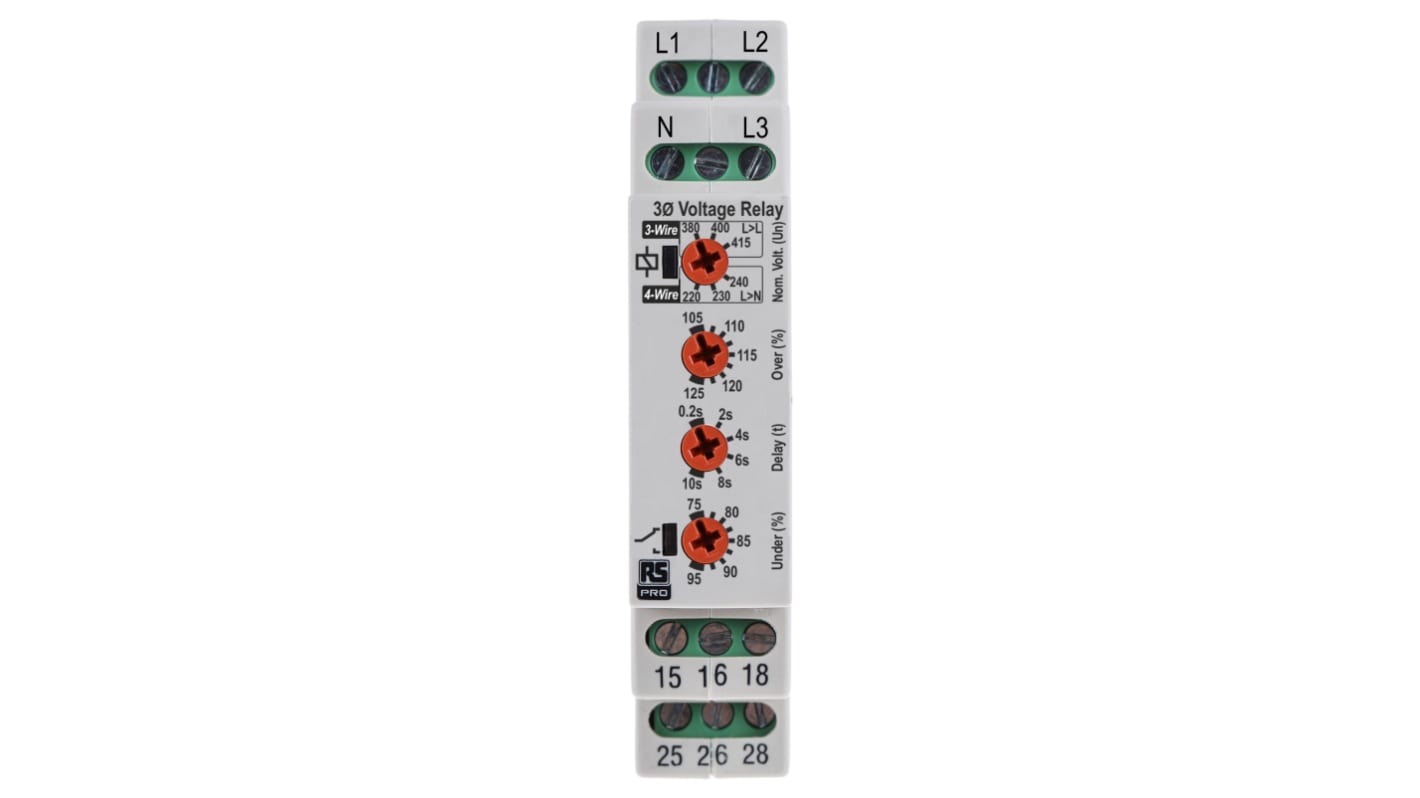

RS PRO 3-Phase Under/Overvoltage Relay with Phase Sequence

The RS PRO 3-Phase monitoring relay is used for connecting to a 3-wire or 4-wire supply. The relay is designed to monitor its own supply and in conjunction with an external contactor, disconnect the supply to the load/equipment in the event of a fault occurring.

How does it work?

For the output relay to energise, all phases (and neutral – if applicable) must be present, phase sequence correct, and measured phase asymmetry/unbalance within the set limits. If any of these conditions are not met, the relay (+ contactor) will de-energise, disconnect the supply, and thus protect the equipment.

Features and Benefits

Monitoring relay

Compact 17.5mm DIN rail housing

Microprocessor based

True R.M.S. monitoring measuring phase to phase (3-wire) or phase to neutral (4-wire) voltages

Selectable nominal voltages to suit most popular 3-wire or 4-wire supply voltages

Monitors own supply and detects if one or more phases exceed the set Under or Over voltage trip levels

Detects incorrect phase sequence, phase loss and neutral loss1

Adjustments for Under and Over voltage trip levels and Time delay

DPDT relay output 5A

Green LED indication for supply status and Red LED for relay status

Electrical Specification

Input: L1, L2, L3, N

Supply/monitoring voltage Un: There are 6 nominal voltages to choose from on this product

3-wire monitoring: 380, 400, 415V AC

4-wire monitoring: 220, 230, 240V AC

Frequency range: 48 – 63Hz

Supply variation: 243- 540V AC (L>L)

Overvoltage category: III (IEC 60664)

Rated impulse withstand voltage: 4kV (1.2/50 μS)

Power consumption (max.): 2.5VA

Output: 15, 16, 18 / 25, 26, 28

Relay configuration: DPDT Output rating: AC1 – 250V 5A, AC15 – 250V 2A, DC1 – 25V 5A

Electrical life: ≥ 150,000 ops at rated load

Dielectric voltage: 2kV AC (rms) IEC 60947-1

Rated impulse withstand voltage: 4kV (1.2/50μS) IEC 60664

Dimensions

Width:17.5 mm x Height: 89 mm x Depth: 66.5 mm

Note

Full specification and setup details can be found on the RS PRO datasheet.

Approvals

Declarations: CE, RoHS, and C-tick compliant

Standards Met EMC: Immunity EN 61000-6-2, Emissions: EN 61000-6-4

Attribut	Valeur
Monitoring Application	Phase, Voltage
Electrical Phase	3
Contact Configuration	DPDT
Voltage Sensitivity	Overvoltage, Undervoltage
Mounting Type	DIN Rail
Phase Sensitivity	Phase Failure, Phase Sequence
Terminal Type	Screw
Width	17.5mm
