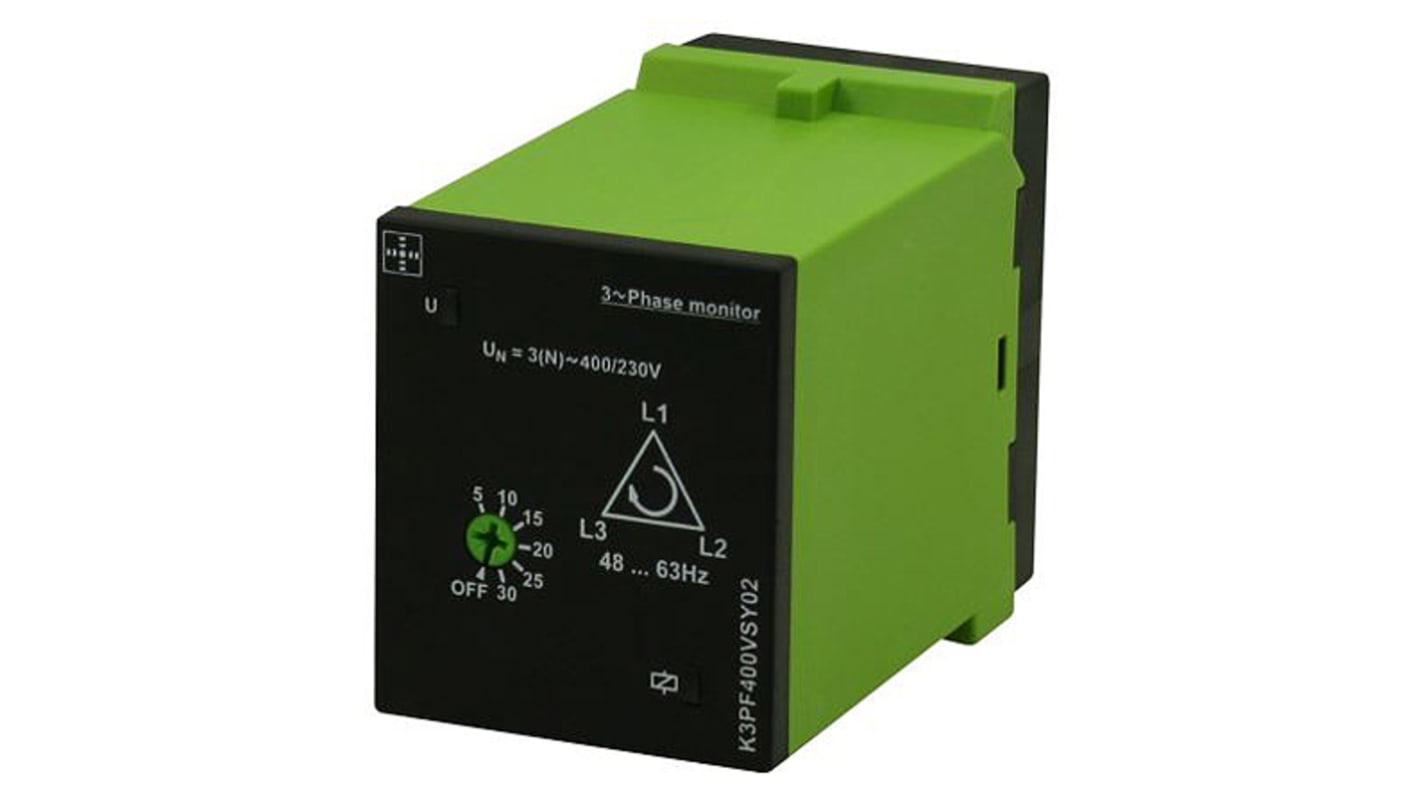

Tele Phase, Voltage Monitoring Relay, 3 Phase, DPDT, Maximum of 400 V, DIN Rail
- N° de stock RS:
- 123-9732
- Référence fabricant:
- K3PF400VSY02
- Fabricant:
- Tele
Offre groupée disponible
Sous-total (1 unité)*
124,73 €
(TVA exclue)
150,92 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Temporairement en rupture de stock
- Expédition à partir du 24 février 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 124,73 € |
| 5 - 9 | 120,99 € |
| 10 + | 117,24 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 123-9732
- Référence fabricant:
- K3PF400VSY02
- Fabricant:
- Tele
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Tele | |
| Monitoring Application | Phase, Voltage | |
| Electrical Phase | 3 | |
| Contact Configuration | DPDT | |
| Voltage Sensing Range | Maximum of 400 V | |
| Voltage Sensitivity | Self Powered | |
| Mounting Type | DIN Rail | |
| Phase Sensitivity | Phase Failure, Phase Sequence | |
| Time Delay | 100ms | |
| Series | KAPPA | |
| Length | 38mm | |
| Maximum Voltage Sensed | 400V | |
| Number of Poles | 11 | |
| Terminal Type | Screw | |
| Width | 67mm | |
| Maximum Operating Temperature | +55°C | |
| Minimum Operating Temperature | -25°C | |
| Height | 51mm | |
| Operating Temperature Range | +55°C | |
| Dimensions | 38 x 67 x 51mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Tele | ||
Monitoring Application Phase, Voltage | ||
Electrical Phase 3 | ||
Contact Configuration DPDT | ||
Voltage Sensing Range Maximum of 400 V | ||
Voltage Sensitivity Self Powered | ||
Mounting Type DIN Rail | ||
Phase Sensitivity Phase Failure, Phase Sequence | ||
Time Delay 100ms | ||
Series KAPPA | ||
Length 38mm | ||
Maximum Voltage Sensed 400V | ||
Number of Poles 11 | ||
Terminal Type Screw | ||
Width 67mm | ||
Maximum Operating Temperature +55°C | ||
Minimum Operating Temperature -25°C | ||
Height 51mm | ||
Operating Temperature Range +55°C | ||
Dimensions 38 x 67 x 51mm | ||
- Pays d'origine :
- AT
KAPPA Series Voltage Monitoring Relay
TELE KAPPA series AC and DC voltage monitoring relay. Multifunction monitoring in a slim easy to use package. The KAPPA series have a self-extinguishing plastic body with an IP rating of IP40.
DIN Rail mount
LED indicator
Screw terminals
2 change over contact
Multifunction
LED indicator
Screw terminals
2 change over contact
Multifunction
Telecontrol KAPPA Monitoring Relays
