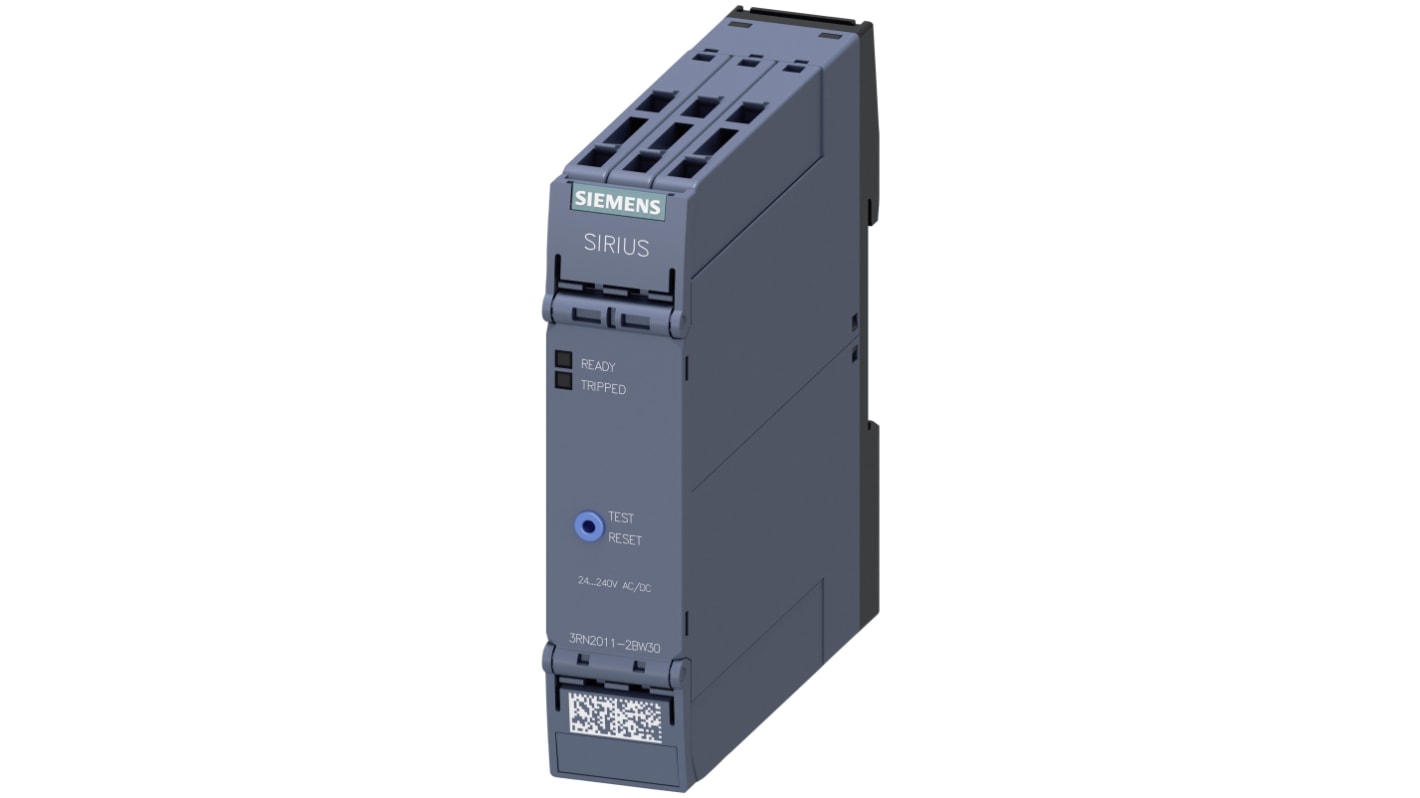

Name: Siemens Thermistor Motor Protection Monitoring Relay, DPDT, 24 → 240V ac/dc, DIN Rail
Brand: Siemens
SKU: 175-2284
Price: 173.54 EUR
Availability: BackOrder

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Siemens
	Monitoring Application	Thermistor motor temperature protection
	Voltage Sensing Range	24 → 240V ac/dc
	Contact Configuration	DPDT
	Voltage Sensitivity	Motor Voltage
	Mounting Type	DIN Rail
	Series	3RN2
	Hazardous Area Certification	ATEX
	Height	100mm
	Minimum Operating Temperature	-25°C
	Length	90mm
	Maximum Operating Temperature	+60°C
	Width	22.5mm
	Terminal Type	Cage Clamp
	Standards Met	CE
	Operating Temperature Range	-25 → +60°C
	Current Range	0.1 → 1A
	Dimensions	90 x 22.5 x 100mm

	Sélectionner tout
	Marque Siemens
	Monitoring Application Thermistor motor temperature protection
	Voltage Sensing Range 24 → 240V ac/dc
	Contact Configuration DPDT
	Voltage Sensitivity Motor Voltage
	Mounting Type DIN Rail
	Series 3RN2
	Hazardous Area Certification ATEX
	Height 100mm
	Minimum Operating Temperature -25°C
	Length 90mm
	Maximum Operating Temperature +60°C
	Width 22.5mm
	Terminal Type Cage Clamp
	Standards Met CE
	Operating Temperature Range -25 → +60°C
	Current Range 0.1 → 1A
	Dimensions 90 x 22.5 x 100mm

Pays d'origine :: DE

Siemens Monitoring Relay, DPDT Contact Configuration, Thermistor Motor Temperature Protection Monitoring - 3RN2011-2BW30

This monitoring relay operates as a thermistor motor temperature protection device, providing reliable functionality in a compact 90x22.5x100mm enclosure. It is suitable for DIN rail mounting and features dual change-over contacts for greater operational flexibility. The relay accommodates a current range of 0.1 to 1A and functions effectively in temperatures from -25 to +60°C, making it ideal for diverse industrial applications.

Features & Benefits

• Dual contact configuration enables versatile switching options
• ATEX certification confirms applicability in hazardous environments
• Built-in short circuit and wire break monitoring enhances safety
• LED display shows operational status for easy reference
• Spring terminals ensure simple and secure wiring

Applications

• Used for thermistor motor protection
• Effective in monitoring temperatures within industrial machinery
• Integrated into systems requiring current monitoring
• Suitable for environments with explosive gases or dust

Can it operate in extreme temperatures?

Yes, it functions within the range of -25°C to +60°C.

Will it provide visual status indicators?

Yes, it includes LED indicators for status monitoring.

Is it easy to install on a DIN rail?

Yes, it is designed for straightforward DIN rail mounting.

Can it withstand electrical surges?

Yes, it meets surge voltage resistance standards of 4kV.

Siemens Thermistor Motor Protection Monitoring Relay, DPDT, 24 → 240V ac/dc, DIN Rail
