Siemens Monitoring Relay, DIN Rail, 0V ac 0 V ac
- N° de stock RS:
- 175-2297
- Référence fabricant:
- 3RN2023-1DW30
- Fabricant:
- Siemens
Sous-total (1 unité)*
381,78 €
(TVA exclue)
461,95 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 3 unité(s) prête(s) à être expédiée(s)
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 381,78 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 175-2297
- Référence fabricant:
- 3RN2023-1DW30
- Fabricant:
- Siemens
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Siemens | |
| Product Type | Monitoring Relay | |
| Mount Type | DIN Rail | |
| Power Consumption | 1.8W | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Supply AC Voltage | 0V ac | |
| Minimum Operating Temperature | 60°C | |
| Supply DC Voltage | 0 V ac | |
| Contact Current | 5A | |
| Maximum Operating Temperature | -25°C | |
| Standards/Approvals | CE | |
| Width | 22.5mm | |
| Series | 3RN2 | |
| Length | 90mm | |
| Height | 100mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Siemens | ||
Product Type Monitoring Relay | ||
Mount Type DIN Rail | ||
Power Consumption 1.8W | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Supply AC Voltage 0V ac | ||
Minimum Operating Temperature 60°C | ||
Supply DC Voltage 0 V ac | ||
Contact Current 5A | ||
Maximum Operating Temperature -25°C | ||
Standards/Approvals CE | ||
Width 22.5mm | ||
Series 3RN2 | ||
Length 90mm | ||
Height 100mm | ||
- Pays d'origine :
- DE

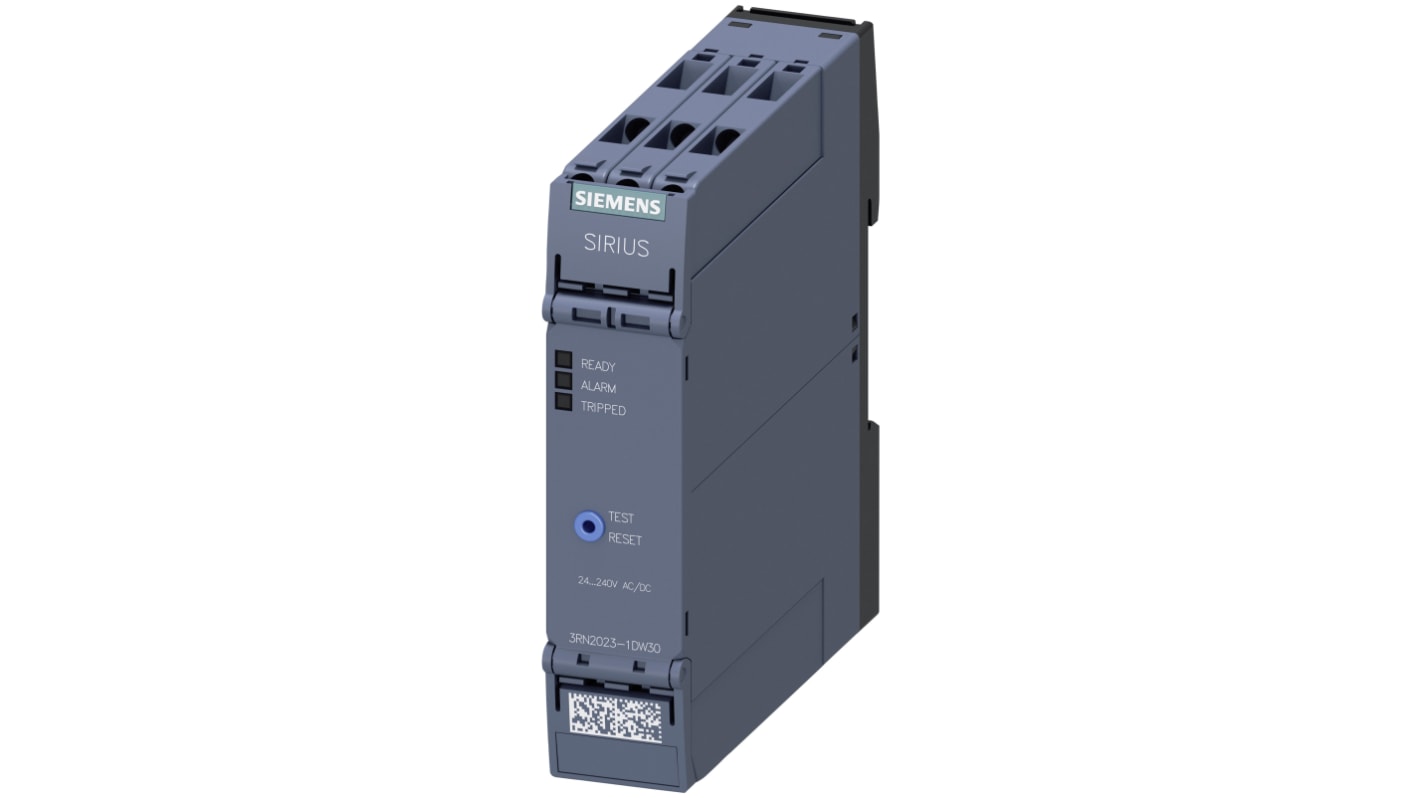

Siemens Monitoring Relay, SPDT/SPST Contact Configuration, Thermistor Motor Temperature Protection Monitoring - 3RN2023-1DW30
This monitoring relay is intended for thermistor motor temperature protection, making it suitable for industrial applications. It features a compact DIN rail relay design, measuring 90x22.5x100mm, ideal for settings where effective temperature monitoring is essential.
Features & Benefits
• SPDT and SPST contact configurations provide versatility
• Manual, auto, and remote reset options enhance user control
• Provides wire break and short circuit monitoring
• Compatible with a current range of 0.1 to 1A
• Integrated LED indicators facilitate operational status checks
Applications
• Used for thermistor protection in industrial motors
• Suitable for with strict temperature control requirements
• Employed in environments needing explosion protection
• Appropriate for monitoring relays within electrical assemblies
Can it operate in extreme temperature conditions?
Yes, it functions within -25°C to +60°C.
Will it support both AC and DC supply voltages?
Yes, it accepts a supply voltage of 24V to 240V AC/DC.
Is it suitable for installation on a DIN rail?
Yes, it is specifically designed for DIN rail mounting.
Can the device detect circuit errors?
Yes, it features dynamic open-circuit detection for reliability.
What is the ambient humidity tolerance during operation?
It operates effectively with a maximum relative humidity of 70%.
