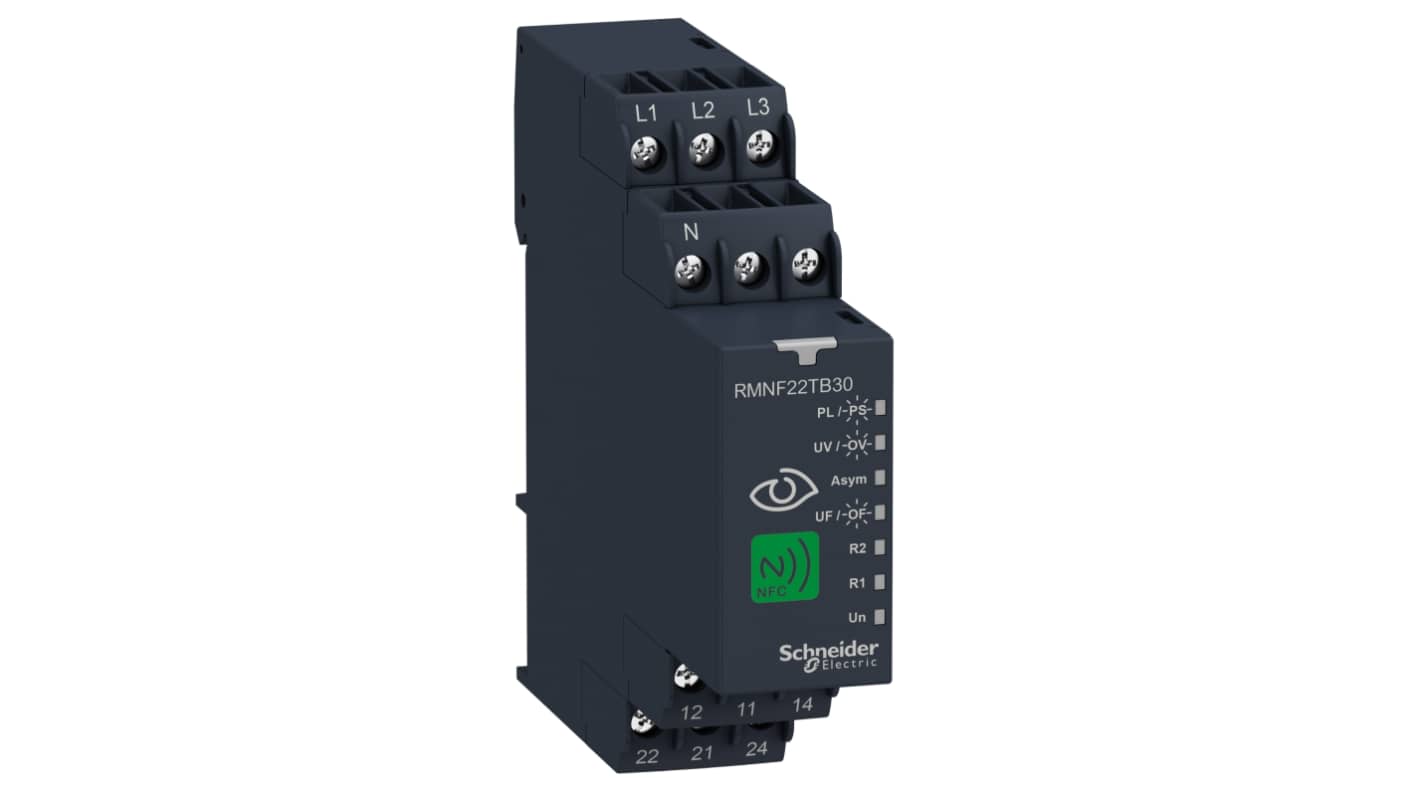

Schneider Electric Frequency, Phase, Voltage Monitoring Relay, 3 Phase, DPDT, DIN Rail

N° de stock RS:: 179-0019
Référence fabricant:: RMNF22TB30
Fabricant:: Schneider Electric

Schneider Electric Frequency, Phase, Voltage Monitoring Relay, 3 Phase, DPDT, DIN Rail

Offre groupée disponible

Price la pièce**

151,63 €

(TVA exclue)

183,47 €

(TVA incluse)

8 En stock, livraison sous 1 jour(s) (stock Europe)*

11 En stock, livraison sous 3 à 5 jours (stock Europe)

* Les dates de livraison peuvent varier selon la quantité choisie et l'adresse de livraison.

FRAIS de livraison offerts pour toute commande de plus de 75,00 €

Vérifier le stock en temps réel

Unité	Prix par unité
1 - 9	151,63 €
10 - 19	147,42 €
20 +	143,43 €

**Prix donné à titre indicatif

Better World

Notre gamme de produits Better World vous facilite l'accès à des produits plus durables et plus fiables. Cliquez ici pour en savoir plus.

N° de stock RS:: 179-0019
Référence fabricant:: RMNF22TB30
Fabricant:: Schneider Electric

Se connecter pour voir les modèles CAO

Schneider Electric Harmony Control Series Monitoring Relay, 99mm Length, DIN Rail Mount - RMNF22TB30

This monitoring relay enhances capabilities within electrical systems specifically for three-phase applications, providing essential oversight and control over frequency, voltage, and phase conditions. Its advanced functionalities contribute to maintaining system stability and performance.

Features & Benefits

• Monitors phase sequence and failure to ensure operational integrity
• Detects overvoltage and undervoltage for circuit protection
• Includes adjustable time delays for accurate operational control
• Comprehensive frequency monitoring helps prevent system issues
• User-friendly installation on DIN rail maximises space efficiency

Applications

• Utilised in automation systems for monitoring three-phase power supply
• Suitable for industrial machinery needing voltage stability
• Implemented in electrical panels for real-time safety monitoring
• Effective in HVAC systems to ensure optimal performance
• Used in generators for phase failure detection

What types of mobile devices are compatible with the relay?

The relay works with NFC-enabled mobile devices running Android operating systems version V4.4 and above for optimal functionality.

How do I configure the time delay settings?

Time delay settings can be adjusted from a minimum of 0.1 seconds to a maximum of 3600 seconds, allowing customisation based on application needs.

What are the environmental limits for operation?

It operates within ambient temperatures ranging from -20°C to +60°C, ensuring functionality across various industrial environments.

Can the relay handle different voltages?

Yes, it supports a supply voltage range of 208 to 480V AC line to line and 120 to 277V AC line to neutral, making it versatile for multiple applications.

How does the relay indicate a fault?

The device uses LED indicators to signal specific alarm conditions, such as phase failure, undervoltage, overvoltage, and frequency deviations, facilitating quick diagnosis.

Attribut	Valeur
Monitoring Application	Frequency, Phase, Voltage
Electrical Phase	3
Contact Configuration	DPDT
Voltage Sensitivity	Overvoltage, Undervoltage
Mounting Type	DIN Rail
Phase Sensitivity	Phase Asymmetry, Phase Failure
Time Delay	0.1 → 3600s
Series	Harmony Control
Frequency Sensitivity	Overfrequency, Underfrequency
Better World Product	Yes
Better World Verification	Green Premium
Length	99mm
Height	90mm
Operating Temperature Range	+60°C
Width	22.5mm
Standards Met	CSA, UL
Number of Poles	2
Terminal Type	Screw
Minimum Operating Temperature	-20°C
Dimensions	99 x 22.5 x 90mm
Maximum Operating Temperature	+60°C
