Phoenix Contact Temperature Monitoring Relay, SPDT, DIN Rail
- N° de stock RS:
- 171-7045
- Référence fabricant:
- 2906252
- Fabricant:
- Phoenix Contact
Sous-total (1 unité)*
75,64 €
(TVA exclue)
91,52 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 6 unité(s) prête(s) à être expédiée(s)
- Plus 4 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 75,64 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 171-7045
- Référence fabricant:
- 2906252
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Monitoring Application | Temperature | |
| Contact Configuration | SPDT | |
| Mounting Type | DIN Rail | |
| Time Delay | > 300ms | |
| Temperature Sensitivity | Winding Temperature | |
| Series | EMD-BL-PTC | |
| Dimensions | 65.5 x 17.5 x 89.5mm | |
| Length | 65.5mm | |
| Minimum Operating Temperature | -25°C | |
| Height | 89.5mm | |
| Operating Temperature Range | -25 → +55°C | |
| Maximum Operating Temperature | +55°C | |
| Width | 17.5mm | |
| Terminal Type | Screw | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Monitoring Application Temperature | ||
Contact Configuration SPDT | ||
Mounting Type DIN Rail | ||
Time Delay > 300ms | ||
Temperature Sensitivity Winding Temperature | ||
Series EMD-BL-PTC | ||
Dimensions 65.5 x 17.5 x 89.5mm | ||
Length 65.5mm | ||
Minimum Operating Temperature -25°C | ||
Height 89.5mm | ||
Operating Temperature Range -25 → +55°C | ||
Maximum Operating Temperature +55°C | ||
Width 17.5mm | ||
Terminal Type Screw | ||
- Pays d'origine :
- AT

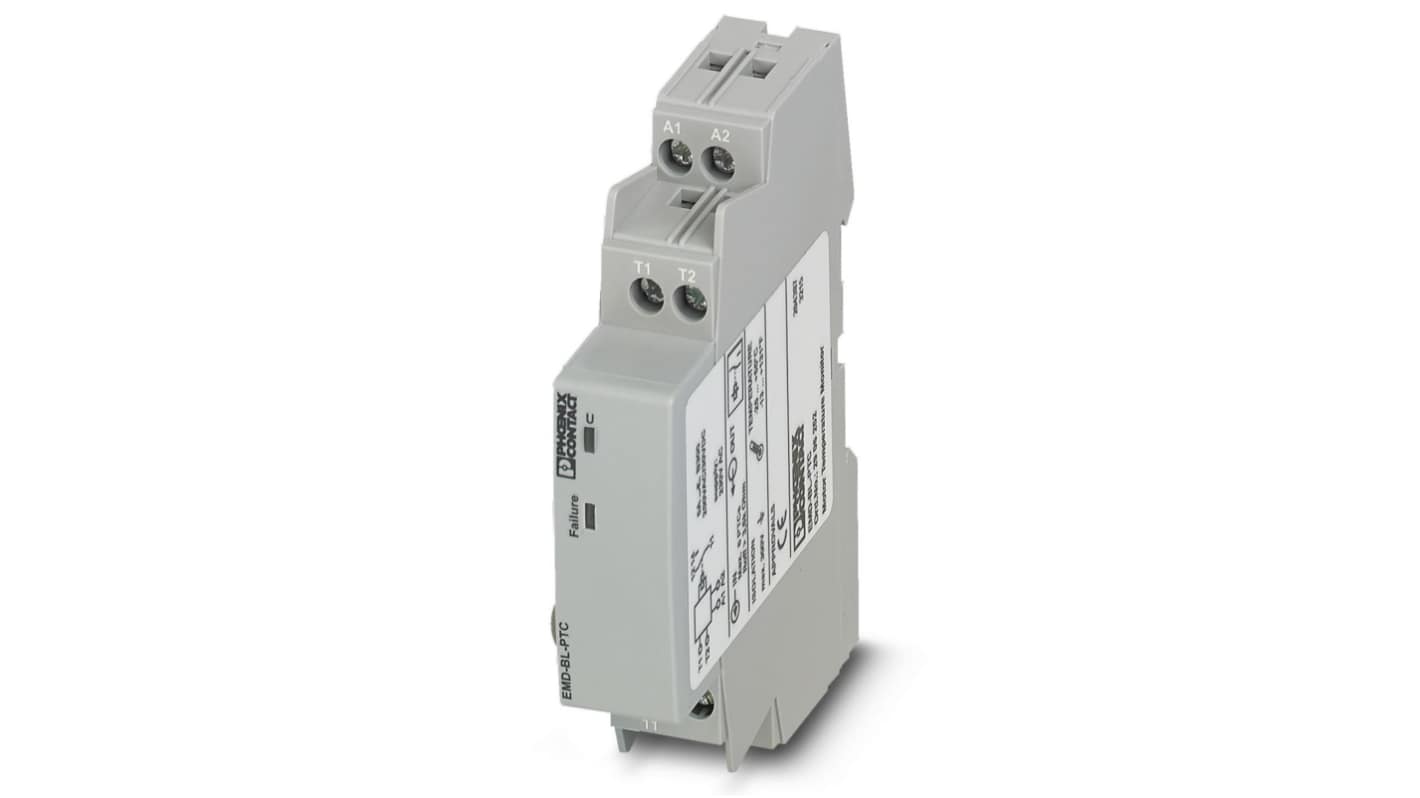

Phoenix Contact EMD-BL-PTC Series Monitoring Relay, SPDT Contact Configuration, Temperature Monitoring - 2906252
This monitoring relay facilitates temperature monitoring by accommodating up to six PTC sensors. Its compact dimensions of 65.5mm x 17.5mm x 89.5mm make it suitable for installation within control cabinets while ensuring efficiency in demanding industrial environments. The device features a robust design that enhances operational safety across various sectors.
Features & Benefits
• SPDT relay configuration suited for diverse applications
• Designed for DIN rail mounting, optimising installation space
• Wide operating temperature range from -25 to +55°C
• Response delay of under 100ms for prompt alerts
• Colour LEDs clearly indicate operational states and faults
Applications
• Continuous monitoring of motor windings
• Temperature control within industrial automation
• Implementation in building technology and chemical processes
• Utilised in systems requiring short-circuit monitoring
• Suitable for maintaining high safety standards
Can it operate in extreme temperatures?
Yes, it operates effectively within the range of -25°C to +55°C.
Will it alert if there is a fault?
Yes, it signals faults through LED indicators and contacts.
Is it suitable for DIN rail installation?
Yes, it is specifically designed for this type of mounting.
What is the protection rating of this monitoring relay?
It has a housing protection rating of IP40.
