Phoenix Contact Monitoring Relay, 1 Phase, SPDT, DIN Rail, 0A, 24 V dc, 230V ac
- N° de stock RS:
- 801-6227
- Référence fabricant:
- 2866019
- Fabricant:
- Phoenix Contact
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau disponible. RS a l'intention de le retirer de son assortiment sous peu.
Produit de remplacement
Ce produit n'est pas disponible actuellement. Voici notre produit de remplacement:
la pièce
235,87 €
(TVA exclue)
285,40 €
(TVA incluse)
- N° de stock RS:
- 801-6227
- Référence fabricant:
- 2866019
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Product Type | Monitoring Relay | |
| Electrical Phase | 1 | |
| Contact Configuration | SPDT | |
| Mount Type | DIN Rail | |
| Minimum Current Sensed | 0A | |
| Switching Voltage | 250V | |
| Power Consumption | 1.5W | |
| Current Sensitivity | Overcurrent | |
| Terminal Type | Screw | |
| IP Rating | IP40 | |
| Time Delay | 0.2 to 10 s | |
| Supply DC Voltage | 24 V dc | |
| Minimum Operating Temperature | -25°C | |
| Supply AC Voltage | 230V ac | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | CE, EN 50178, UL/C-UL listed UL 508 | |
| Length | 113mm | |
| Height | 90mm | |
| Series | EMD | |
| Width | 22.5mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Product Type Monitoring Relay | ||
Electrical Phase 1 | ||
Contact Configuration SPDT | ||
Mount Type DIN Rail | ||
Minimum Current Sensed 0A | ||
Switching Voltage 250V | ||
Power Consumption 1.5W | ||
Current Sensitivity Overcurrent | ||
Terminal Type Screw | ||
IP Rating IP40 | ||
Time Delay 0.2 to 10 s | ||
Supply DC Voltage 24 V dc | ||
Minimum Operating Temperature -25°C | ||
Supply AC Voltage 230V ac | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals CE, EN 50178, UL/C-UL listed UL 508 | ||
Length 113mm | ||
Height 90mm | ||
Series EMD | ||
Width 22.5mm | ||
- Pays d'origine :
- AT

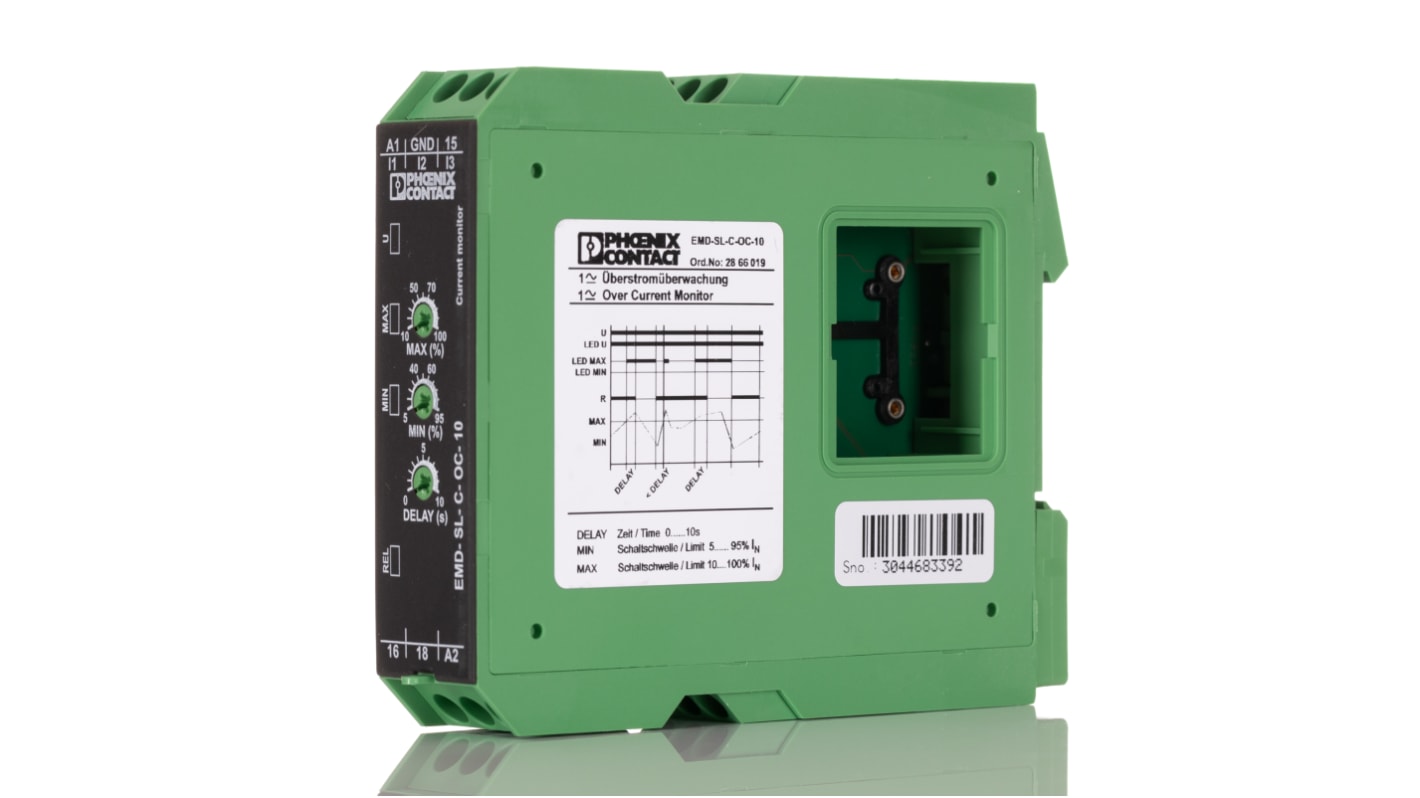

Phoenix Contact Monitoring Relay, 4kV Rated Surge Voltage, 300V Rated Insulation Voltage - EMD-SL-C-OC-10 - 2866019
Want to catch system issues in a flash? Use this monitoring relay from Phoenix Contact. It quickly detects undercurrents and overcurrents in single-phase networks. A handy front-facing potentiometer lets you set the threshold value, hysteresis and response delay to suit the needs of your setup. The relay logs any errors in your equipment and sends them directly to your control network via the floating contact. Alternatively, it can shut down that problem area in a jiffy to safeguard your machinery.
Thanks to its lengthy 20-million-year mechanical life, you can bank on this unit's long-term performance. To get it up and running, simply install an EMD power module. Choose between 24V (801-6277), 120V (801-6306) and 230V AC options (254-4814) to complete your setup.
Features & Benefits
• Mounts on a standard DIN rail for quick installation in your system
• Coloured LEDs indicate system status at a glance
• PA housing self-extinguishes in the event of an electrical fire to keep workers safe
• Slim dimensions of 22.5 (W) x 113 (L) x 90mm (H) take up minimal space
• Performs in temperatures between -25°C and +55°C so it's dependable in demanding environments
