4D Systems uLCD-144G2 TFT LCD Colour Display, 1.44in, 128 x 128pixels

Voir la catégorie
Indisponible
RS n'aura plus ce produit en stock.

Produit de remplacement

Ce produit n'est pas disponible actuellement. Voici notre produit de remplacement:

presentation
4D Systems SK-144G2 TFT LCD Colour Display, 1.44in, 128 x 128pixels
N° de stock RS
902-8587

la pièce

55,74 €

(TVA exclue)

67,45 €

(TVA incluse)

N° de stock RS:
902-8638
Référence fabricant:
uLCD-144G2
Fabricant:
4D Systems
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

4D Systems

Diagonal Display Size

1.44in

Interface Type

UART

Resolution

128 x 128pixels

Touch Screen

No

Viewing Area Dimensions

25.5 x 26.5mm

Touch Screen Type

None

Supply Voltage

5.5 V

Backlight Type

LED

Display Mode

Transmissive

AC or DC Input Voltage

dc

Dimensions

26.5 x 25.5 x 3mm

Display Matrix Technology

TFT

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

+60°C

Number of Colours

65,536

Operating Temperature Range

-10 → +60°C

Viewing Area Width

31mm

Power Dissipation

1W

Viewing Area Height

36.5mm

Width

25.5mm

Current Rating

70mA

Standards Met

CE, RoHS Compliant

Depth

3mm

Height

26.5mm

Response Time

240ms

Contrast Ratio

450:1

Pays d'origine :
PH

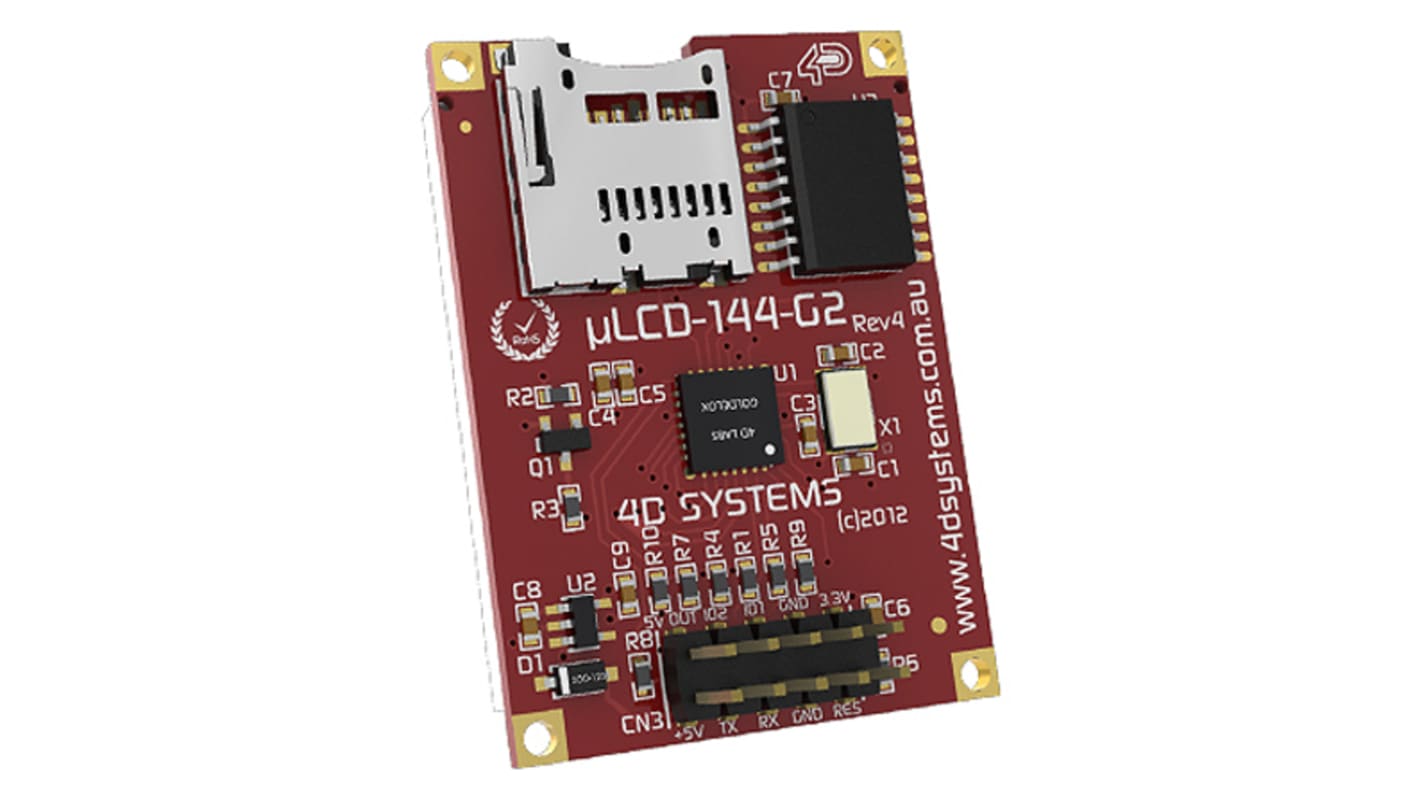

144G2 1.4 inch microLCD Display Module & Starter Kit with GOLDELOX processor, 4D Systems


The 144G2 1.44 inch micro LCD TFT Display Module from 4D Systems is available on its own (9028638) or as part of a starter kit (9028587).
The module benefits from an embedded GOLDELOX graphics controller that is driven by Extensible Virtual Engine (EVE). GOLDELOX contains lots of features that enable you to display full colour images, animations, icons and videos on your microLCD. You also have access to Workshop4 IDE for software development and coding using the 4DGL graphics language.

Features & Benefits of the 1.44" microLCD display
•128 x 128 resolution
•Up to 65k colours
•Dimensions: 31 mm x 36.2 mm x 14 mm
•Active viewing area: 25.5 mm x 26.5 mm
•2 GPIO ports for digital I/O, A/D converter, complex sound generation, RTTTL sound engine, joystick and Dallas 1-Wire devices
•10 KB of flash memory
•1 asynchronous hardware serial port
•microSD memory card adaptor
•Supports Windows fonts and characters
•Suitable for a 4 V to 5.5 V power supply
•4 mounting holes

Starter Kit Contents
•2 GB microSD card
•uUSB-PA5 programming adaptor
•150 mm 5 way female-to-female jumper cable
•5 way male-to-male adaptor
•Quick start user guide
