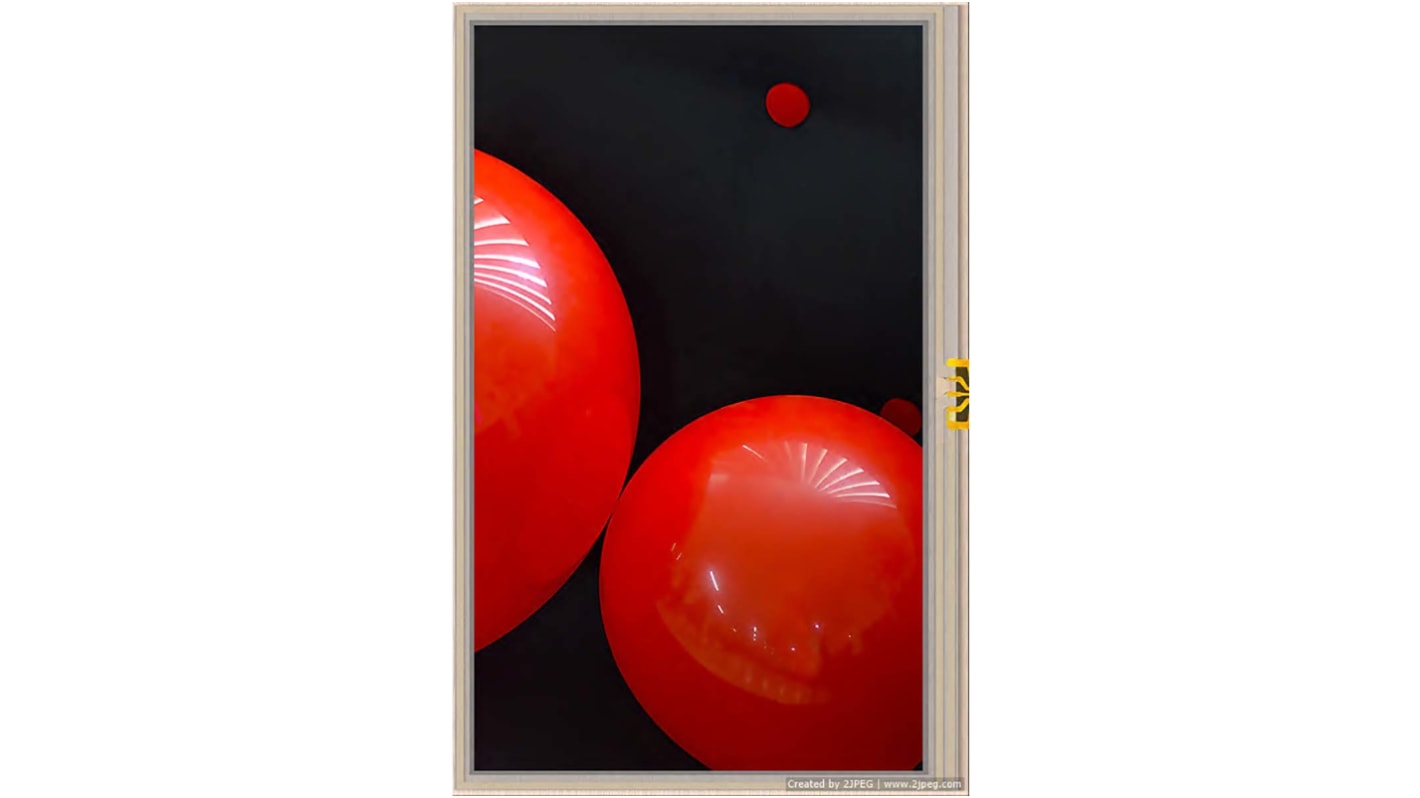

4D Systems 4DLCD-90800480-RTP LCD Colour Display Touch Screen, 9 in, 800 x 480 pixel
- N° de stock RS:
- 205-8712
- Référence fabricant:
- 4DLCD-90800480-RTP
- Fabricant:
- 4D Systems
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
166,44 €
(TVA exclue)
201,39 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- Expédition à partir du 23 octobre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 166,44 € |
| 10 - 24 | 153,30 € |
| 25 - 49 | 149,36 € |
| 50 + | 145,62 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 205-8712
- Référence fabricant:
- 4DLCD-90800480-RTP
- Fabricant:
- 4D Systems
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | 4D Systems | |
| Product Type | LCD Colour Display | |
| Diagonal Display Size | 9in | |
| Interface Type | TTL | |
| Current | 100mA | |
| Screen Resolution | 800 x 480 pixel | |
| Touch Screen | Yes | |
| Viewing Area Dimensions | 198 x 111.696 mm | |
| Touch Screen Type | Capacitive | |
| Backlight Type | 33 LEDs | |
| Minimum Supply Voltage | -0.3V | |
| Maximum Supply Voltage | 4.6V | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Depth | 111.696mm | |
| Standards/Approvals | RoHS | |
| Brightness | 500cd/m² | |
| Display Type | TFT | |
| Contrast Ratio | 500:1 | |
| Sélectionner tout | ||
|---|---|---|
Marque 4D Systems | ||
Product Type LCD Colour Display | ||
Diagonal Display Size 9in | ||
Interface Type TTL | ||
Current 100mA | ||
Screen Resolution 800 x 480 pixel | ||
Touch Screen Yes | ||
Viewing Area Dimensions 198 x 111.696 mm | ||
Touch Screen Type Capacitive | ||
Backlight Type 33 LEDs | ||
Minimum Supply Voltage -0.3V | ||
Maximum Supply Voltage 4.6V | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Depth 111.696mm | ||
Standards/Approvals RoHS | ||
Brightness 500cd/m² | ||
Display Type TFT | ||
Contrast Ratio 500:1 | ||
- Pays d'origine :
- AU
The 4D System 4DLCD-90800480 is a colour active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a colour TFT-LCD panel, driver IC, FPC and a back light unit and with/without a Resistive/Capacitive Touch Pan
The module display area contains 800 x 480 pixels.
This product accords with RoHS environmental criterion.
